Removal And Installation - Left

WARNING: This page is about a different variant/trim than selected.

NOTE:

If the oxygen sensor needs to be replaced, connect the diagnosis equipment to the vehicle diagnosis socket, go to "ECM" in the "Miscellaneous functions" menu and start the "Reset adaptive parameters" procedure.

REMOVAL

Disconnect and isolate the negative battery cable.
Remove the back half of the left front wheelhouse splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .
Remove the belly pan. Refer to BELLY PAN, ENGINE, REMOVAL AND INSTALLATION or BELLY PAN, REAR, REMOVAL AND INSTALLATION or BELLY PAN, SIDE, REMOVAL AND INSTALLATION .
Remove the cowl panel cover. Refer to COVER, COWL PANEL, REMOVAL AND INSTALLATION .
Remove the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

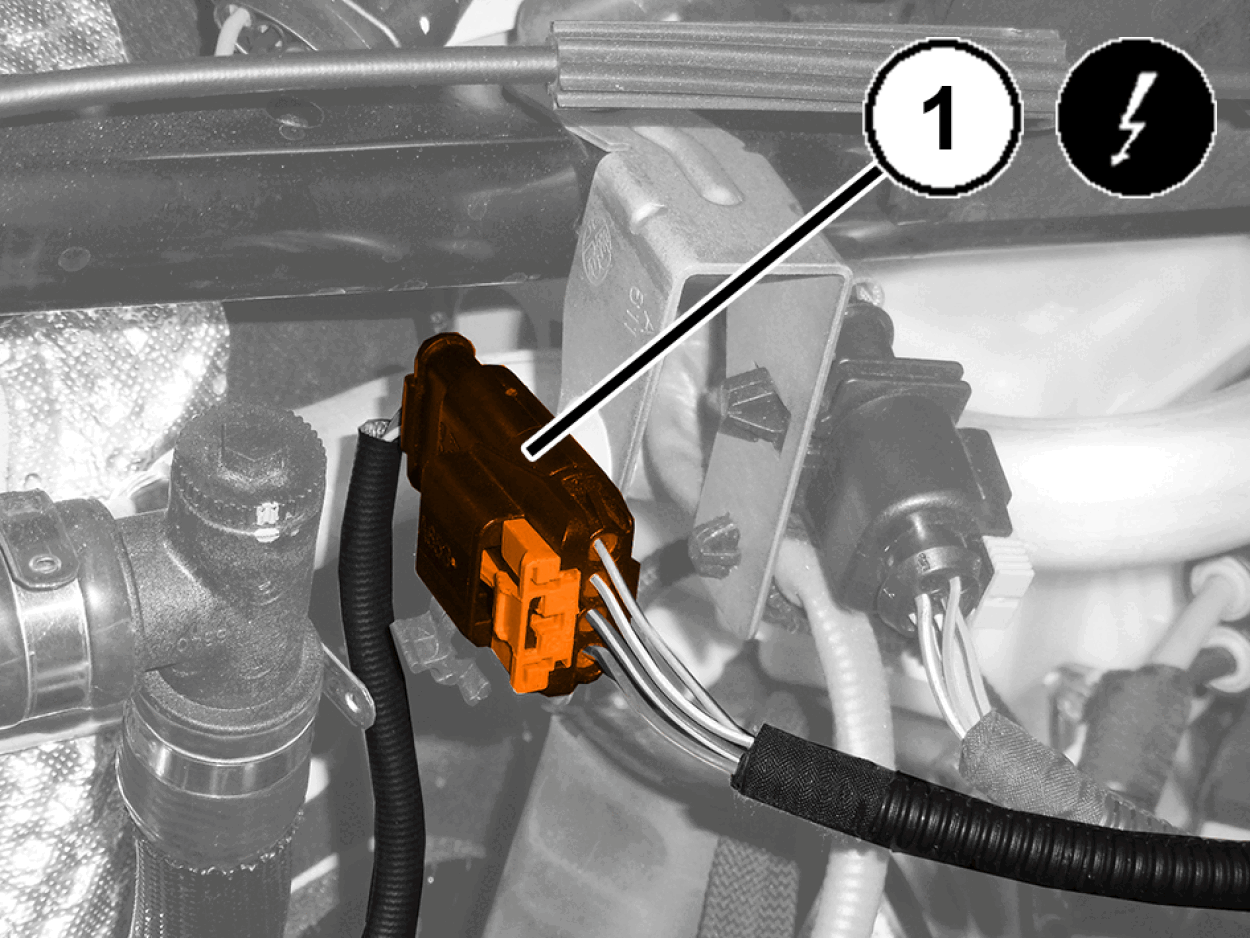

Disconnect the rear oxygen sensor wire harness connector (1).
Release the clips and remove the rear oxygen sensor wiring.

Courtesy of CHRYSLER GROUP, LLC

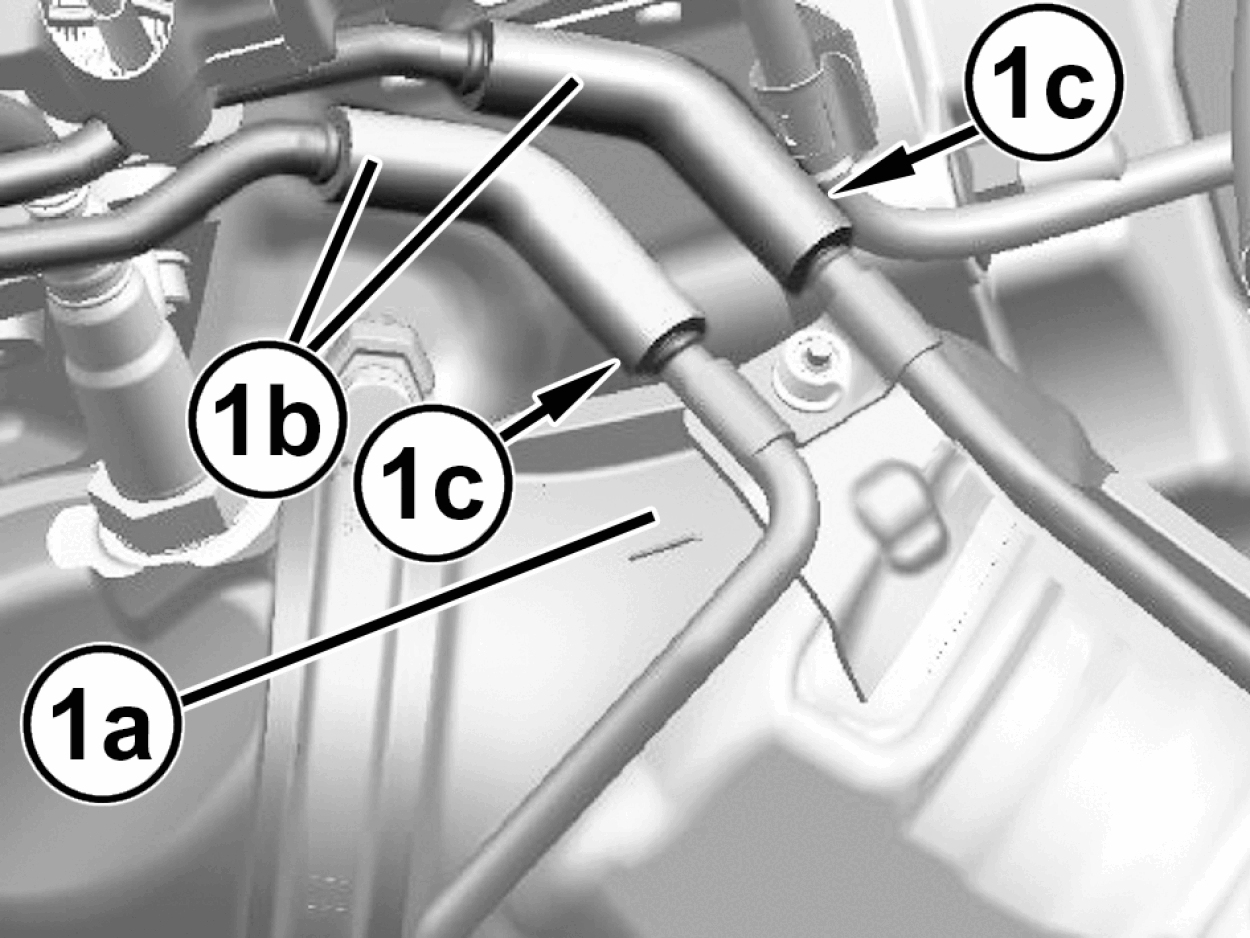

Working on the upper area of the catalytic converter (1a), remove the retaining clamps (1c) and then disconnect the pipe (1b) for the particulate filter pressure sensor.
NOTE:
The clamps must be replaced.

Courtesy of CHRYSLER GROUP, LLC

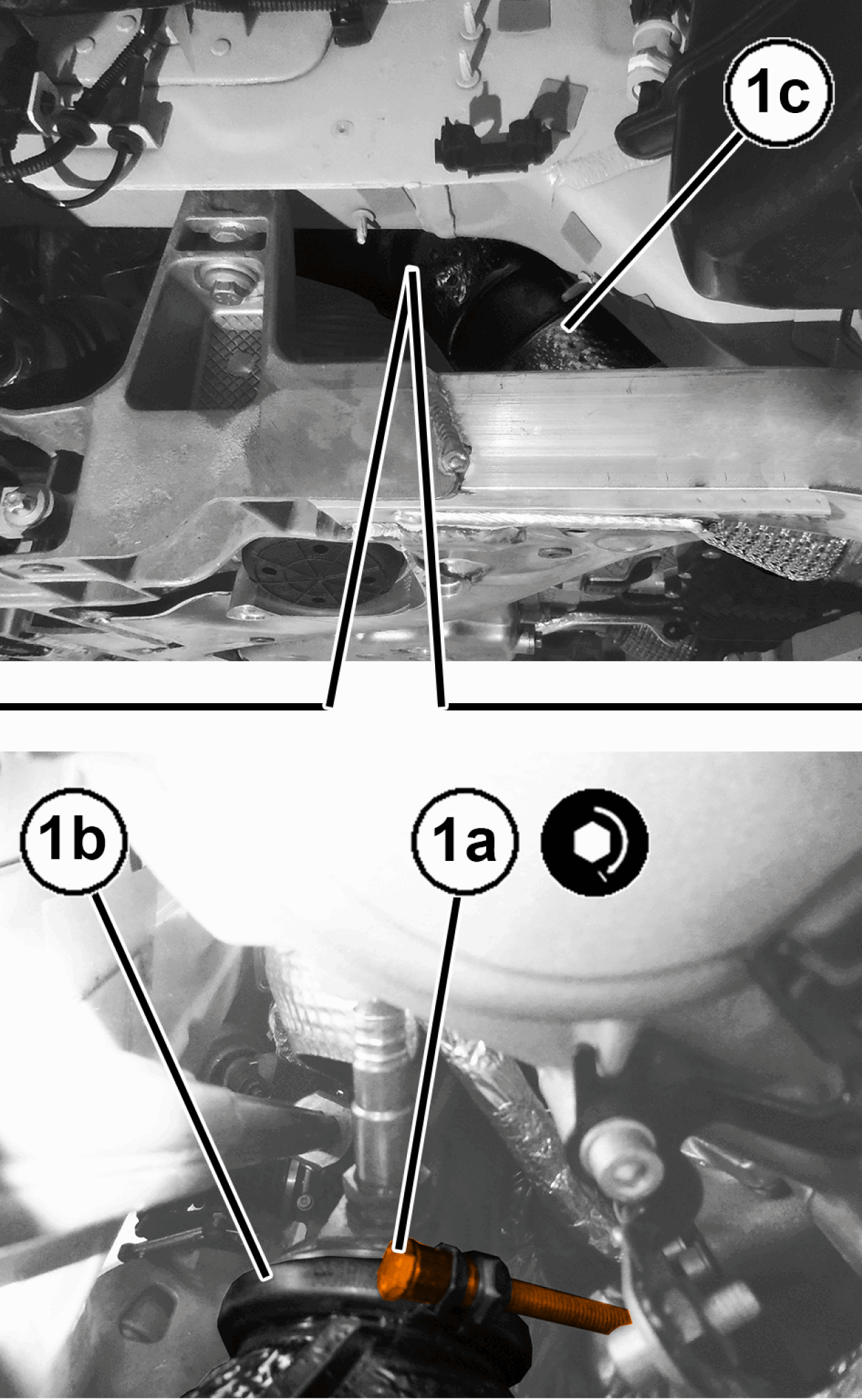

Remove the bolt (1a) and loosen the collar (1b) securing the catalytic converter (1c) to the turbocharger.
Remove the exhaust resonator. Refer to RESONATOR, EXHAUST, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

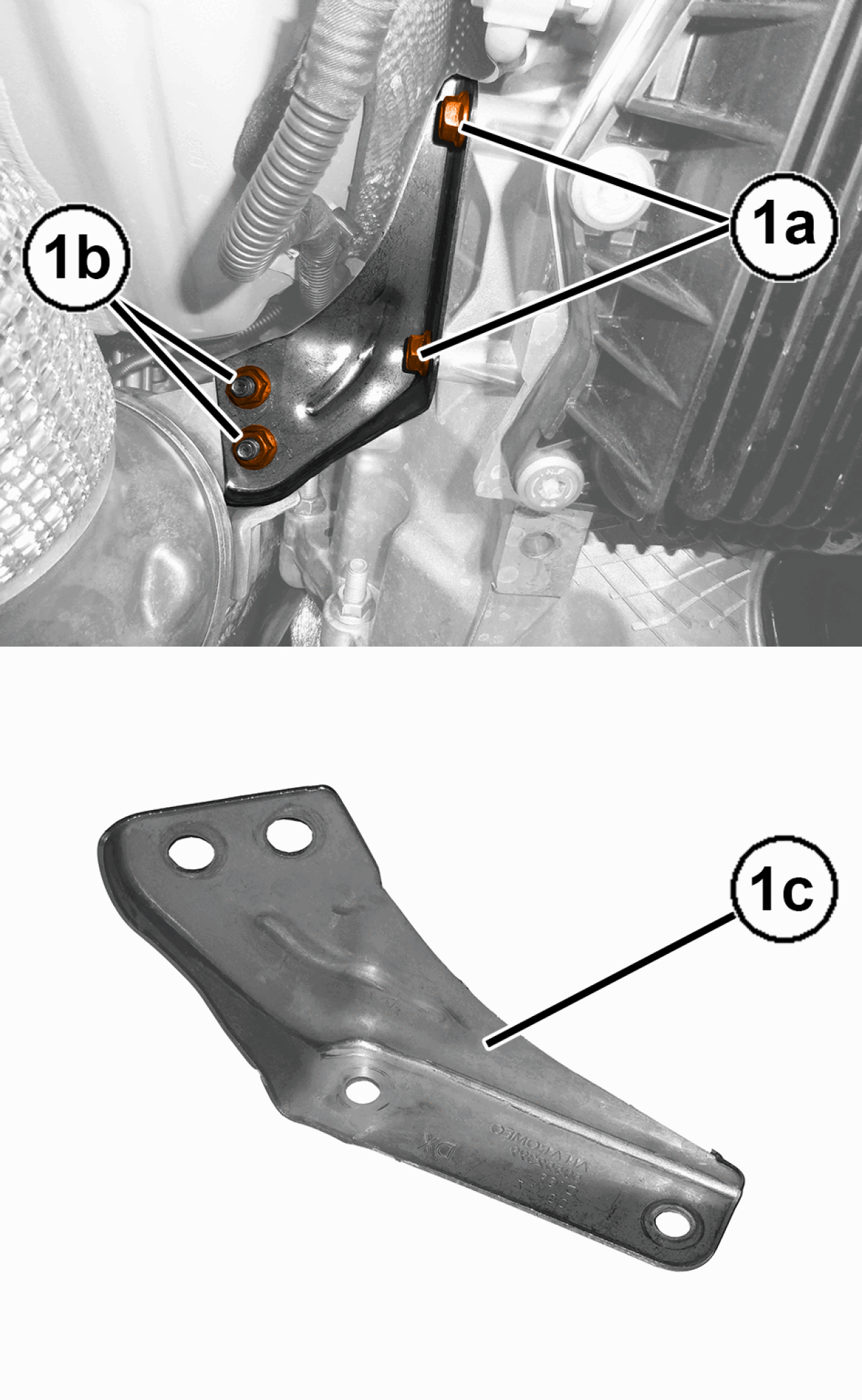

Remove the bolts (1a) and nuts (1b) securing the catalytic converter support bracket (1c) and remove the bracket.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Adequately protect the flex joint because excessive bending could cause it to break.

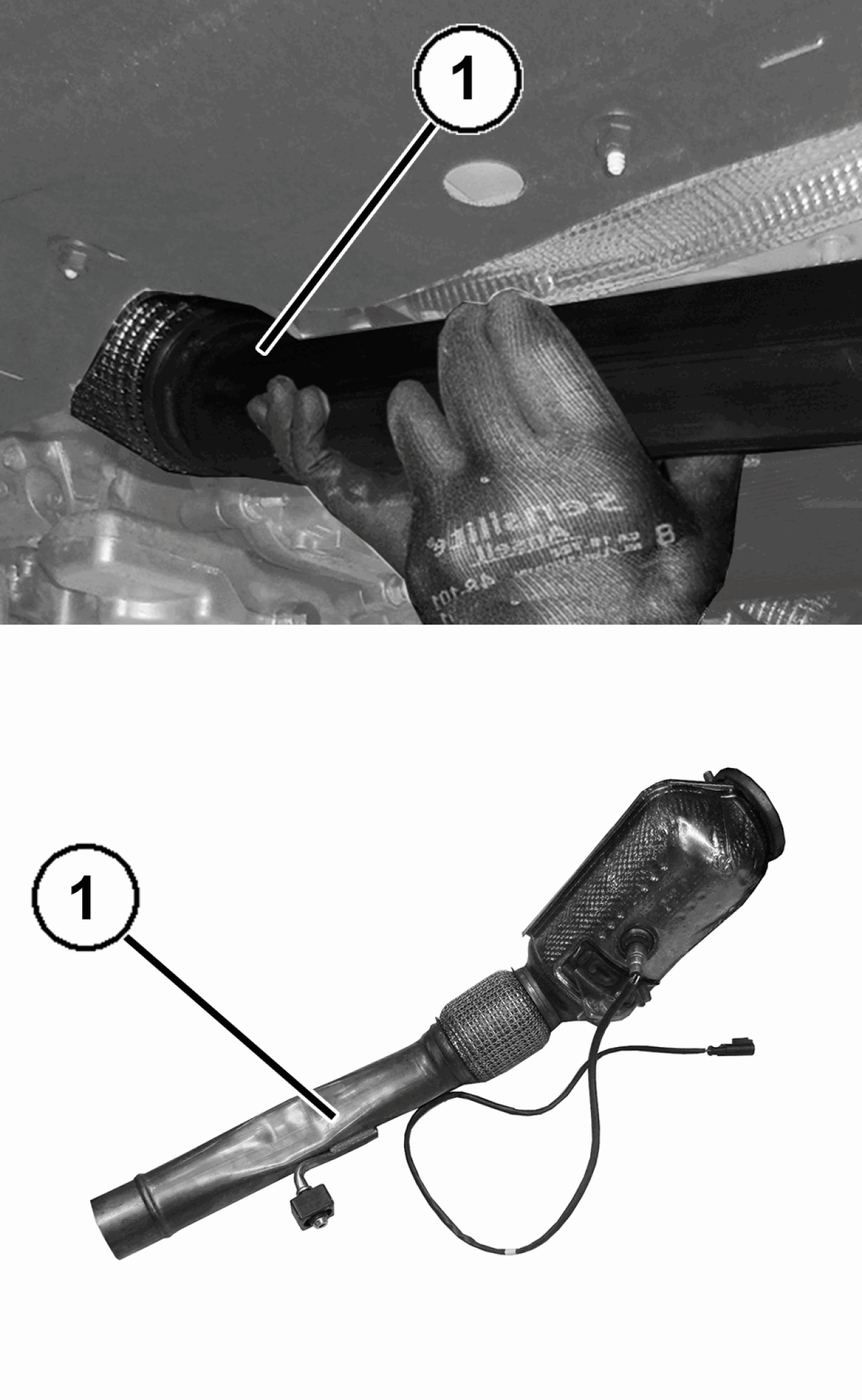

Remove the left catalytic converter (1) complete with rear oxygen sensor.

Courtesy of CHRYSLER GROUP, LLC

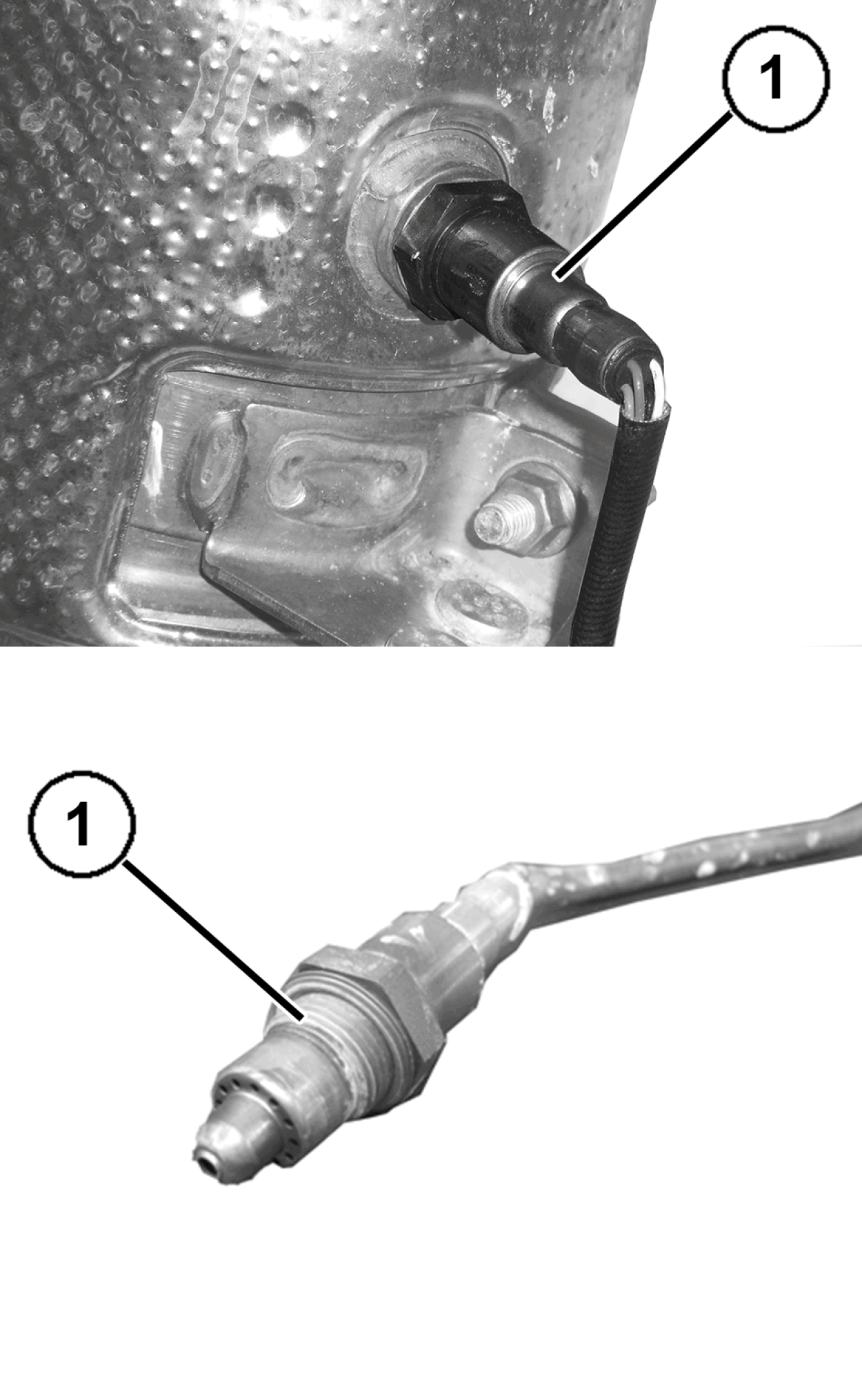

Remove the rear oxygen sensor (1) from the catalytic converter.

INSTALLATION

Install a NEW gasket.

Courtesy of CHRYSLER GROUP, LLC

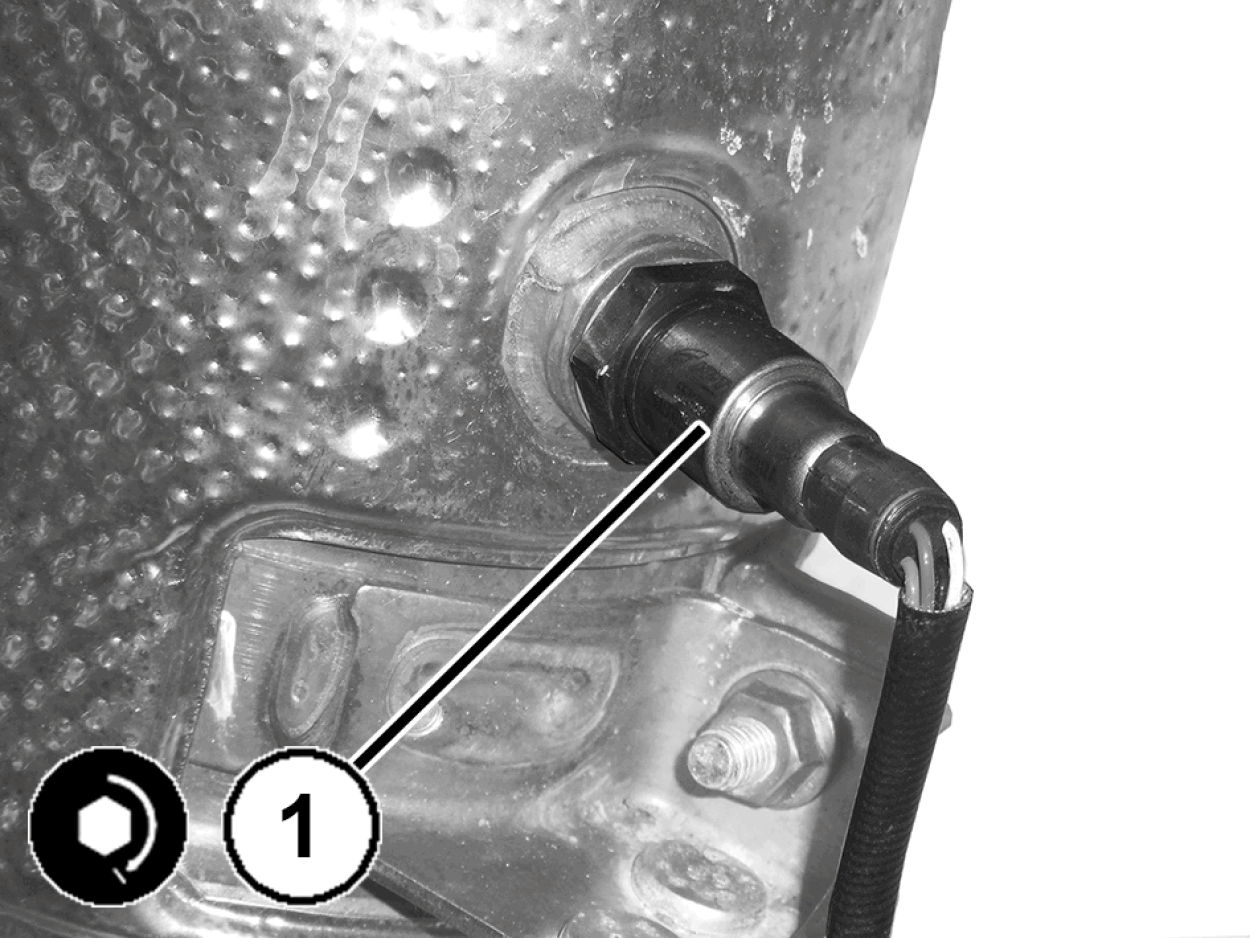

Install the rear oxygen sensor (1) and tighten it to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC
Install the catalytic converter (1).

Courtesy of CHRYSLER GROUP, LLC

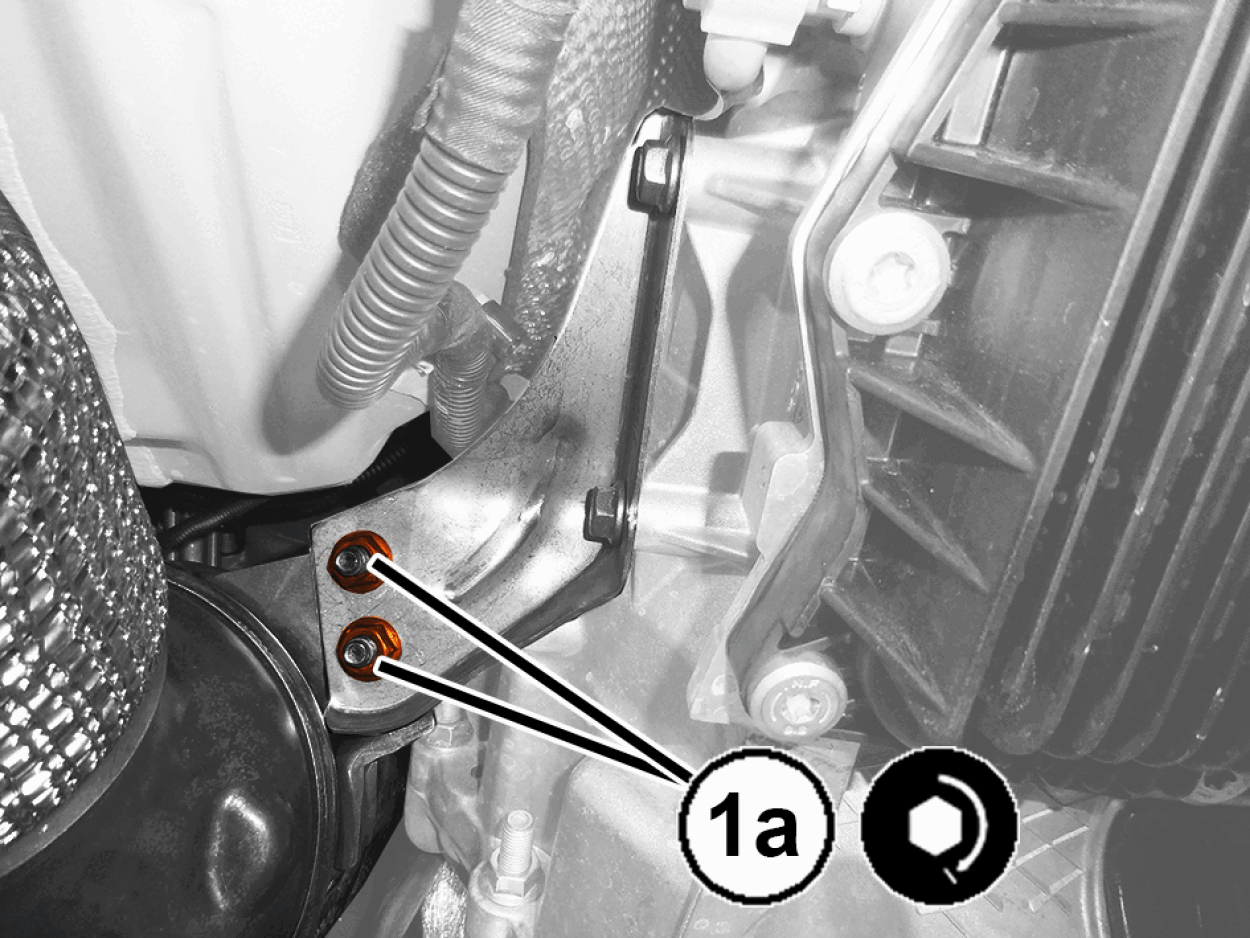

Tighten the catalytic converter bracket nuts (1a) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

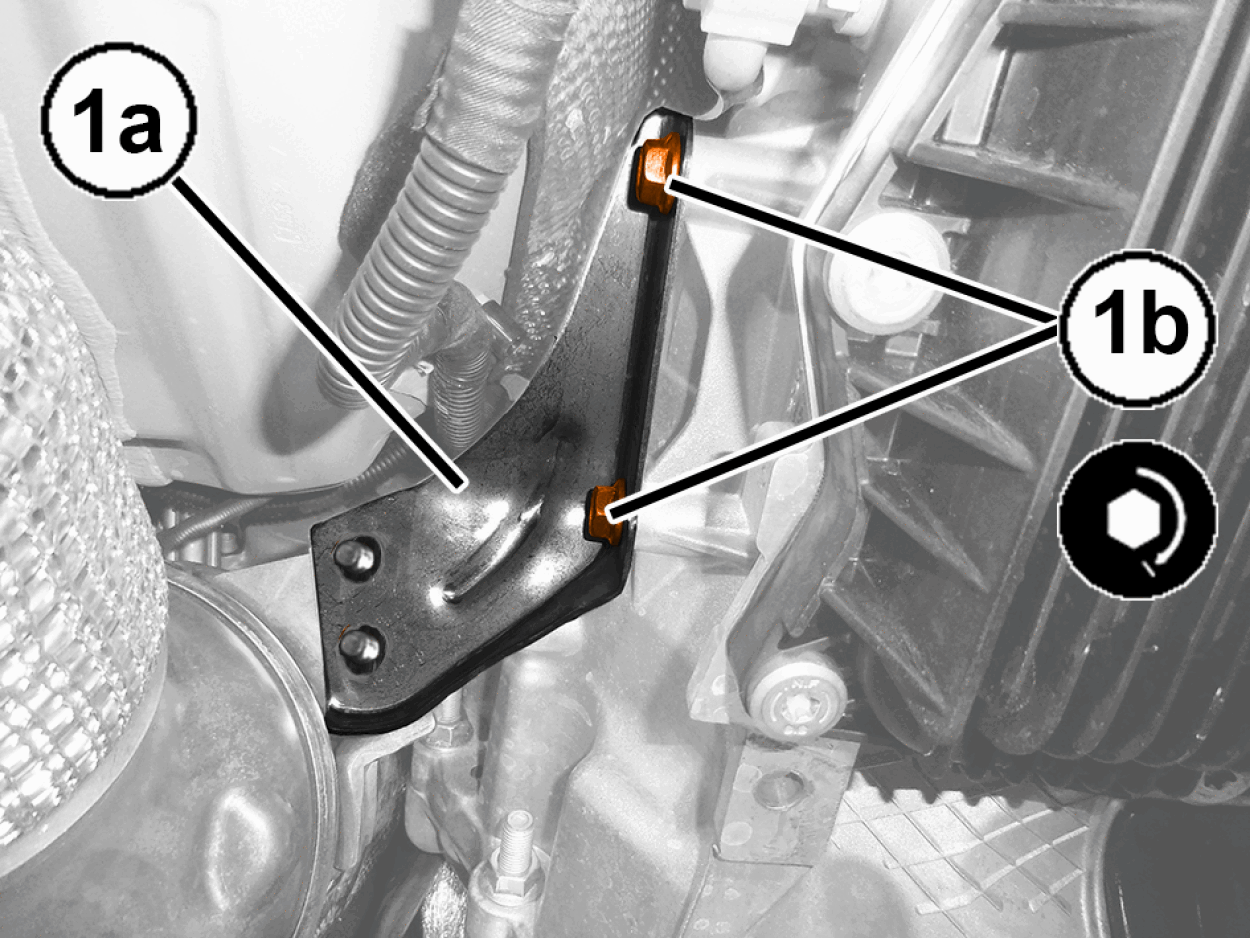

Tighten the catalytic converter bracket (1a) bolts (1b) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

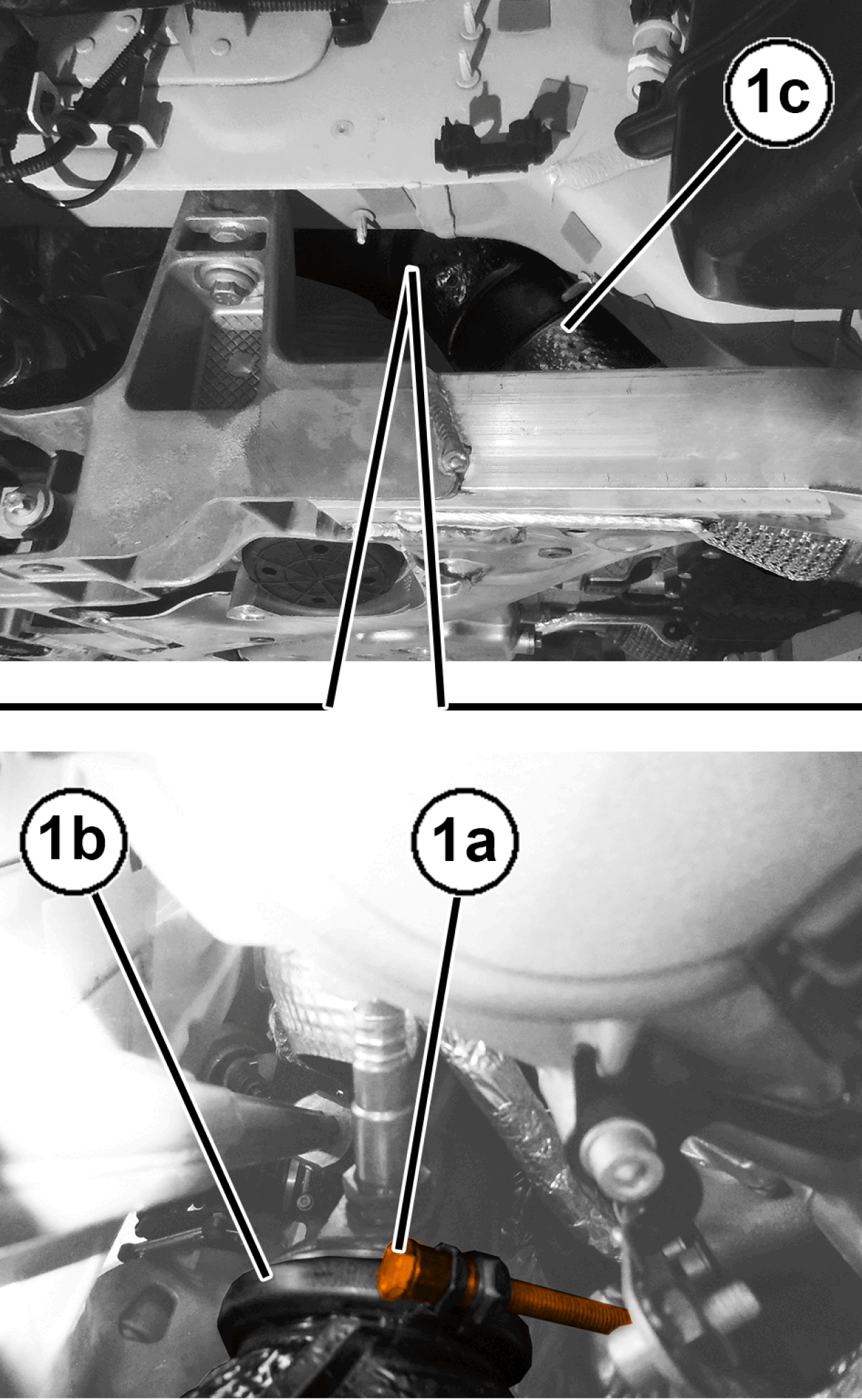

Tighten the exhaust pipe clamp (1b) bolt (1a) securing the catalytic convertor to the turbo, to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
Install the exhaust resonator. Refer to RESONATOR, EXHAUST, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC
Connect the oxygen sensor wire harness connector and engage the wiring in the retaining clips.

Courtesy of CHRYSLER GROUP, LLC
Working on the upper area of the catalytic converter (1a), connect the pipe (1b) for the particulate filter pressure sensor and then secure the clamps (1c).
Install the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
Install the cowl panel cover. Refer to COVER, COWL PANEL, REMOVAL AND INSTALLATION .
Install the belly pan. Refer to BELLY PAN, ENGINE, REMOVAL AND INSTALLATION or BELLY PAN, REAR, REMOVAL AND INSTALLATION or BELLY PAN, SIDE, REMOVAL AND INSTALLATION .
Install the back half of the left front wheelhouse splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .
Connect the negative battery cable.
