Audio System - No sound is heard from the speaker(s) (display is normal) (With Navigation) (2013 2014 2015)

No sound is heard from the speaker(s) (display is normal)

NOTE:

• Check the vehicle battery condition first .
• Set the fader and the balance positions to the center.
• Check the connectors for poor connections or loose terminals.

1. Problem verification

   -1. Press the engine start/stop button to select the ON mode.

   -2. Turn on the audio system, and check for sound in each mode (AM/FM, XM, AUX, USB, and CD).

   Is the sound OK in each mode?

   YES

   Intermittent failure, the system is OK at this time. Check for loose connections at the audio-navigation unit and speaker(s).

   NO: No sound is heard in all modes

   The failure is duplicated in all modes, go to step 2.

   NO: No sound is heard in AM/FM mode

   Go to Poor AM or FM radio reception interference (with navigation) troubleshooting .

   NO: No sound is heard in AUX mode

   Go to Auxiliary input sound is low or cannot be heard (with navigation) troubleshooting .

   NO: No sound is heard in USB mode

   Go to USB input sound is low or cannot be heard (with navigation) troubleshooting .

   NO: No sound is heard in XM mode; USA models

   Go to Poor or no sound with XM radio (Audio-navigation unit does display XM channels) (USA models with navigation) troubleshooting .

   NO: No sound is heard in XM mode; Canada models

   NO SOUND IS HEARD FROM THE SPEAKER (S) (DISPLAY IS NORMAL) (WITH NAVIGATION) (2013-15).

   NO: No sound is heard in CD mode

   Go to Audio disc does not play troubleshooting .

2. Determine possible failure area (volume level, others)

   -1. Check that the volume knob is not set to the MIN level.

   Is it at the MIN level?

   YES

   Raise the volume level, and recheck the function.

   NO

   Go to step 3.

3. Determine possible failure area (audio-navigation unit, others)

   -1. Do the Self-Diagnostic Function, and use the speaker check mode .

   Did all speakers produce a tone?

   YES

   Replace the audio-navigation unit .

   NO

   Go to step 4.

4. Fuse check

   -1. Press the engine start/stop button to select the OFF mode.

   -2. Check the following fuse.

   Fuse	No. B37 (20 A)
   Location	Under-dash fuse/relay box

   Is the fuse OK?

   YES

   Go to step 5.

   NO

   Replace the fuse, and recheck. If the fuse blows again, check for a short in the No. B37 (20 A) fuse circuit.

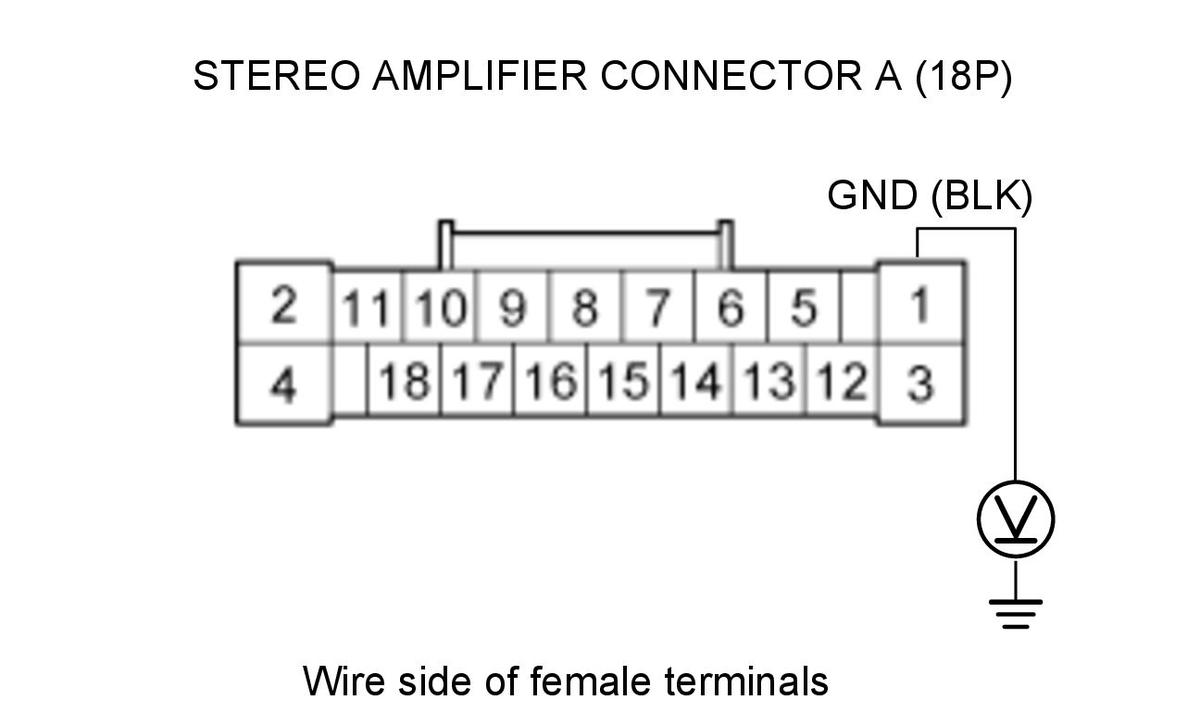

5. Open wire check (+B PREMIUM AMP line)

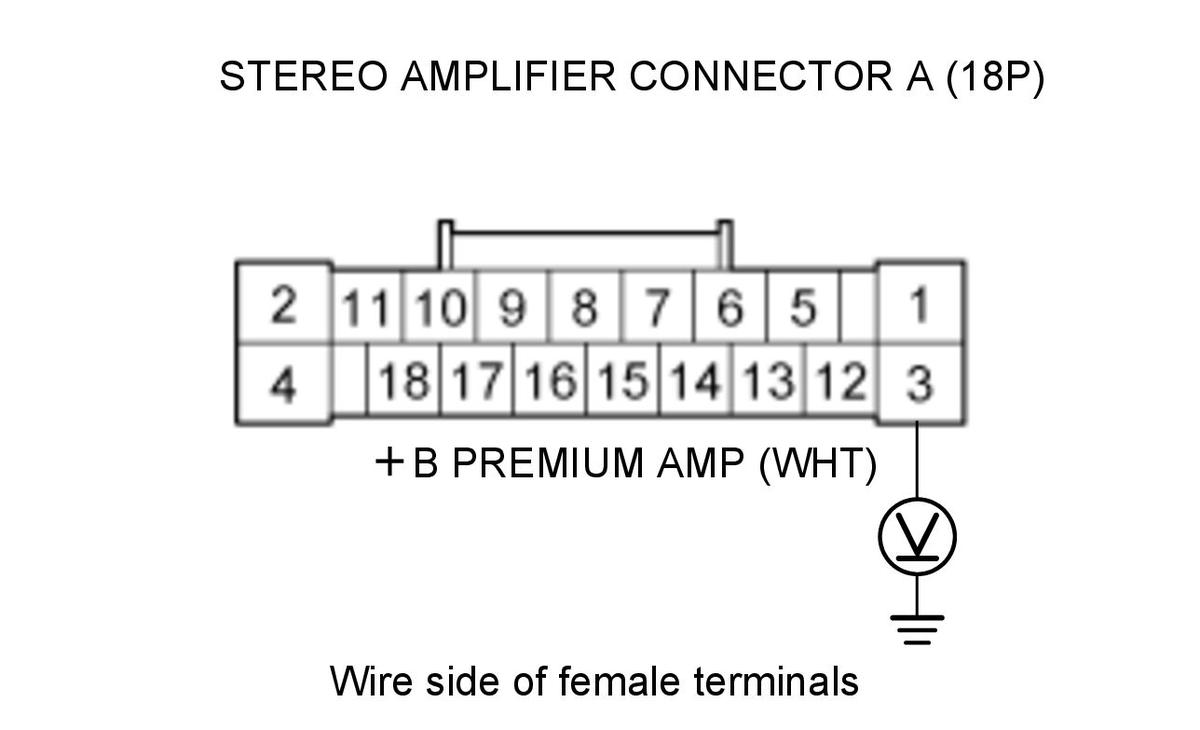

   -1. Measure the voltage between test points 1 and 2.

   Test condition	OFF mode
   Test circuit	+B PREMIUM AMP
   Test point 1	Stereo amplifier connector A (18P) No. 3 (WHT)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   The +B PREMIUM AMP wire is OK. Go to step 6.

   NO

   Repair an open in the wire between the No. B37 (20 A) fuse in the under-dash fuse/relay box and the stereo amplifier.

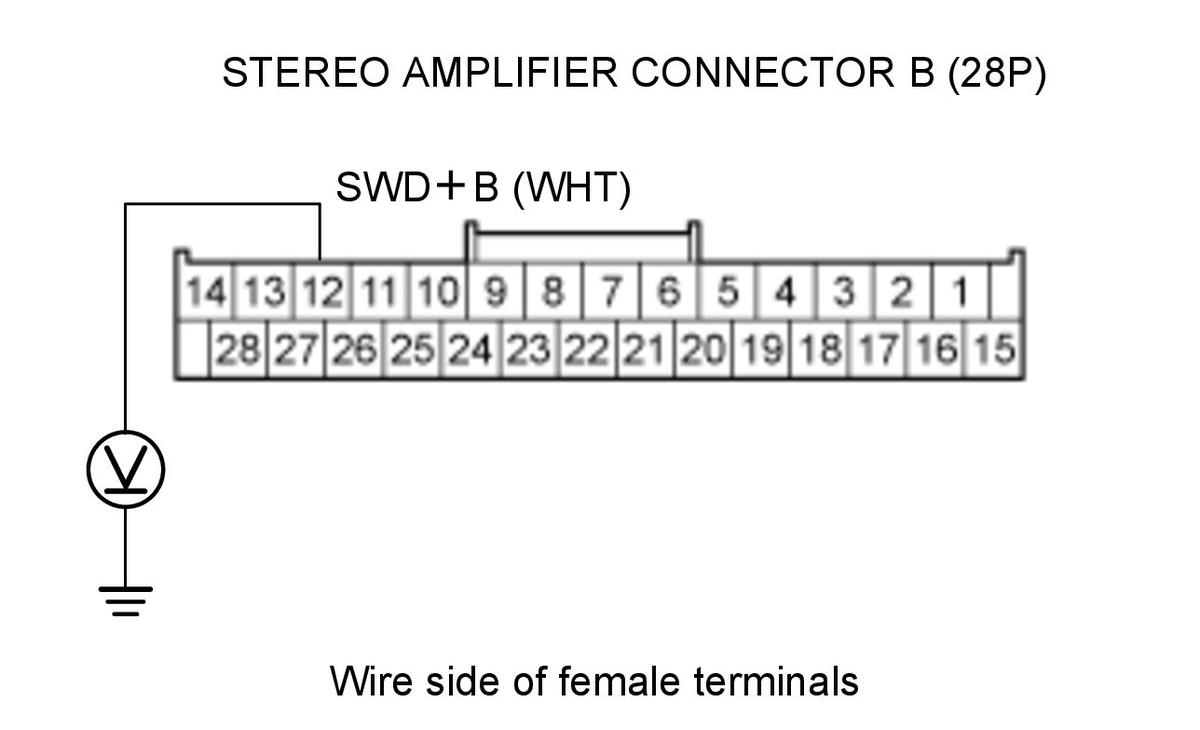

6. Determine possible failure area (SWD+B line, others)

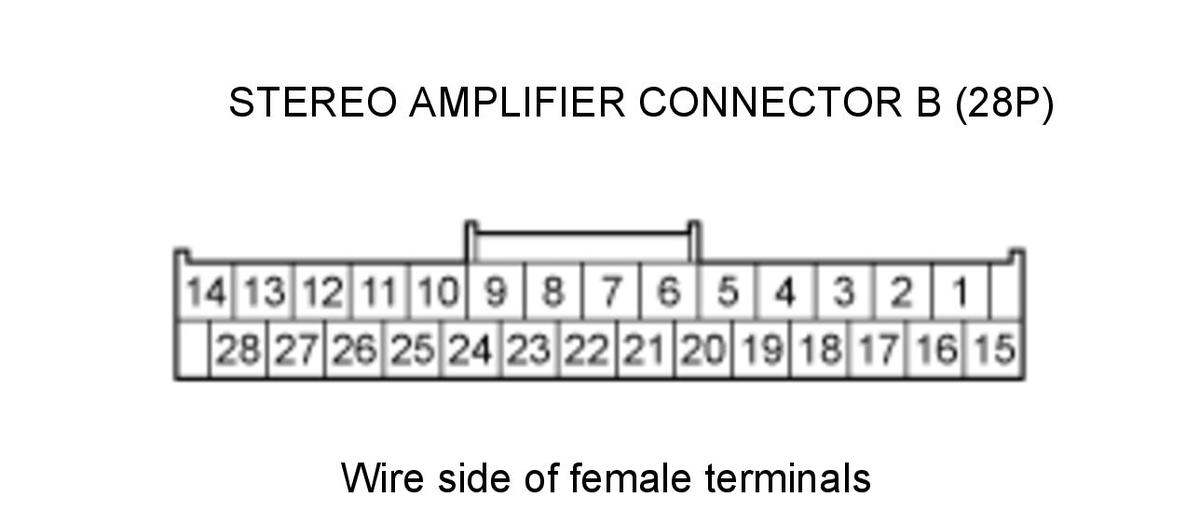

   -1. Disconnect the following connector.

   Stereo amplifier connector B (28P)

   -2. Press the engine start/stop button to select the ON mode.

   -3. Measure the voltage between test points 1 and 2.

   Test condition	ON mode
   	Stereo amplifier connector B (28P): disconnected
   Test circuit	SWD+B
   Test point 1	Stereo amplifier connector B (28P) No. 12 (WHT)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   The SWD+B wire is OK. Go to step 9.

   NO

   Go to step 7.

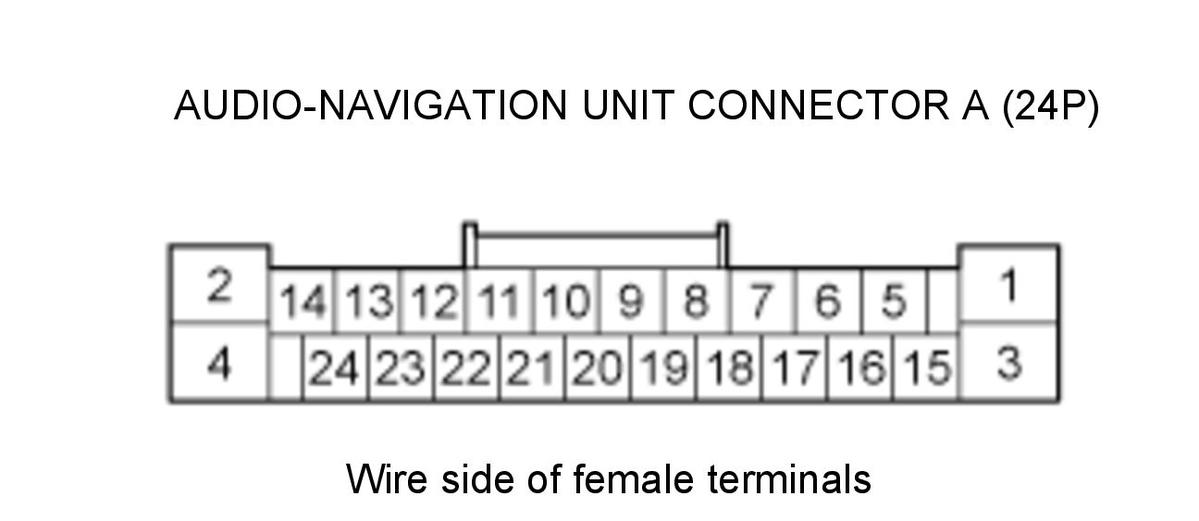

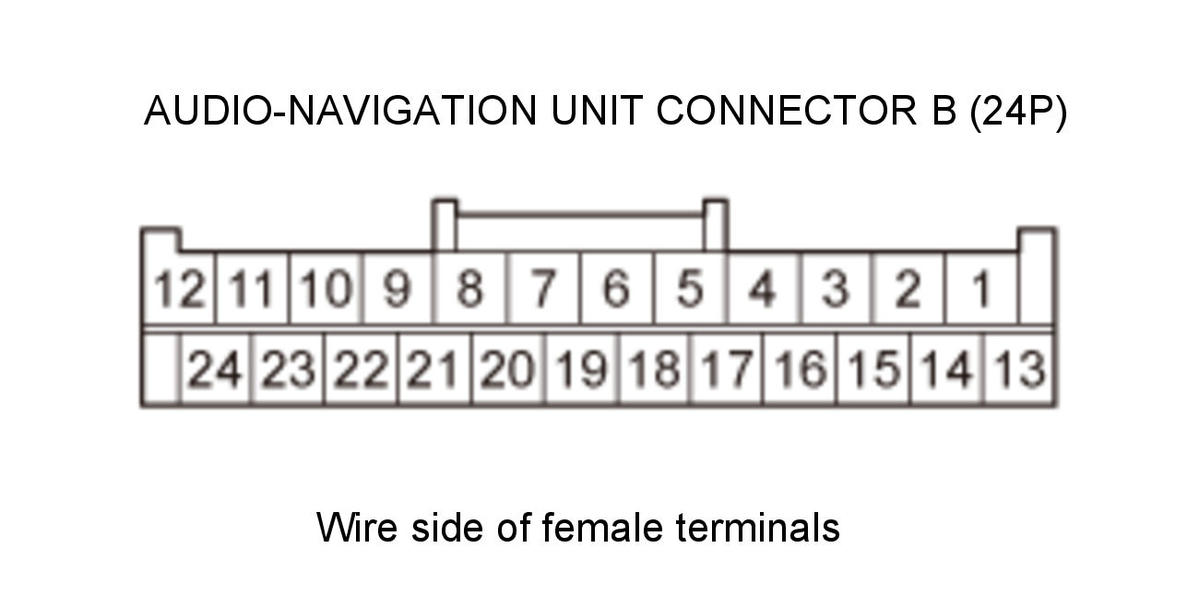

7. Open wire check (SWD+B line)

   -1. Measure the voltage between test points 1 and 2.

   Test condition	ON mode
   	Stereo amplifier connector B (28P): disconnected
   Test circuit	SWD+B

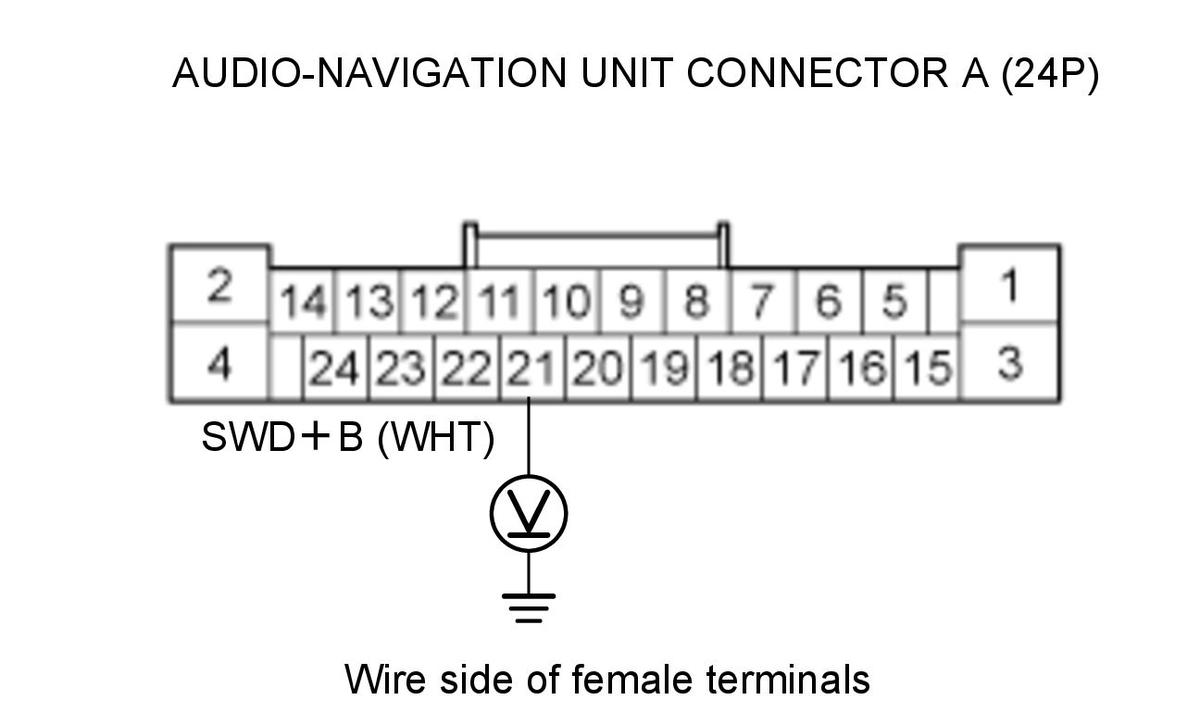

   Test point 1	Audio-navigation unit connector A (24P) No. 21 (WHT)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   Repair an open in the wire between the stereo amplifier and the audio-navigation unit.

   NO

   The SWD+B wire is not open. Go to step 8.

8. Shorted wire check (SWD+B line)

   -1. Press the engine start/stop button to select the OFF mode.

   -2. Disconnect the following connector.

   ANC/active sound control unit 20P connector

   -3. Check for continuity between test points 1 and 2.

   Test condition	OFF mode
   	Stereo amplifier connector B (28P): disconnected
   	ANC/active sound control unit 20P connector: disconnected
   Test circuit	SWD+B

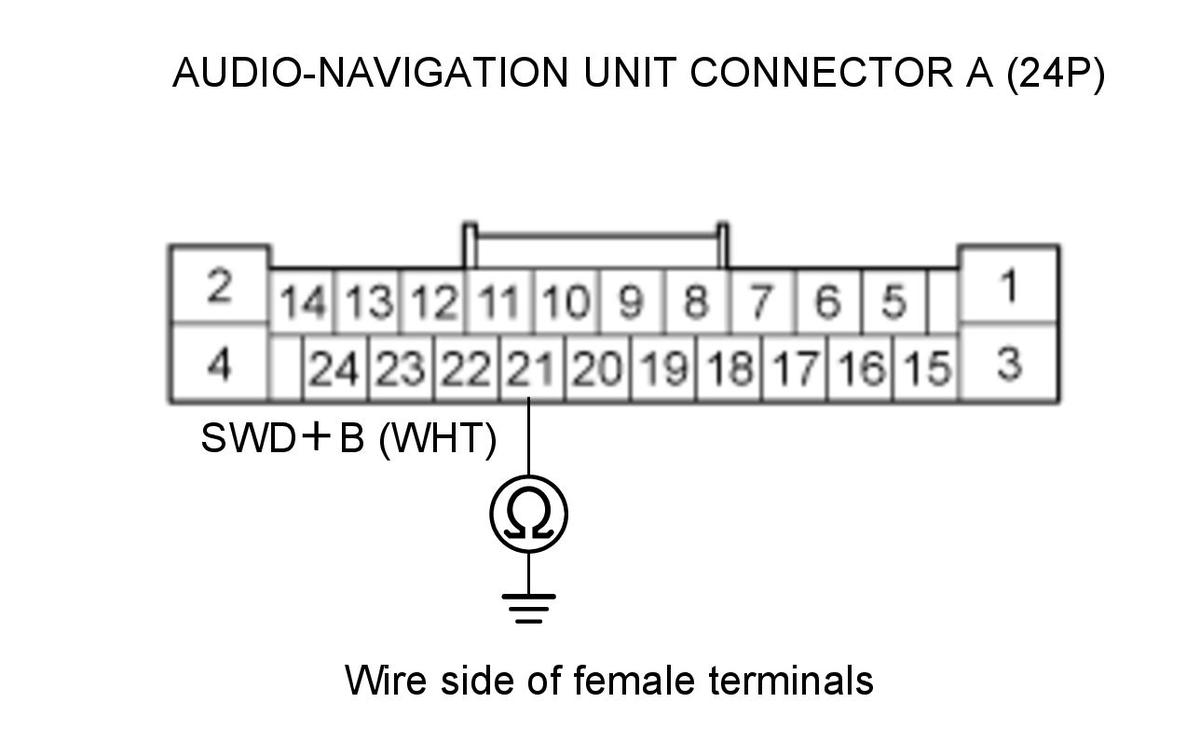

   Test point 1	Audio-navigation unit connector A (24P) No. 21 (WHT)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair an short in the wire between the stereo amplifier and the audio-navigation unit.

   NO

   Replace the audio-navigation unit .

9. Open wire check (GND line)

   -1. Press the engine start/stop button to select the OFF mode.

   -2. Reconnect stereo amplifier connector B (28P) .

   -3. Press the engine start/stop button to select the ON mode.

   -4. Measure the voltage between test points 1 and 2.

   Test condition	ON mode
   Test circuit	GND
   Test point 1	Stereo amplifier connector A (18P) No. 1 (BLK)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there less than 0.2 V?

   YES

   The GND wire is OK. Go to step 10.

   NO

   Repair an open or high resistance in the wire between the stereo amplifier and body ground (G504).

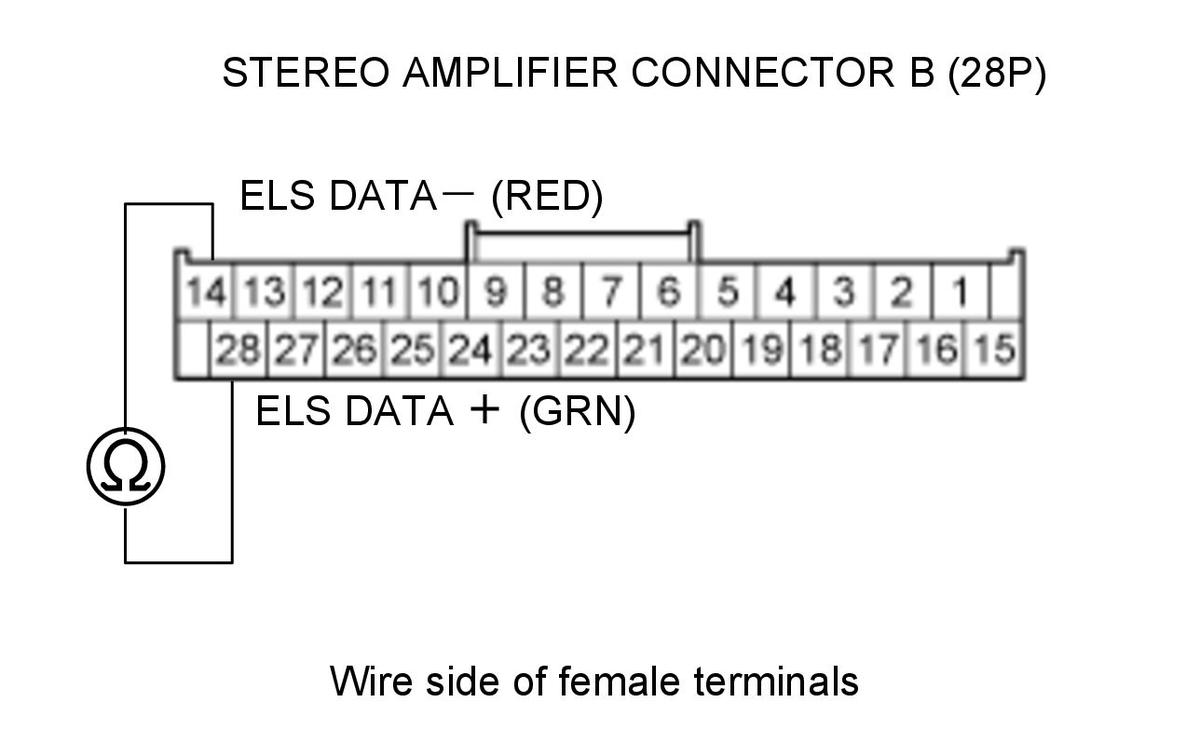

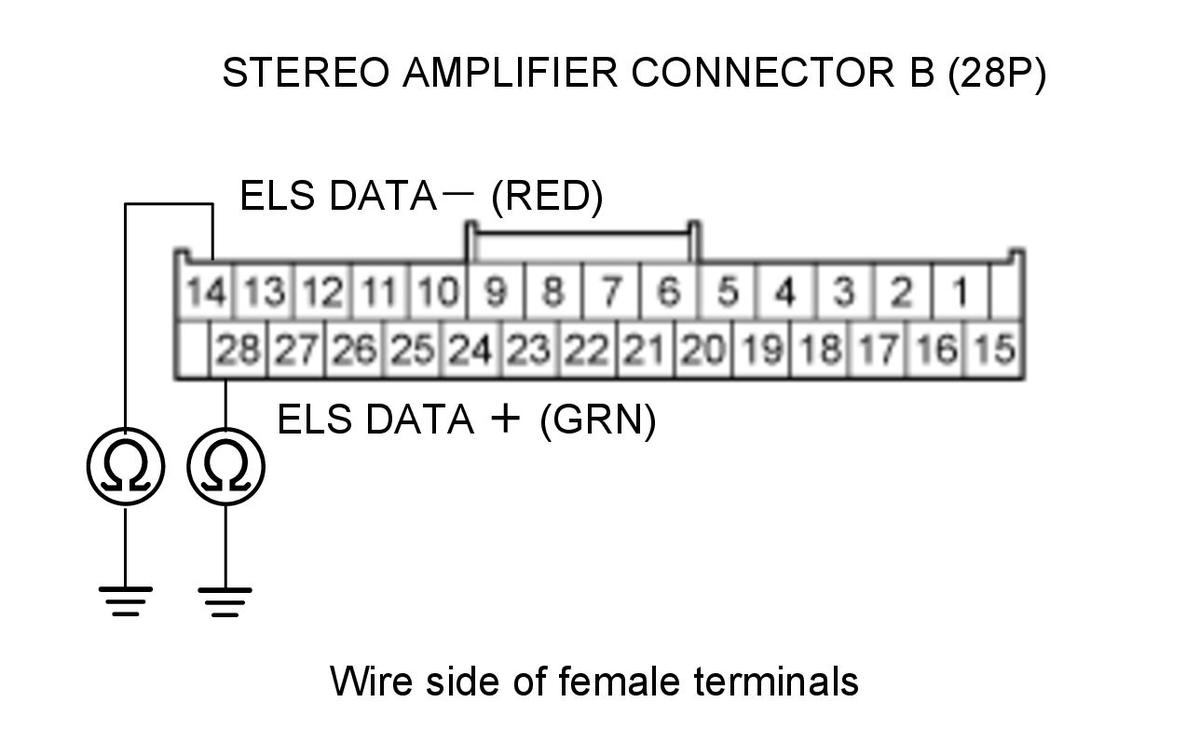

10. Shorted wire check (ELS DATA+ line, ELS DATA- line)

    -1. Press the engine start/stop button to select the OFF mode.

    -2. Disconnect the following connectors.

    Stereo amplifier connector B (28P)

    Audio-navigation unit connector E (36P)

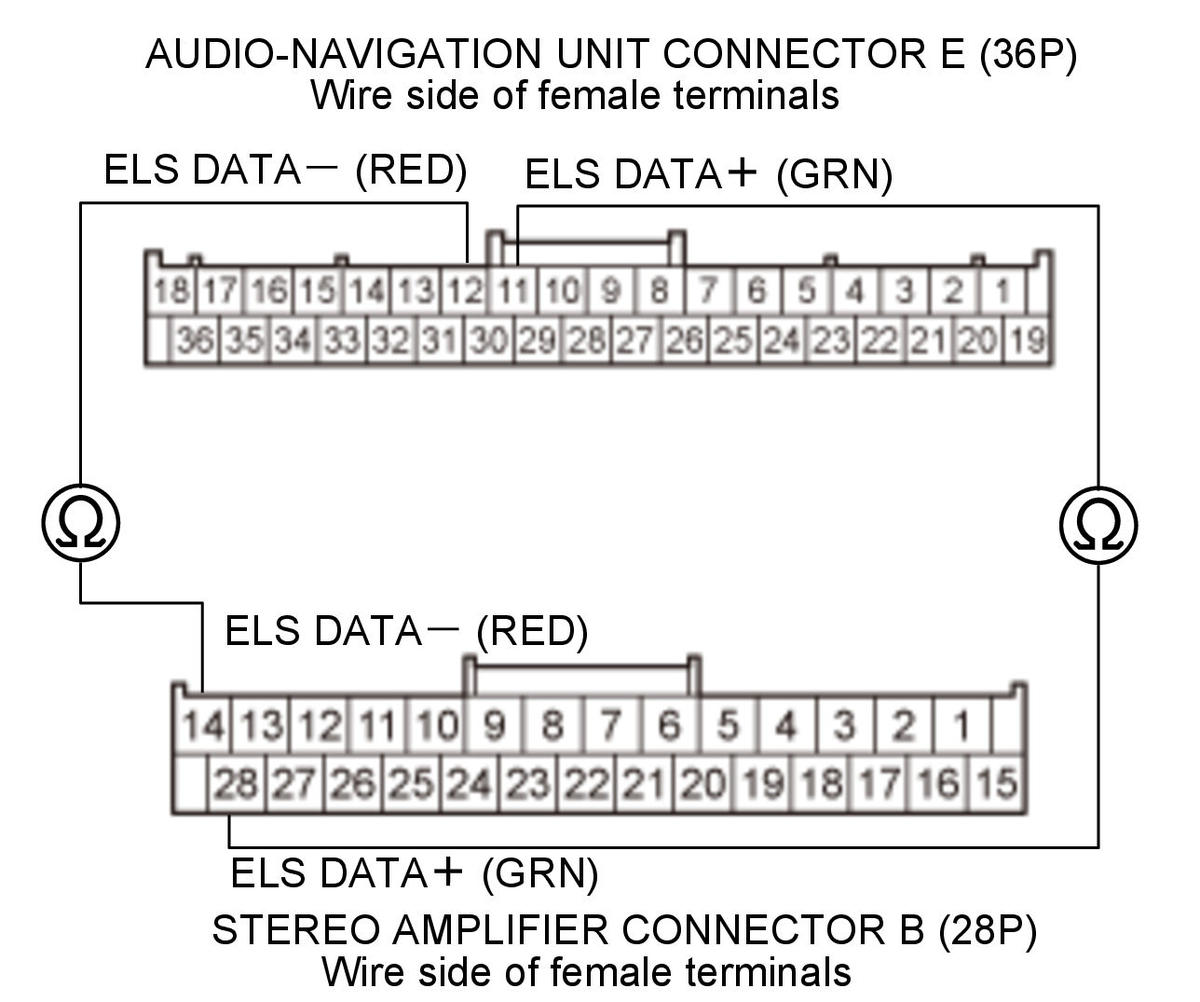

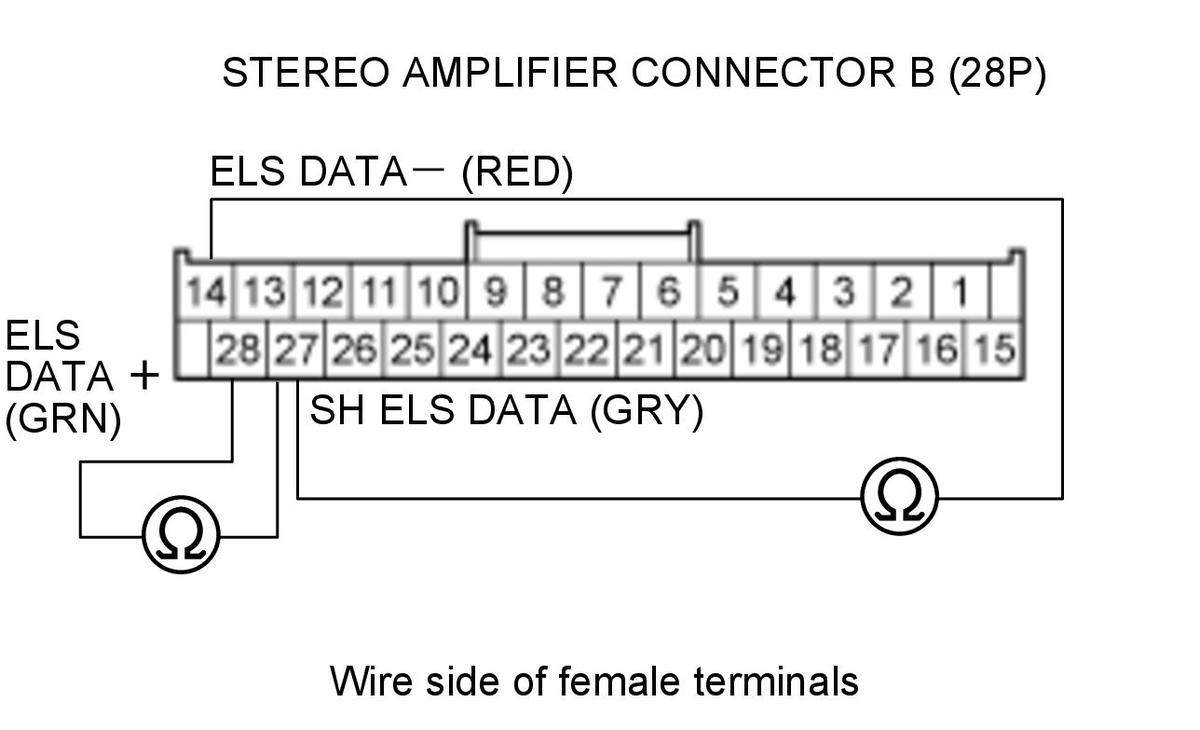

    -3. Check for continuity between test points 1 and 2.

    Test condition	OFF mode
    	Stereo amplifier connector B (28P): disconnected
    	Audio-navigation unit connector E (36P): disconnected
    Test circuit	ELS DATA+
    Test point 1	Stereo amplifier connector B (28P) No. 28 (GRN)
    Test point 2	Body ground

    Test circuit	ELS DATA-
    Test point 1	Stereo amplifier connector B (28P) No. 14 (RED)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    There is a short to body ground in the wire(s) between the audio-navigation unit and the stereo amplifier. Replace the affected shielded harness.

    NO

    The ELS DATA+ and the ELS DATA-  wires are not shorted to ground. Go to step 11.

11. Shorted wire check (ELS DATA+ line to ELS DATA- line)

    -1. Check for continuity between test points 1 and 2.

    Test condition	OFF mode
    	Stereo amplifier connector B (28P): disconnected
    	Audio-navigation unit connector E (36P): disconnected
    Test circuit	ELS DATA+, ELS DATA-
    Test point 1	Stereo amplifier connector B (28P) No. 28 (GRN)
    Test point 2	Stereo amplifier connector B (28P) No. 14 (RED)

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    There is a short in the wires between the audio-navigation unit and the stereo amplifier. Replace the affected shielded harness.

    NO

    The ELS DATA+ and the ELS DATA-  wires are not shorted. Go to step 12.

12. Shorted wire check (SH ELS DATA line to another lines)

    -1. Check for continuity between test points 1 and 2.

    Test condition	OFF mode
    	Stereo amplifier connector B (28P): disconnected
    	Audio-navigation unit connector E (36P): disconnected
    Test circuit	SH ELS DATA, ELS DATA+
    Test point 1	Stereo amplifier connector B (28P) No. 27 (GRY)
    Test point 2	Stereo amplifier connector B (28P) No. 28 (GRN)

    Test circuit	SH ELS DATA, ELS DATA-
    Test point 1	Stereo amplifier connector B (28P) No. 27 (GRY)
    Test point 2	Stereo amplifier connector B (28P) No. 14 (RED)

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    There is a short in the wires between the audio-navigation unit and the stereo amplifier. Replace the affected shielded harness.

    NO

    The SH ELS DATA wire is OK. Go to step 13.

13. Open wire check (ELS DATA+ line, ELS DATA- line)

    -1. Check for continuity between test points 1 and 2.

    Test condition	OFF mode
    	Stereo amplifier connector B (28P): disconnected
    	Audio-navigation unit connector E (36P): disconnected

    Test circuit	ELS DATA+
    Test point 1	Audio-navigation unit connector E (36P) No. 11 (GRN)
    Test point 2	Stereo amplifier connector B (28P) No. 28 (GRN)

    Test circuit	ELS DATA-
    Test point 1	Audio-navigation unit connector E (36P) No. 12 (RED)
    Test point 2	Stereo amplifier connector B (28P) No. 14 (RED)

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The ELS DATA+ and the ELS DATA-  wires are OK. Go to step 14.

    NO

    There is an open in the wire(s) between the audio-navigation unit and the stereo amplifier. Replace the affected shielded harness.

14. Shorted wire check (SPKR lines, TWEETER lines, SUB WOOFER lines)

    -1. Disconnect the following connector.

    Stereo amplifier connector A (18P)

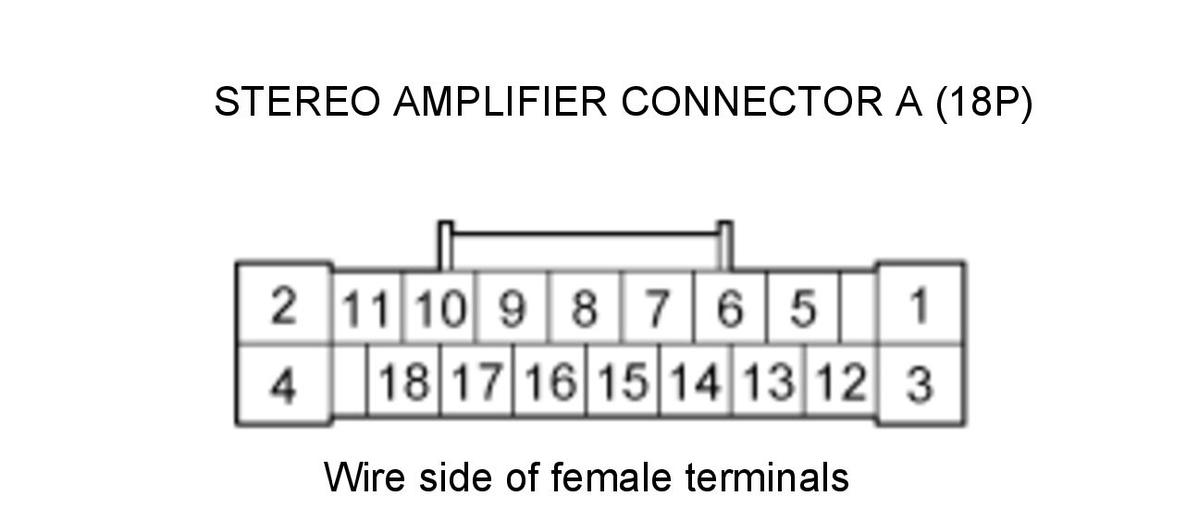

    -2. Check for continuity between these test points and body ground individually.

    Test condition	OFF mode
    	Stereo amplifier connector A (18P): disconnected
    	Stereo amplifier connector B (28P): disconnected
    	Audio-navigation unit connector E (36P): disconnected

    Connector	Test circuit	Terminal
    Stereo amplifier connector A (18P)	FL SPKR+	No. 13 (LT GRN)
    	FL SPKR	No. 6 (PNK)
    	SATL TWEETER+	No. 12 (GRY)
    	SATL TWEETER-	No. 5 (ORN)
    	FR SPKR+	No. 14 (GRY)
    	FR SPKR	No. 7 (BRN)
    	SATR TWEETER+	No. 15 (YEL)
    	SATR TWEETER-	No. 8 (WHT)
    	CTR SPKR+	No. 18 (PUR)
    	CTR SPKR-	No. 11 (PNK)
    	RL SPKR+	No. 16 (YEL)
    	RL SPKR	No. 9 (BRN)
    	RR SPKR+	No. 17 (BLU)
    	RR SPKR	No. 10 (ORN)
    	SUB WOOFER+	No. 4 (GRN)
    	SUB WOOFER	No. 2 (RED)

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short to body ground in the wire(s) between the stereo amplifier and the speaker(s).

    NO

    The SPKR, the TWEETER, and the SUB WOOFER wires are not shorted to ground. Go to step 15.

15. Determine possible failure area (speaker, others) 1

    -1. Check the speaker(s) with no sound for any damage.

    Is there any damage?

    YES

    Replace the faulty speaker(s) .

    NO

    Go to step 16.

16. Determine possible failure area (speaker, others) 2

    -1. Test the speaker(s) .

    Is the speaker(s) OK?

    YES

    Go to step 17.

    NO

    Replace the faulty speaker(s) .

17. Open wire check (SPKR lines, SUB WOOFER lines)

    -1. Reconnect all the speaker connectors except tweeter 2P connector .

    -2. Measure the resistance between test points 1 and 2.

    Test condition	OFF mode
    	Stereo amplifier connector A (18P): disconnected
    	Stereo amplifier connector B (28P): disconnected
    	Audio-navigation unit connector E (36P): disconnected
    	Left (Right) tweeter 2P connector: disconnected

    Test circuits	Test point 1:Stereo amplifier connector A (18P)	Test point 2:Stereo amplifier connector A (18P)	Resistance
    FL SPKR+, FL SPKR	No. 13 (LT GRN)	No. 6 (PNK)	About 2 '
    FR SPKR+, FR SPKR	No. 14 (GRY)	No. 7 (BRN)	About 2 '
    CTR SPKR+, CTR SPKR-	No. 18 (PUR)	No. 11 (PNK)	About 4 '
    SATL TWEETER+, SATL TWEETER-	No. 12 (GRY)	No. 5 (ORN)	About 4 '
    SATR TWEETER+, SATR TWEETER-	No. 15 (YEL)	No. 8 (WHT)	About 4 '
    RL SPKR+, RL SPKR	No. 16 (YEL)	No. 9 (BRN)	About 2 '
    RR SPKR+, RR SPKR	No. 17 (BLU)	No. 10 (ORN)	About 2 '
    SUB WOOFER+, SUB WOOFER	No. 4 (GRN)	No. 2 (RED)	About 2 '

    Courtesy of HONDA, U.S.A., INC.

    Is the resistance OK?

    YES

    The SPKR and the SUB WOOFER wires are OK. Go to step 18.

    NO

    Repair an open in the wire between the stereo amplifier and the speaker(s).

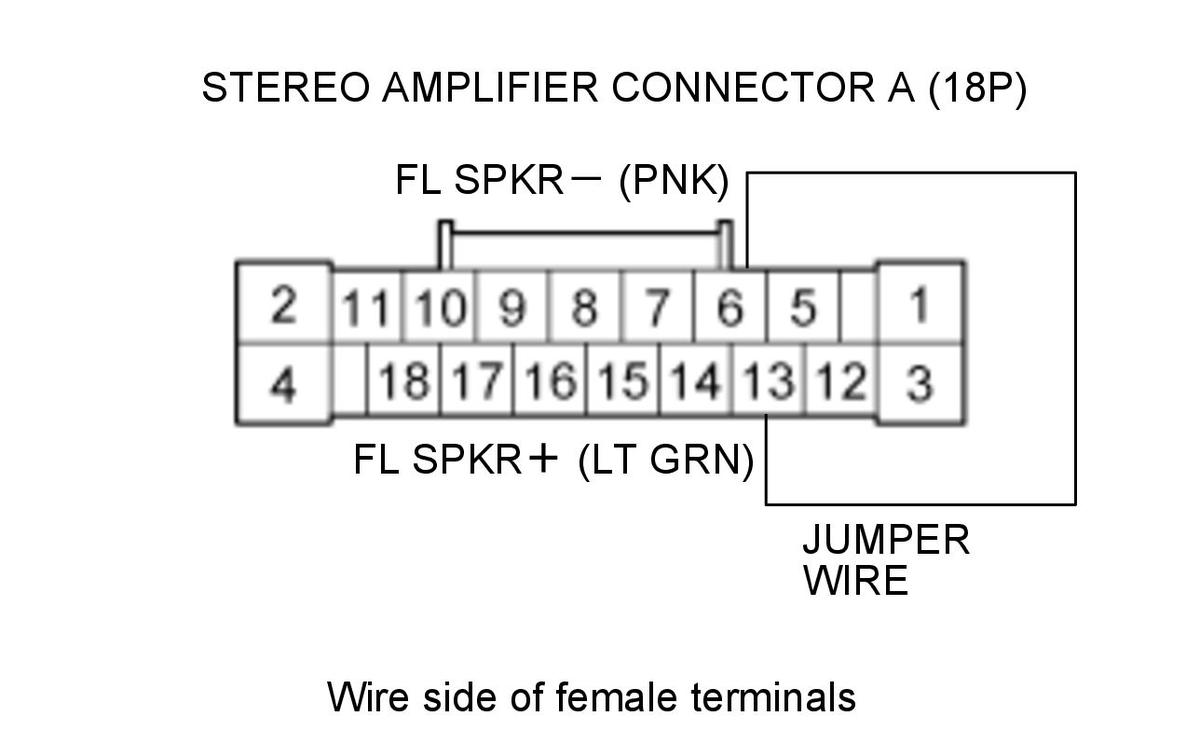

18. Open wire check (SPKR (Tweeter) lines)

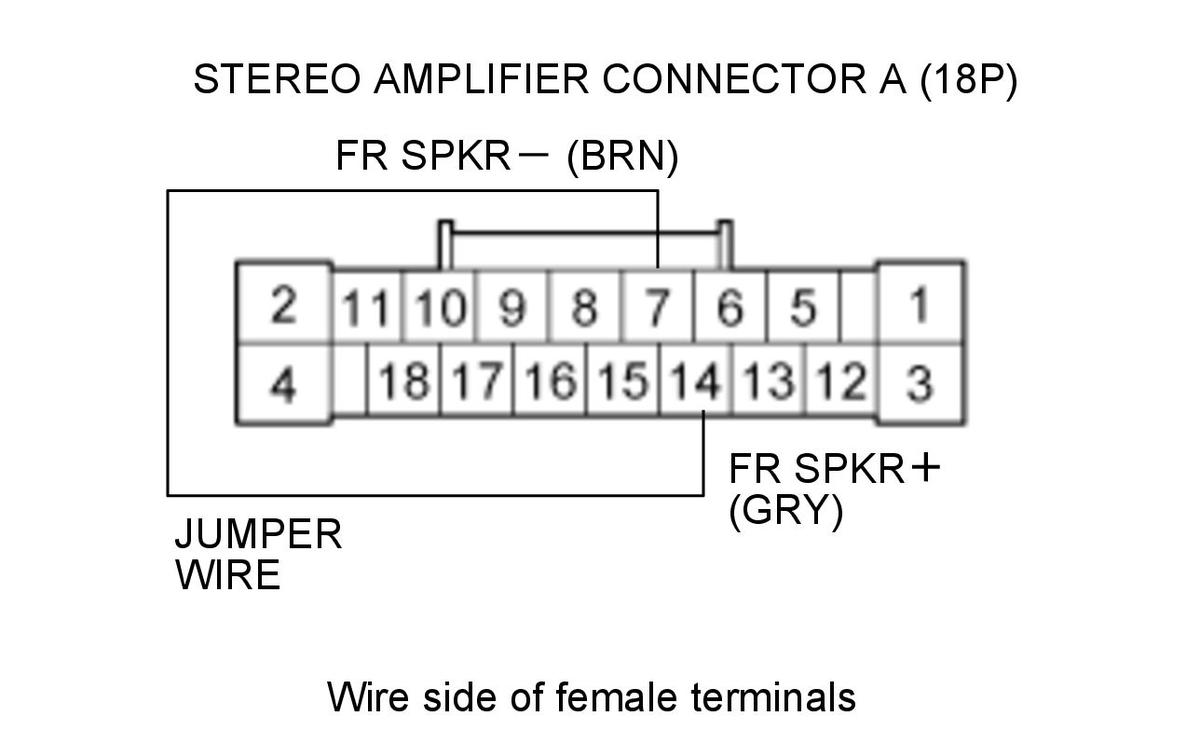

    -1. Connect terminals A and B with jumper wires.

    Terminal A	Stereo amplifier connector A (18P) No. 13 (LT GRN)
    Terminal B	Stereo amplifier connector A (18P) No. 6 (PNK)

    Terminal A	Stereo amplifier connector A (18P) No. 14 (GRY)
    Terminal B	Stereo amplifier connector A (18P) No. 7 (BRN)

    Courtesy of HONDA, U.S.A., INC.

    Courtesy of HONDA, U.S.A., INC.

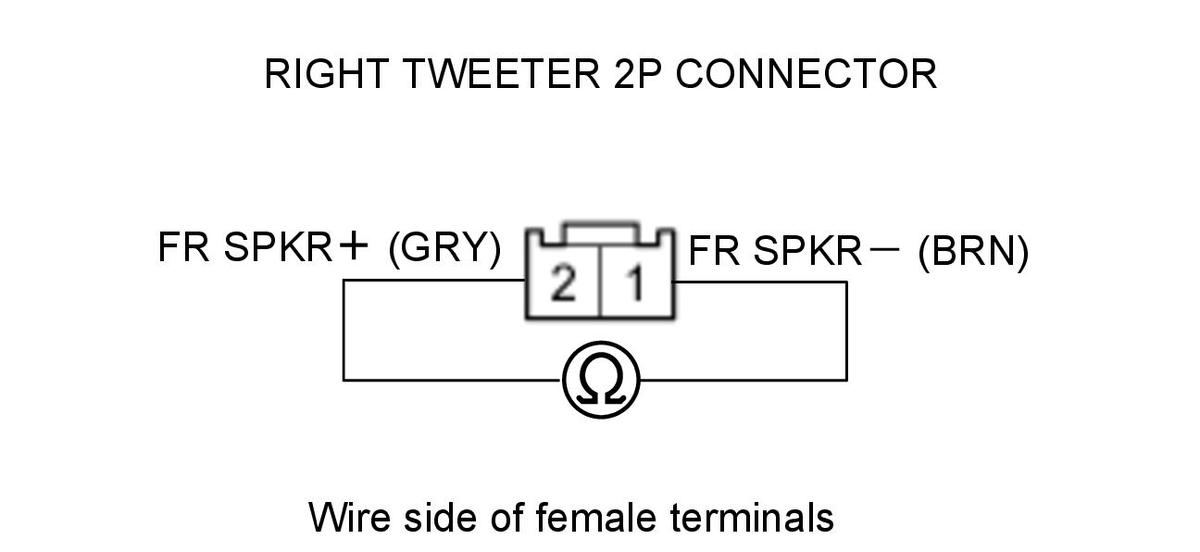

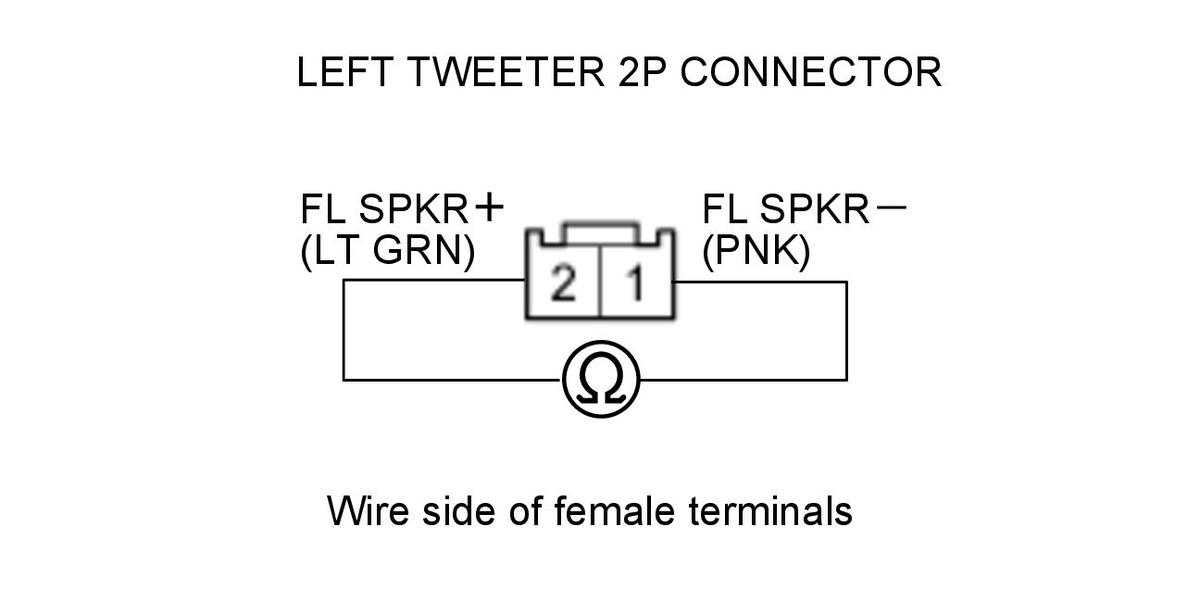

    -2. Check for continuity between test points 1 and 2.

    Test condition	OFF mode
    	Stereo amplifier connector A (18P): disconnected
    	Stereo amplifier connector B (28P): disconnected
    	Audio-navigation unit connector E (36P): disconnected
    	Left (Right) tweeter 2P connector: disconnected
    	Stereo amplifier connector A (18P) No. 6 and No. 13: jumped
    	Stereo amplifier connector A (18P) No. 7 and No. 14: jumped
    Test circuit	FL SPKR+, FL SPKR
    Test point 1	Left tweeter 2P connector No. 1 (PNK)
    Test point 2	Left tweeter 2P connector No. 2 (LT GRN)

    Test circuit	FR SPKR+, FR SPKR
    Test point 1	Right tweeter 2P connector No. 1 (BRN)
    Test point 2	Right tweeter 2P connector No. 2 (GRY)

    Courtesy of HONDA, U.S.A., INC.

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The SPKR (Tweeter) wires are OK. Go to step 19.

    NO

    Repair an open in the wire(s) between the stereo amplifier and the tweeter.

19. Open wire check (PRE lines)

    -1. Disconnect the following connectors.

    NOTE:  Eject the disc before disconnecting the audio-navigation unit to prevent damaging the CD/DVD player's load mechanism.

    Audio-navigation unit connector A (24P)

    Audio-navigation unit connector B (24P)

    -2. Check for continuity between test points 1 and 2.

    Test condition	OFF mode
    	Stereo amplifier connector A (18P): disconnected
    	Stereo amplifier connector B (24P): disconnected
    	Audio-navigation unit connector E (36P): disconnected
    	Left (Right) tweeter 2P connector: disconnected
    	Audio-navigation unit connector A (24P): disconnected
    	Audio-navigation unit connector B (24P): disconnected

    Test circuits	Test point 1:Audio-navigation unit connector A (24P)	Test point 2:Stereo amplifier connector B (28P)
    FL PRE+ ELS	No. 15 (WHT)	No. 5 (WHT)
    FL PRE- ELS	No. 16 (BLK)	No. 19 (BLK)
    FR PRE+ ELS	No. 19 (RED)	No. 4 (RED)
    FR PRE- ELS	No. 20 (GRN)	No. 18 (GRN)
    RL PRE+ ELS	No. 5 (YEL)	No. 2 (YEL)
    RL PRE- ELS	No. 6 (PUR)	No. 16 (PUR)
    RR PRE+ ELS	No. 9 (ORN)	No. 1 (ORN)
    RR PRE- ELS	No. 10 (BLU)	No. 15 (BLU)

    Test circuits	Test point 1:Audio-navigation unit connector B (24P)	Test point 2:Stereo amplifier connector B (28P)
    CTR PRE+	No. 3 (BLK)	No. 11 (BLK)
    CTR PRE-	No. 4 (WHT)	No. 25 (WHT)
    SUB W PRE+ ELS	No. 1 (GRN)	No. 9 (GRN)

    Test circuits	Test point 1:Audio-navigation unit connector B (24P)	Test point 2:Stereo amplifier connector B (28P)
    SUB W PRE- ELS	No. 13 (RED)	No. 24 (RED)

    Courtesy of HONDA, U.S.A., INC.

    Courtesy of HONDA, U.S.A., INC.

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity

    YES

    The PRE wires are not open. Go to step 20.

    NO

    There is an open in the wire(s) between the audio-navigation unit and the stereo amplifier. Replace the affected shielded harness.

20. Shorted wire check (PRE lines)

    -1. Check for continuity between these test points and body ground individually.

    Test condition	OFF mode
    	Stereo amplifier connector A (18P): disconnected
    	Stereo amplifier connector B (24P): disconnected
    	Audio-navigation unit connector E (36P): disconnected
    	Left (Right) tweeter 2P connector: disconnected
    	Audio-navigation unit connector A (24P): disconnected
    	Audio-navigation unit connector B (24P): disconnected

    Connector	Test circuits	Terminal
    Audio-navigation unit connector A (24P)	FL PRE+ ELS	No. 15 (WHT)
    	FL PRE- ELS	No. 16 (BLK)
    	FR PRE+ ELS	No. 19 (RED)
    	FR PRE- ELS	No. 20 (GRN)
    	RL PRE+ ELS	No. 5 (YEL)
    	RL PRE- ELS	No. 6 (PUR)
    	RR PRE+ ELS	No. 9 (ORN)
    	RR PRE- ELS	No. 10 (BLU)

    Connector	Test circuits	Terminal
    Audio-navigation unit connector B (24P)	CTR PRE+	No. 3 (BLK)
    	CTR PRE-	No. 4 (WHT)
    	SUB W PRE+ ELS	No. 1 (GRN)
    	SUB W PRE- ELS	No. 13 (RED)

    Courtesy of HONDA, U.S.A., INC.

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    There is a short to body ground in the wire(s) between the stereo amplifier and the audio-navigation unit. Replace the affected shielded harness.

    NO

    The PRE wires are not shorted to ground. Go to step 21.

21. Shorted wire check (SH PRE line to another lines)

    -1. Check for continuity between test points 1 and 2.

    Test condition	OFF mode
    	Stereo amplifier connector A (18P): disconnected
    	Stereo amplifier connector B (24P): disconnected
    	Audio-navigation unit connector E (36P): disconnected
    	Left (Right) tweeter 2P connector: disconnected
    	Audio-navigation unit connector A (24P): disconnected
    	Audio-navigation unit connector B (24P): disconnected

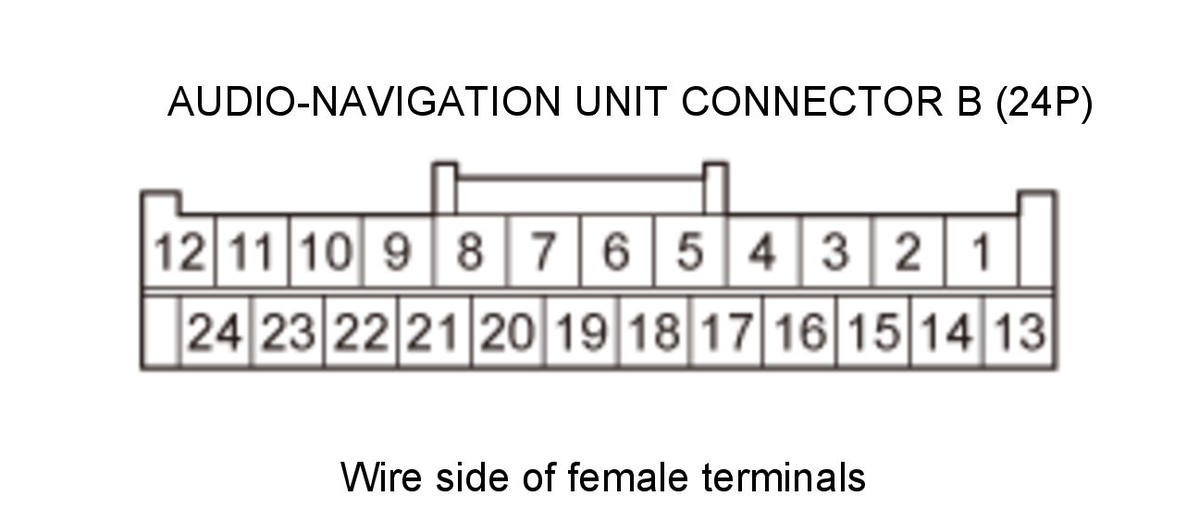

    Test circuits	Connector: Audio-navigation unit connector A (24P)
    	Test point 1	Test points 2
    SH FR-FL GND to FL PRE+ ELS, FL PRE-ELS, FR PRE+ ELS, FR PRE-ELS	No. 17 (GRY)	No. 15 (WHT), No. 16 (BLK), No. 19 (RED), No. 20 (GRN)
    SH RL/RR PRE ELS to RL PRE+ ELS, RL PRE-ELS, RR PRE+ ELS, RR PRE- ELS	No. 7 (GRY)	No. 5 (YEL), No. 6 (PUR), No. 9 (ORN), No. 10 (BLU)

    Test circuits	Connector: Audio-navigation unit connector B (24P)
    	Test point 1	Test points 2
    CTR SUB W SH to SUB W PRE+ ELS, SUB W PRE- ELS, CTR PRE+, CTR PRE-	No. 2 (GRY)	No. 1 (GRN), No. 13 (RED), No. 3 (BLK), No. 4 (WHT)

    Courtesy of HONDA, U.S.A., INC.

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity between any of the terminals?

    YES

    There is a short in the wires between the stereo amplifier and the audio-navigation unit. Replace the affected shielded harness.

    NO

    The SH PRE wires and the PRE wires are OK. Go to step 22.

22. Audio-navigation unit check

    -1. Substitute a known-good stereo amplifier .

    -2. Reconnect all the connectors, and recheck.

    Does the symptom go away?

    YES

    Replace the original stereo amplifier.

    NO

    Replace the audio-navigation unit .
