Gauges Component Location Index (With SH-AWD)

For relationships between signals in a system, refer to

System Diagram - Refer to: Exterior Lights System Description - System Diagram (2015-17), or Exterior Lights System Description - System Diagram (2018-19) .

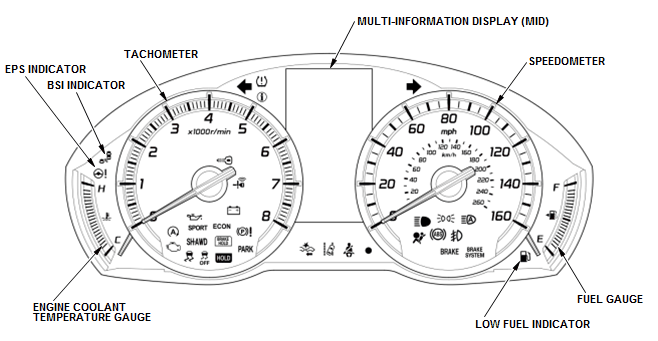

Courtesy of HONDA, U.S.A., INC.

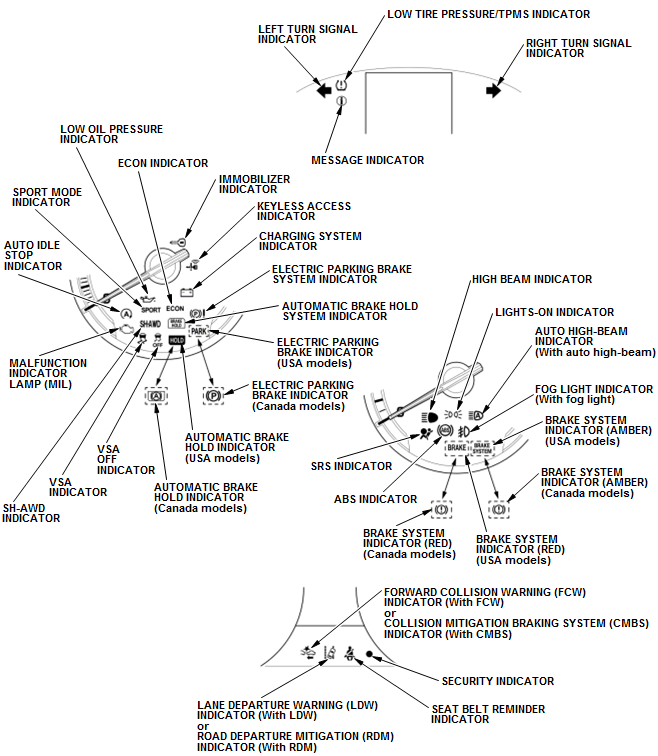

Courtesy of HONDA, U.S.A., INC.

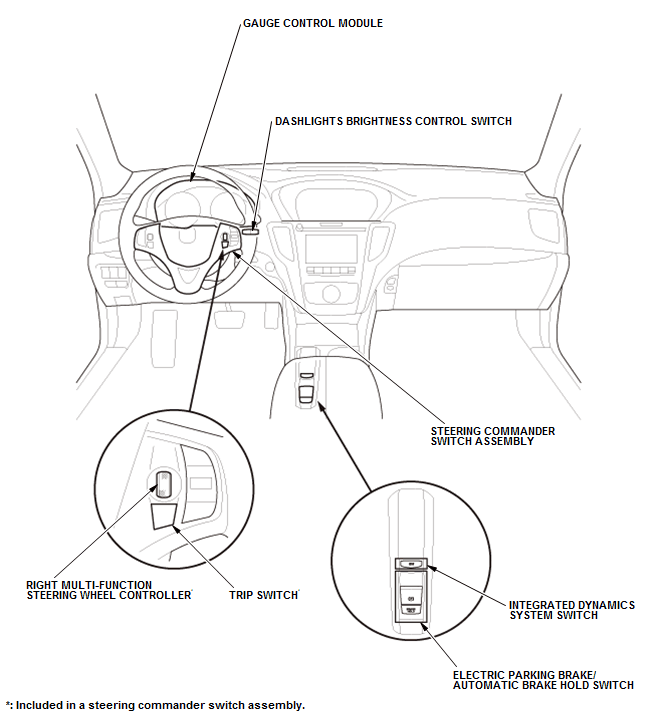

Courtesy of HONDA, U.S.A., INC.

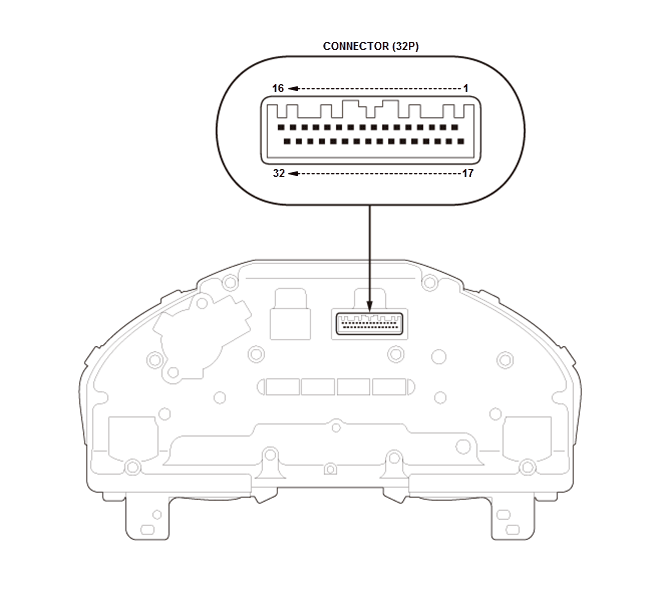

Courtesy of HONDA, U.S.A., INC.

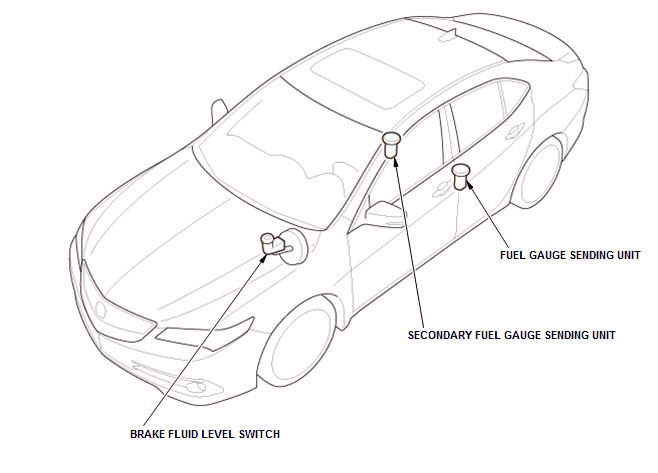

Courtesy of HONDA, U.S.A., INC.
