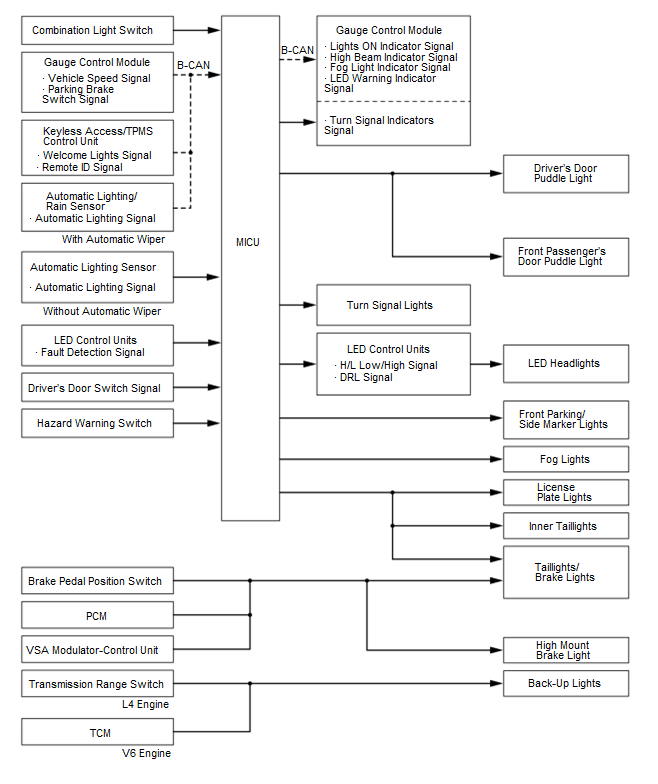

Exterior Lights System Description - System Diagram (2015-17)

GHH200652

Courtesy of HONDA, U.S.A., INC.
