Heated Steering Wheel Control Unit
NOTE:
- SRS components are located in this area. Review the SRS component locations , and precautions and procedures before doing repairs or servicing.
- Before testing, make sure the No. E27 (10 A) fuse in the passenger's under-dash fuse/relay box is OK.
- After testing, clear the SRS control unit DTCs.
1. Turn the vehicle to the OFF (LOCK) mode.
2. Do the battery terminal disconnection procedure
3. Remove the steering wheel , and the steering wheel rear cover.
4. Install the steering wheel without the driver's airbag and the steering wheel rear cover.
5. Do the battery terminal reconnection procedure
6. Turn the steering wheel at 180 deg.

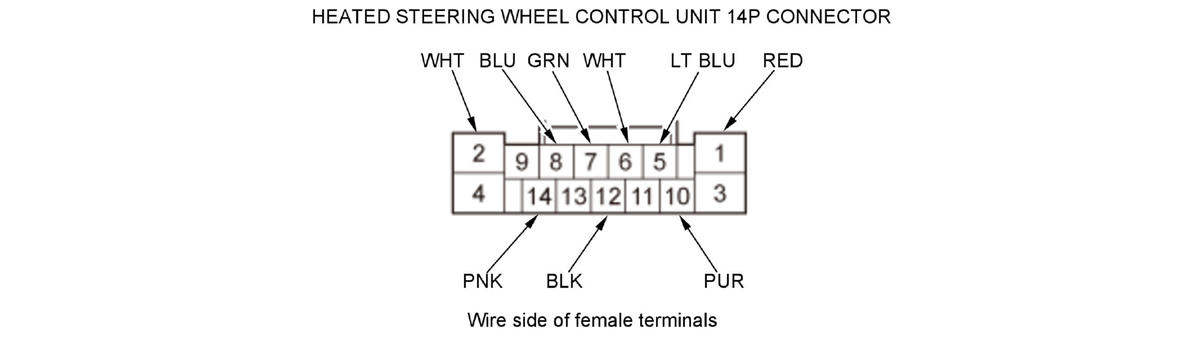

7. Disconnect the heated steering wheel control unit 14P connector
8. Inspect the connector and socket terminals to be sure they are all making good contact:
- If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.
- If the terminals are OK, go to step 9.
9. With the connector still disconnected, do the following input tests:
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 10.
| Cavity | Wire | Test condition | Test: Desired result | Possible cause if desired result is not obtained |
|---|---|---|---|---|
| 8 | BLU | Disconnect steering commander switch assembly connector B (16P) | Check for continuity between terminal No. 8 and steering commander switch assembly connector B (16P) terminal No. 15: There should be continuity. | An open in the LIN (METER) wire |
| Check for continuity to ground: There should be no continuity. | A short to ground in the LIN (METER) wire | |||
| 7 | GRN | Disconnect the steering heater 4P connector, | Check for continuity between terminal No. 7 and steering heater 4P connector terminal No. 4: There should be continuity. | An open or high resistance in the wire |
10. Reconnect the connector, and do the following input tests:
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, replace the heated steering wheel control unit .
| Cavity | Wire | Test condition | Test: Desired result | Possible cause if desired result is not obtained |
|---|---|---|---|---|
| 2 | WHT | Vehicle ON mode | Measure the voltage to ground: There should be battery voltage. |
|
| 12 | BLK | In all power modes | Measure the voltage to ground: There should be less than 0.2 V. |
|
| 1 | RED | Disconnect the steering heater 4P connector, vehicle ON mode, and heated steering switch ON | Measure the voltage to ground: There should be battery voltage. | A short to ground in the wire |
| 6 | WHT | Disconnect the steering heater 4P connector, vehicle ON mode, and heated steering switch ON | Measure the voltage to ground: There should be 5 V. | A short to ground in the wire |
| 514 | LT BLUPNK | Vehicle ON mode, and heated steering wheel button pressed | Measure the voltage between terminals No. 5 and No. 14: There should be less than 0.2 V. |
|
| Vehicle ON mode, and heated steering wheel button released | Measure the voltage between terminals No. 5 and No. 14: There should be battery voltage. |
|
||
| 10 | PUR | Vehicle ON mode | Connect to ground with a jumper wire: There heated steering wheel switch indicator should come on. |
|
