SRS Component Location Index (With Heated Steering Wheel)

Canada models

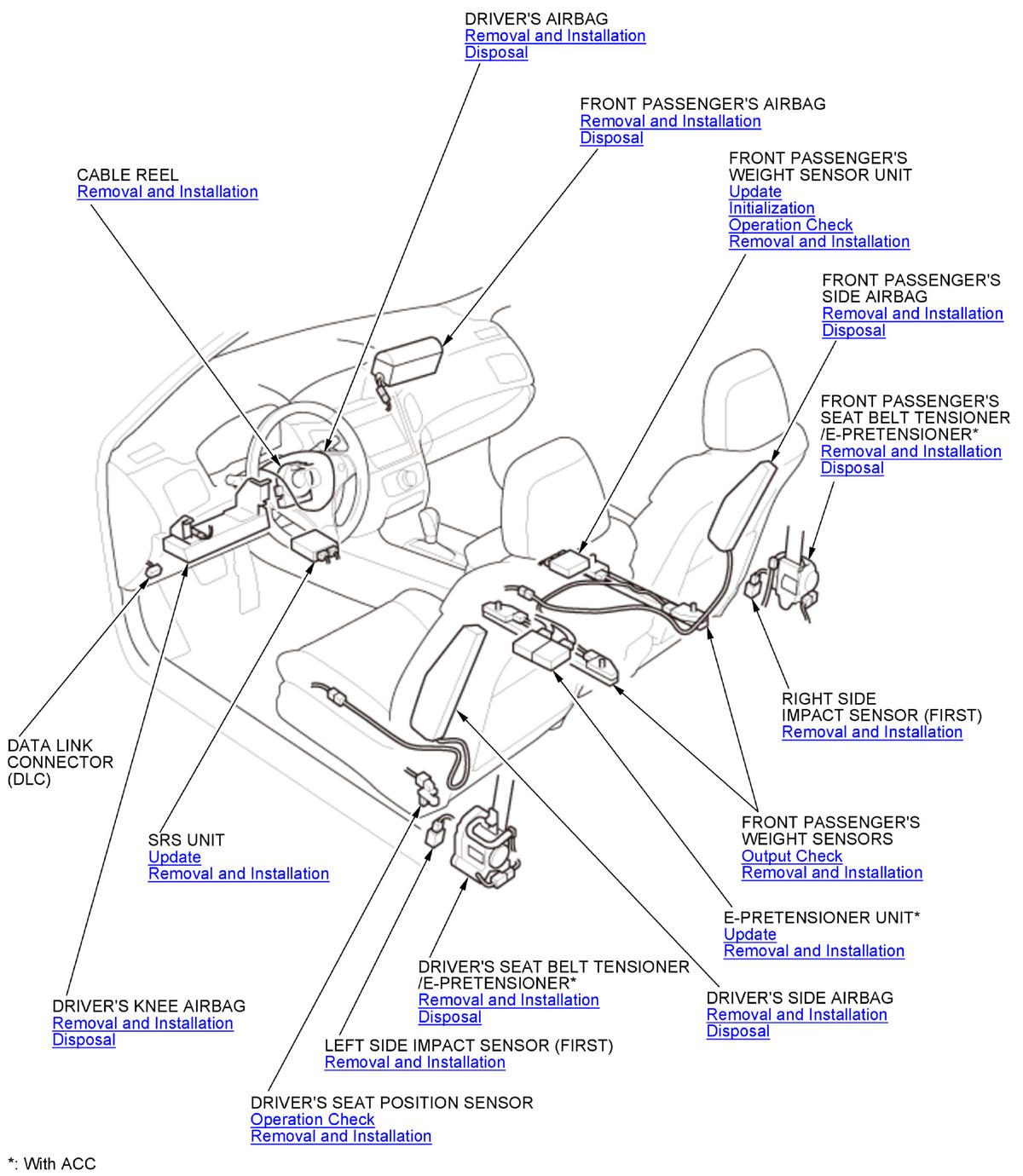

GHH351584

Courtesy of HONDA, U.S.A., INC.

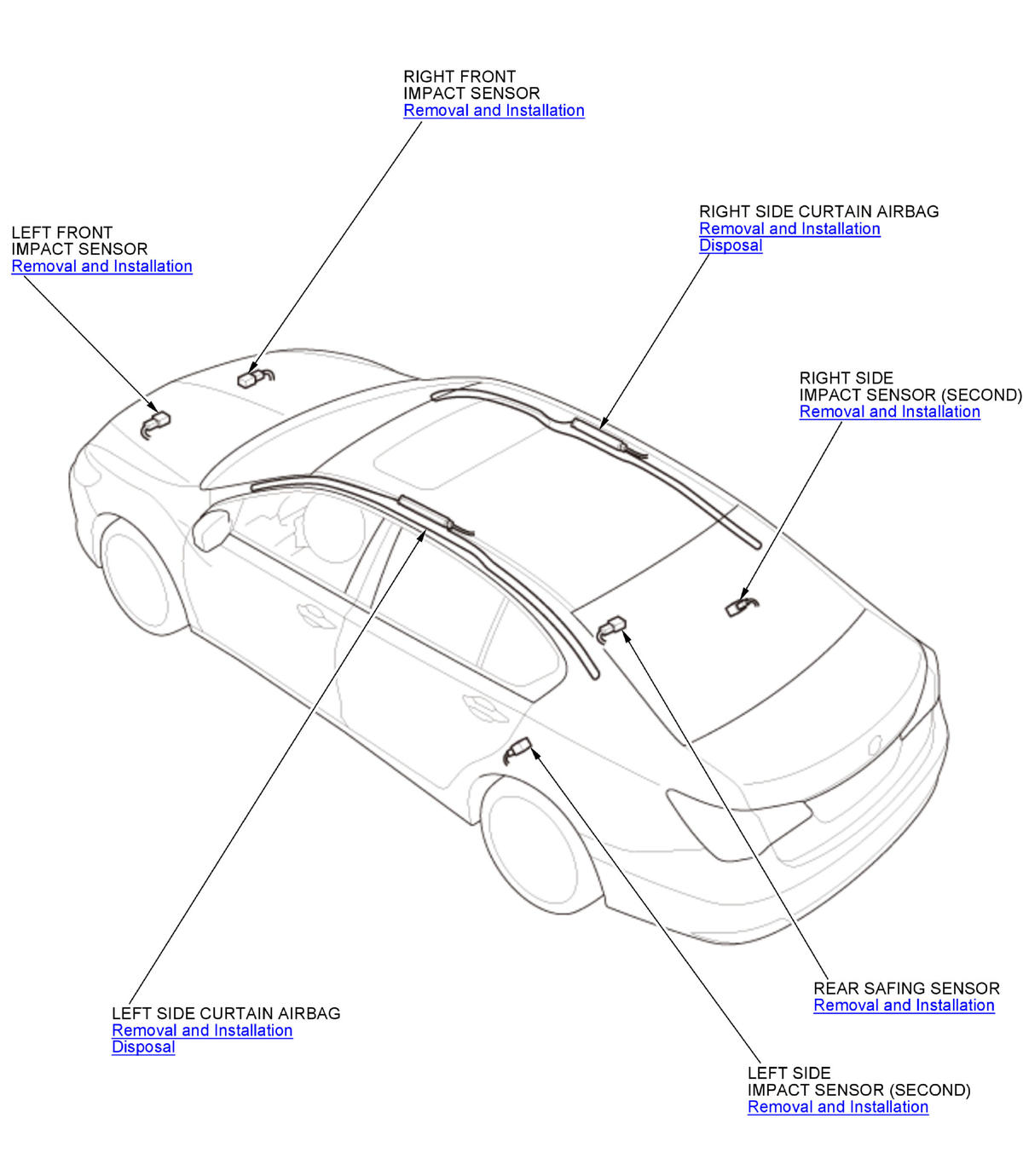

GHH351585

Courtesy of HONDA, U.S.A., INC.

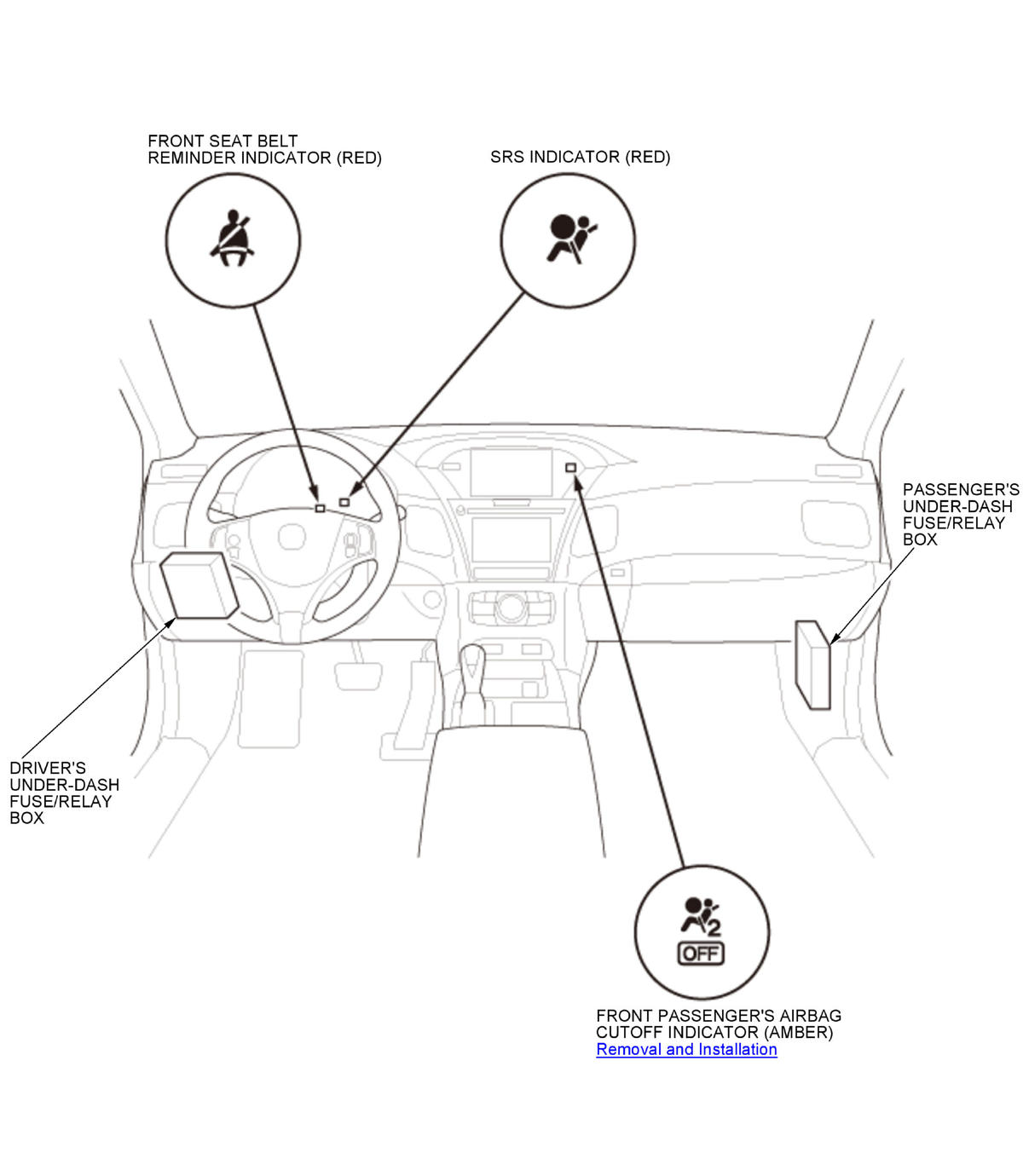

GHH351586

Courtesy of HONDA, U.S.A., INC.
