How to Clear DTCs
Make sure the battery is fully charged before you begin.
1. Turn the vehicle to the OFF (LOCK) mode, then wait for 10 seconds.

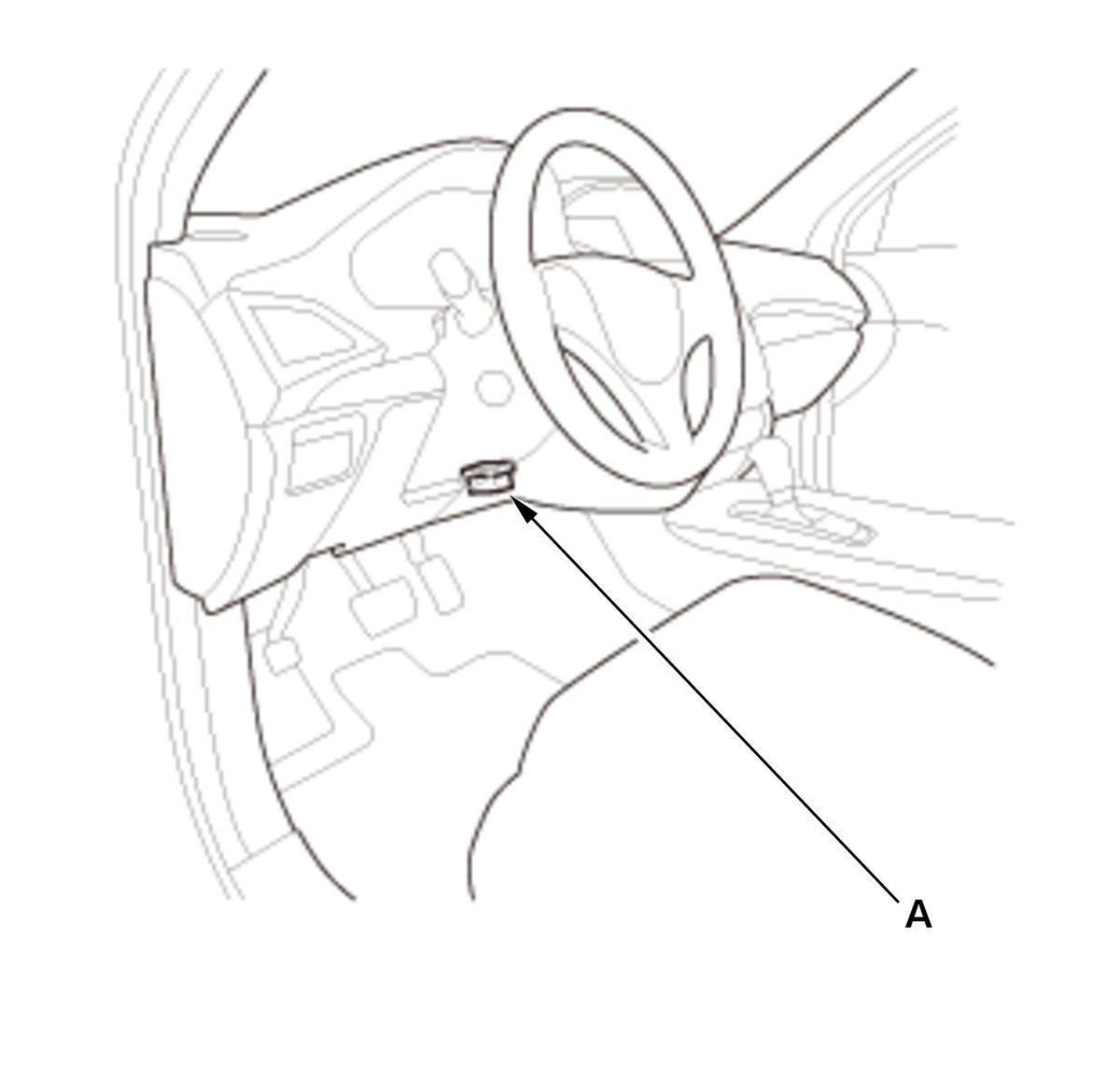

2. Connect the HDS to the data link connector (DLC) (A).
3. Turn the vehicle to the ON mode.
4. Make sure the HDS communicates with the vehicle and the SRS unit. If it does not communicate, go to the DLC circuit troubleshooting - Refer to: DLC Circuit Troubleshooting (2014 2015), or DLC Circuit Troubleshooting(Without CAN Gateway) (2016), or DLC Circuit Troubleshooting(With CAN Gateway) (2016), or DLC Circuit Troubleshooting (2017 2018), or DLC Circuit Troubleshooting (2017 2018), or DLC Circuit Troubleshooting (2019 2020)
5. In the SRS MENU of the HDS, select SRS, then DTC to clear DTCs.
6. Turn the vehicle to the OFF (LOCK) mode, then wait for 10 seconds.
