Select/Reset/Information Switch: Test

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Driver's Airbag - Remove
2. Steering Wheel - Remove
3. Steering Wheel Rear Cover - Remove
4. Select/Reset/Information Switch - Test

   Courtesy of HONDA, U.S.A., INC.

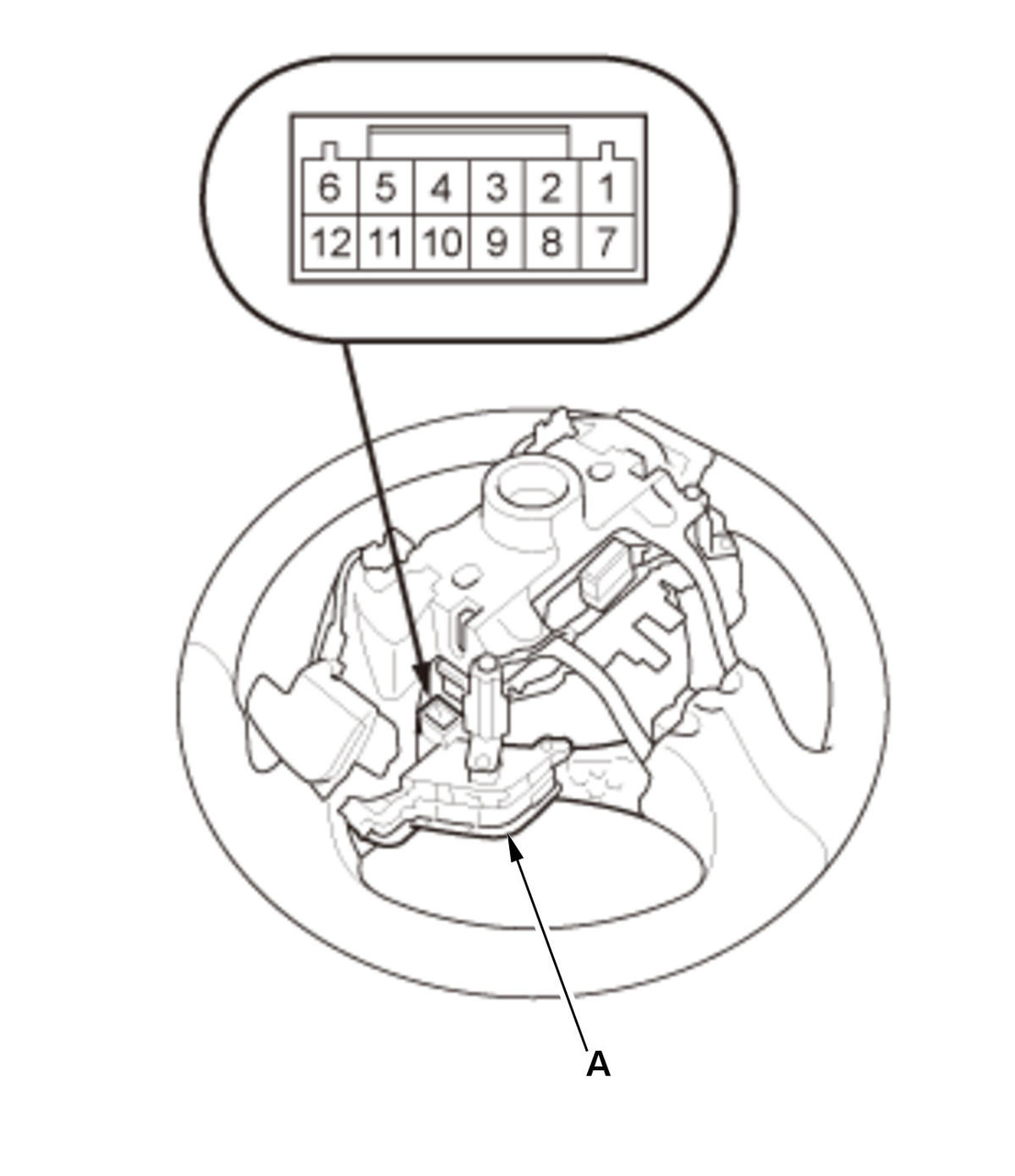

   1. Measure the resistance between terminals No. 3 and No. 8 in each switch position according to the table. 2. If the resistance is not as specified, replace the select/reset/information switch (A). 3. Check the select/reset/information switch light by connecting battery power to terminal No. 7 (or No. 1) and ground to terminal No. 2 (or No. 4). The select/reset/information switch light should come on. 4. If the select/reset/information switch light does not come on, the LED is faulty; replace the select/reset/information switch .

   Position	Resistance
   NEXT ( )	About 713 '
   SEL/RESET	About 33 '
   PREVIOUS ( )	About 363 '

5. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
