SRS (KA, Kc Models) (2016 2017 2018 2019 2020 2021 2022)

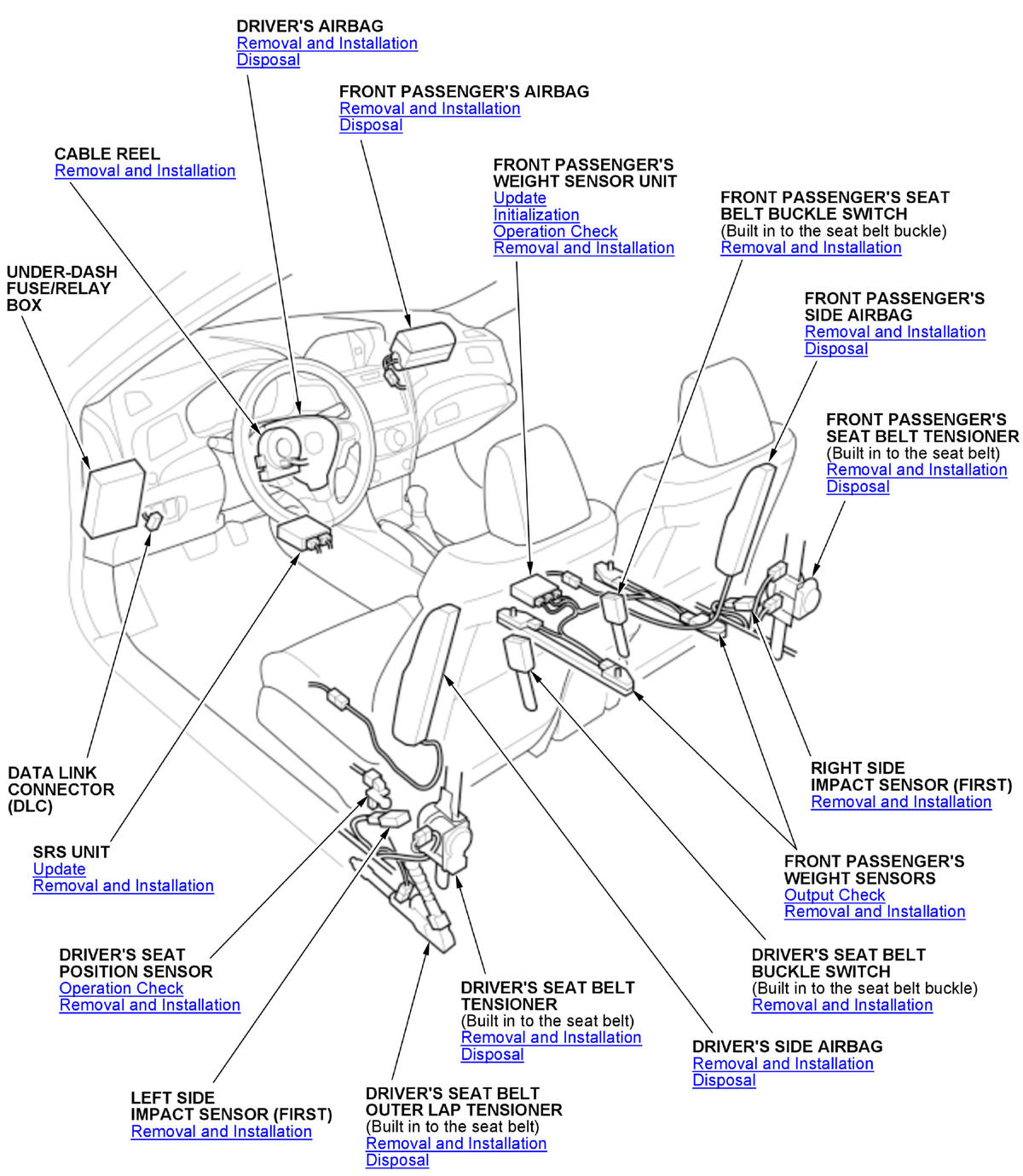

GHH475115

Courtesy of HONDA, U.S.A., INC.

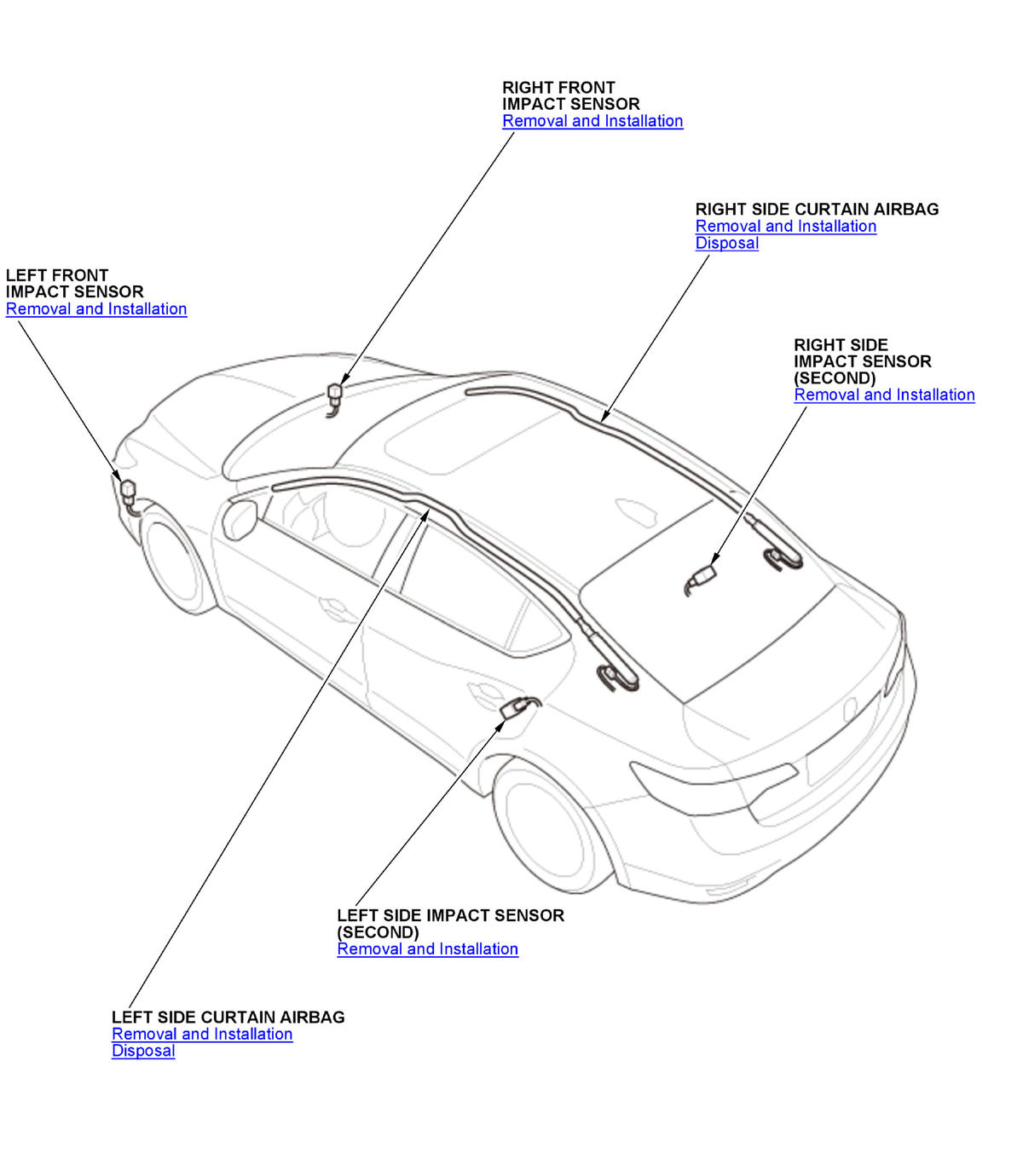

GHH475116

Courtesy of HONDA, U.S.A., INC.

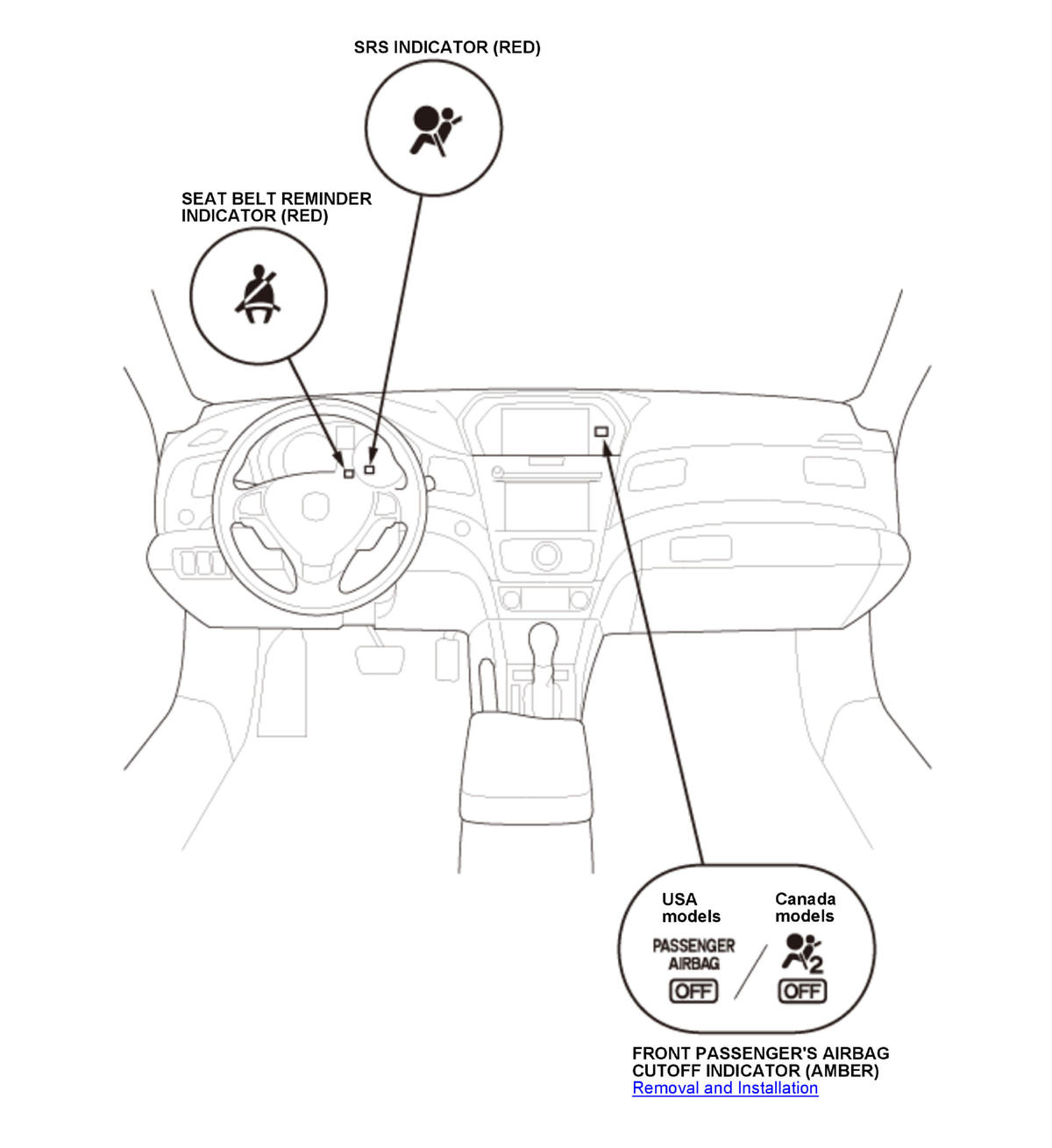

GHH475117

Courtesy of HONDA, U.S.A., INC.
