TPMS Control Unit Replacement

NOTE: Make sure the TPMS control unit mounting bracket is not bent or twisted as this may affect its communication with the initiators and the tire pressure sensors.
  1. Turn the ignition switch to LOCK (0).
  2. Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
  3. Remove the flange bolt (A), then remove the TPMS control unit (B) with the bracket (C).
    NOTE: The TPMS control unit is located over the accelerator pedal module.

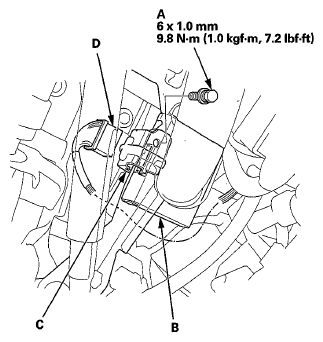

    Fig 1: Flange Bolt (A) With Torque Specifications
    G07769310Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Disconnect the TPMS control unit 20P connector (D).
  5. Remove the TPMS control unit (A) from the bracket (B).
    NOTE: To disconnect the TPMS control unit from its bracket, insert a small flat-tipped screwdriver (C) between the TPMS control unit and the bracket to release the hook (D), then slide out the TPMS control unit.
    Fig 2: Identifying TPMS Control Unit (A) And Bracket (B)
    G07769311Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Install the TPMS control unit in the reverse order of removal.
    NOTE: Make sure the TPMS control unit is properly installed. You will hear a click when the TPMS control unit is securely mounted on the bracket.
  7. Connect the HDS, and memorize the tire pressure sensor IDs (see MEMORIZING THE TIRE PRESSURE SENSOR ID  ). Do not memorize the sensor IDs automatically.
