Recirculation Control Motor Replacement

  1. Remove the glove box (see GLOVE BOX SEPARATOR REMOVAL/INSTALLATION ).
  2. Disconnect the 7P connector (A) from the recirculation control motor (B). Remove the self-tapping screws and the recirculation control motor from the blower unit.

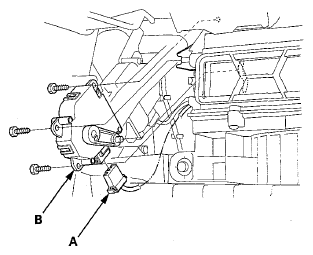

    Fig 1: Identifying 7P Connector And Recirculation Control Motor
    G07770754Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the motor in the reverse order of removal. Make sure the pin on the motor is properly engaged with the linkage. After installation, make sure the motor runs smoothly.
