Outside Air Temperature Sensor Replacement

  1. Remove the front bumper:
  2. Release the lock, then remove the outside air temperature sensor (A) from the front bumper beam. Disconnect the 2P connector (B) from the outside air temperature sensor.

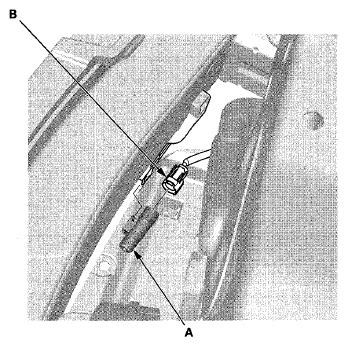

    Fig 1: Identifying Outside Air Temperature Sensor And 2P Connector
    G07770756Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the sensor in the reverse order of removal.
