Clutch Pedal Assembly Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
  2. Disconnect the clutch pedal position switch connector (A) and the clutch interlock switch connector (B).
    Fig 1: Identifying Clutch Pedal Position Switch Connector (A) And Clutch Interlock Switch Connector (B)
    G07768077Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Pry out the lock pin (C), and pull the clevis pin (D) out of the clevis.
  4. Remove the master cylinder mounting nuts (E) and the clutch pedal mounting bolt (F).
  5. Remove the clutch pedal assembly (G).
  6. Remove the clutch pedal position switch (H) and the clutch interlock switch (I).
  7. Loosely install the clutch pedal position switch (A) and the clutch interlock switch (B).
    Fig 2: Identifying Clutch Pedal Position Switch (A) And Clutch Interlock Switch (B)
    G07768078Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Install the clutch pedal assembly (A).

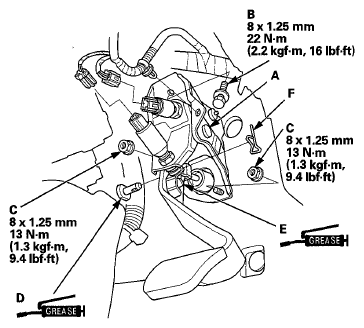

    Fig 3: Clutch Pedal Assembly (A), Clutch Pedal Mounting Bolt (B), Master Cylinder Mounting Nuts (C) And Clevis Pin (D) With Torque Specifications
    G07768079Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Install the clutch pedal mounting bolt (B) and the master cylinder mounting nuts (C).
  10. Apply multipurpose grease to the clevis pin (D), and the mating surfaces (E) of the clevis and the pedal. Slide the clevis pin into the clevis, then install the lock pin (F).
  11. Adjust the clutch pedal, the clutch pedal position switch, and the clutch interlock switch (see CLUTCH PEDAL, CLUTCH PEDAL POSITION SWITCH, AND CLUTCH INTERLOCK SWITCH ADJUSTMENT ).
    NOTE: Connect the switch connectors after adjusting them.
  12. Check the clutch operation.
  13. Install the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
