Differential Thrust Clearance Adjustment

Special Tools Required

Driver Handle, 40 mm I.D. 07746-0030100

1. Remove the transmission housing side differential oil seal (see OIL SEAL REPLACEMENT ).
2. If you removed the 80 mm shim (A) from the transmission housing, reinstall the same sized shim.
   Fig 1: Identifying Transmission Housing Shim (A)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

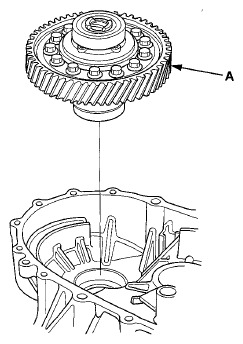

3. Install the differential assembly (A) into the clutch housing.
   Fig 2: Identifying Differential Assembly (A)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Install the transmission housing onto the clutch housing, then tighten the 8 mm flange bolts in a crisscross pattern in several steps (see step 16 on GEARSHIFT MECHANISM REPLACEMENT ).

   Specified Torque: 8 x 1.25 mm 27 IMm (2.8 kgf-m, 20 Ibf ft)

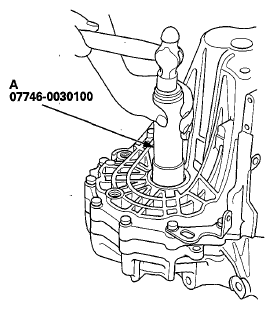

5. Use the 40 mm I.D. driver handle (A) to bottom the differential assembly in the clutch housing.
   Fig 3: Installing Transmission Housing Onto Clutch Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Measure the clearance between 80 mm shim and the bearing outer race in the transmission housing.

   Standard: 0-0.10 mm (0.00-0.0039 in)

   Fig 4: Measuring Clearance Between Shim And Bearing Outer Race In Transmission Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. If the clearance exceeds the standard, select a new 80 mm shim from the following table. If the clearance measured in step  6 is within the standard, go to step  10.
   80 MM SHIM THICKNESS CHART



   Type	Thickness
   A	1.00 mm (0.039 in)
   B	1.10 mm (0.043 in)
   C	1.20 mm (0.047 in)
   D	1.30 mm (0.051 in)
   E	1.40 mm (0.055 in)
   F	1.50 mm (0.059 in)
   G	1.60 mm (0.063 in)
   H	1.70 mm (0.067 in)
   J	1.80 mm (0.071 in)
   K	1.05 mm (0.041 in)
   L	1.15 mm (0.045 in)
   M	1.25 mm (0.049 in)
   N	1.35 mm (0.053 in)
   P	1.45 mm (0.057 in)
   Q	1.55 mm (0.061 in)
   R	1.65 mm (0.065 in)
   S	1.75 mm (0.069 in)

8. Remove the bolts and the transmission housing.
9. Replace the thrust shim selected in step  7, then recheck the clearance.
10. Install a new transmission housing side differential oil seal (see OIL SEAL REPLACEMENT ).
11. Reinstall the transmission housing.
