Oil Seal Replacement

Special Tools Required

• Driver Handle, 15 x 135L 07749-0010000
• Oil Seal Driver Attachment 07NAD-P20A100

1. Remove the oil seal (A) from the transmission housing (B).
   NOTE: Be careful not to damage the transmission housing while removing the oil seal.
   Fig 1: Removing Oil Seal (A) From Transmission Housing (B)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Remove the oil seal (A) from the clutch housing (B).
   NOTE: Be careful not to damage the clutch housing while removing the oil seal.
   Fig 2: Removing Oil Seal (A) From Clutch Housing (B)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install a new oil seal flush with the transmission housing using the 15 x 135L driver handle (A) and the oil seal driver attachment (B).

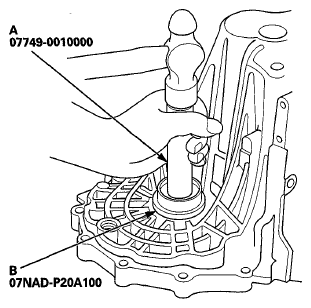

   Fig 3: Installing A New Oil Seal Flush With Transmission Housing Driver Handle (A) And Oil Seal Driver Attachment (B)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Install a new oil seal flush with the clutch housing using the 15 x 135L driver handle (A) and the oil seal driver attachment (B).

Fig 4: Installing A New Oil Seal Flush With Clutch Housing Using Driver Handle (A) And Oil Seal Driver Attachment (B)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
