Intermediate Shaft Removal

Drain the transmission fluid, then reinstall the drain plug with a new sealing washer:
- Manual transmission (see TRANSMISSION FLUID INSPECTION AND REPLACEMENT )
- Automatic transmission (see ATF REPLACEMENT )
Remove the right driveshaft (see DRIVESHAFT REMOVAL ).
M/T model: Remove the crankshaft position (CKP) sensor cover (A) from the engine block.

Fig 1: Identifying Crankshaft Position (CKP) Sensor Cover (A)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the flange bolt (A) and the two dowel bolts (B).

Fig 2: Identifying Flange Bolt (A) Two Dowel Bolts (B)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

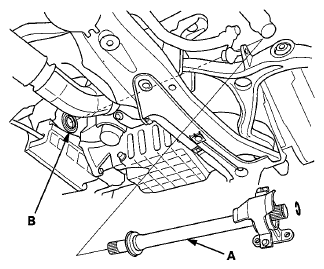

Remove the intermediate shaft (A) from the differential. Hold the intermediate shaft horizontal until it is clear of the differential to prevent damaging the oil seal (B).

Fig 3: Identifying Intermediate Shaft (A) And Oil Seal (B)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
