Intermediate Shaft Installation

Clean the areas where the intermediate shaft contacts the differential thoroughly with solvent, arid dry them with compressed air.
NOTE: Do not wash the rubber parts with solvent.
Install a new set ring (A) onto the set ring groove (B) of the intermediate shaft (C).

Fig 1: Identifying Set Ring (A) And Set Ring Groove (B)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Insert the intermediate shaft into the differential correctly.
NOTE: Insert the intermediate shaft carefully to prevent damaging the oil seal (D).
Install the flange bolt (A) and the two dowel bolts (B).

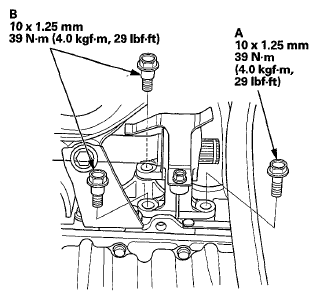

Fig 2: Flange Bolt (A) And Dowel Bolts (B) With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the right driveshaft (see DRIVESHAFT INSTALLATION ).
M/T model: Install the crankshaft position (CKP) sensor cover (A) to the engine block.

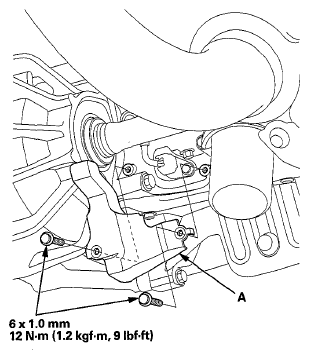

Fig 3: Crankshaft Position (CKP) Sensor Cover (A) With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Refill the transmission with the recommended transmission fluid:
- Manual transmission (see TRANSMISSION FLUID INSPECTION AND REPLACEMENT )
- Automatic transmission (see ATF REPLACEMENT )
Check the wheel alignment, and adjust it if necessary (see WHEEL ALIGNMENT ).
Test-drive the vehicle.
