Brake Pedal Replacement

  1. Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
  2. Disconnect the brake pedal position switch connector (A).

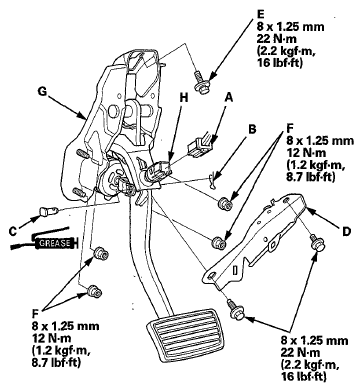

    Fig 1: Brake Pedal Position Switch Connector (A) With Torque Specifications
    G07769377Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the lock pin (B) and the clevis pin (C).
  4. Remove the brake pedal support member (D).
  5. Remove the brake pedal bracket mounting bolt (E) and nuts (F).
  6. Remove the brake pedal with bracket (G).
  7. Remove the brake pedal position switch (H) by turning it 45° counterclockwise.
  8. Install in the reverse order of removal.
  9. Adjust the brake pedal and the brake pedal position switch (see BRAKE PEDAL AND BRAKE PEDAL POSITION SWITCH ADJUSTMENT  ).
