Cowl Cover Replacement

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Acura Tool and Equipment Program; call 888-424-6857

NOTE:

Put on gloves to protect your hands.
Take care not to damage the body.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Remove these items:
- Windshield wiper arms (see WIPER MOTOR REPLACEMENT )
- Front fender trims, both sides (see FRONT FENDER TRIM REPLACEMENT )
Remove the cowl cover (A).
- 1. Detach the clips (B).
- 2. Disconnect the washer tube (C).
- 3. Detach the clips (D, E, F) by carefully pulling up the cover.
- 4. Release the hooks (G).
- 5. Release the hood hinge covers (H) from both hood hinges (I).

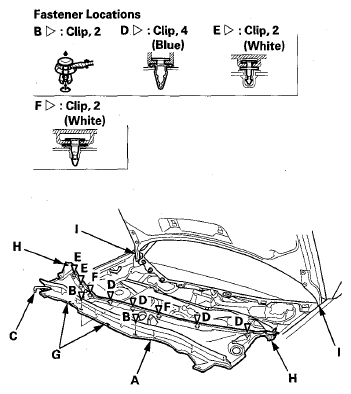

Fig 1: Identifying Cowl Cover, Washer Tube, Clips, Hooks And Hinge Covers
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the cover in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
- Make sure the hood hinge covers are seated on the cowl cover securely.
- Make sure the washer tube is connected properly.
