Rear Door Pad Replacement

NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the door.
  1. Remove these items:
  2. Detach the clips with a clip remover, then remove the door pad (A) from the door.
    Fig 1: Identifying Door Pad With Clips
    G07769562Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Pull up the door skin pad (A) to release its hooks (B) from the edge of the pad holder (C), then remove the pad.

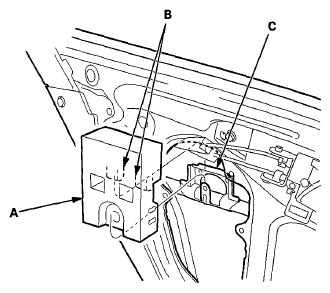

    Fig 2: Identifying Door Skin Pad, Hooks And Pad Holder
    G07769563Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the pad in the reverse order of removal, and note these items:
    • When reinstalling the door panel, make sure the plastic cover on the door is installed properly.
    • Push the clips and the hooks into place securely.
