Rear Door Outer Handle Replacement

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the door.
Sedan is shown; Sport Wagon is similar.

Remove these items:
- Door panel (see REAR DOOR PANEL REMOVAL/INSTALLATION )
- Door end trim (see REAR DOOR OUTER HANDLE REPLACEMENT )
Raise the glass fully.
Remove the plastic cover (A) as needed.
- 1. Disconnect the power door lock actuator connector (B).
- 2. Remove the rear plug cap (C).
NOTE: If the plastic cover is damaged or torn, replace it with a new one.

Fig 1: Identifying Plastic Cover, Power Door Lock Actuator Connector And Rear Plug Cap
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the door pad (see REAR DOOR PAD REPLACEMENT ).
Remove the plug cap (A).

Fig 2: Identifying Plug Cap
Courtesy of AMERICAN HONDA MOTOR CO., INC.
While holding the outer handle cover (A), remove the bolt and release the hooks (B), then remove the cover.

Fig 3: Outer Handle Cover And Hooks With Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Release the hooks (A), then remove the outer handle holder (B) from the outer handle base (C).

Fig 4: Removing Outer Handle Holder From Outer Handle Base
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull back the outer handle (A) out as shown to remove it from the door.

Fig 5: Pulling Back Outer Handle
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Release the hooks (A, B), then remove the outer handle front seal (C) and the outer handle rear seal (D).

Fig 6: Identifying Hooks, Outer Handle Front Seal And Outer Handle Rear Seal
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the outer handle base (A).
- 1. Release the rod fastener (B).
- 2. Disconnect the outer handle rod (C) with a clip remover.
- 3. Loosen the nut.
- 4. Release the hook (D), and slide the base forward to release the special bolt (E) from the door.

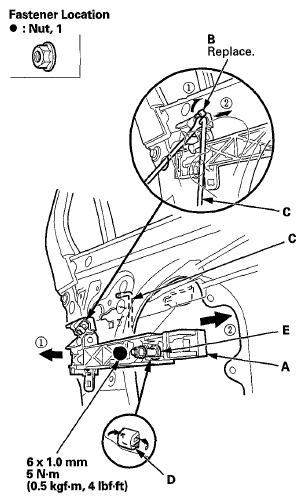

Fig 7: Removing Outer Handle Base With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the rod fastener (A) from the outer handle base (B), then replace it with a new one.

Fig 8: Identifying Rod Fastener And Outer Handle Base
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the handle in the reverse order of removal, and note these items:
- Reinstall the outer handle holder before installing the outer handle cover.
- Make sure the connector is plugged in properly, and the outer handle rod is connected securely.
- Make sure the door lock and the door handle operate properly.
- When reinstalling the door panel, make sure the plastic cover on the door is installed properly.
- Push the hooks into place securely.
