Door Position Adjustment

NOTE:
  • Check for a flush fit with the body, then check for equal gaps between the front, rear, and bottom door edges and the body. Check that the door and body edges are parallel.
  • Sedan is shown; Sport Wagon is similar.
  1. Place the vehicle on a firm, level surface when adjusting the doors.
  2. Adjust at the hinges (A):
    • Pad a floor jack (B) with shop towels (C), then use the jack to support the door while adjusting it.
    • On the front door: Remove the front inner fender (see FRONT INNER FENDER REPLACEMENT ) and the front fender fairing (see FRONT FENDER FAIRING REPLACEMENT ). Loosen the hinge mounting bolts (D) slightly, and move the door backward or forward, up or down as necessary to equalize the gaps.
    • On the rear door: Loosen the hinge mounting bolts (E) slightly, and move the door backward or forward, up or down as necessary to equalize the gaps.

    Front door

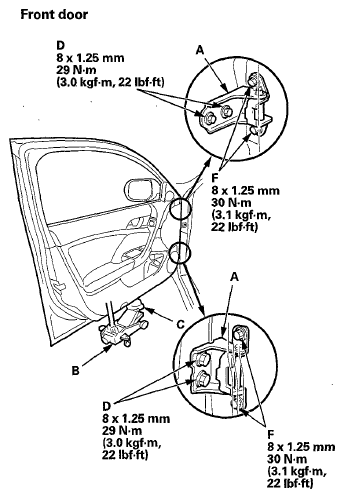

    Fig 1: Hinges, Hinge Mounting Bolts, Floor Jack And Shop Towels With Torque Specification (Front Door) With Torque Specifications
    G07769581Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Rear door

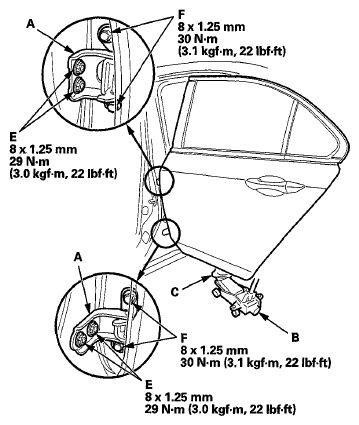

    Fig 2: Hinges, Hinge Mounting Bolts, Floor Jack And Shop Towels With Torque Specification (Rear Door) With Torque Specifications
    G07769582Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. If necessary, replace the door mounting bolts with the adjusting bolts made specifically for door adjustment, then adjust at the door: Loosen the door mounting bolts (F) slightly, and move the door up or down as necessary to equalize the gaps, and move it in or out until it's flush with the body.
    NOTE: Refer to the Parts Catalog if you need to use an adjusting bolt.
  4. Check that the door and body edges are parallel. If necessary, adjust the door cushions (A) to make the rear of the doors flush with the body.
    Fig 3: Adjusting Door Cushions
    G07769583Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Makes sure the door opens without popping or binding and latches securely without slamming. If not adjust the door striker (see DOOR STRIKER ADJUSTMENT ).
  6. Tighten the mounting bolts to the specified torque.
  7. Apply touch-up paint to the hinge mounting bolts and around the hinges.
  8. Check for water leaks (see DOOR POSITION ADJUSTMENT ).
