Rear Bumper Exhaust Pipe Trim Replacement

NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the rear bumper.
  1. Remove the rear bumper:
  2. Remove the screws, then remove the rear bumper exhaust pipe trim (A) from the rear bumper (B).

    Sedan

    Fig 1: Identifying Rear Bumper Exhaust Pipe Trim, Rear Bumper And Clips (Sedan)
    G07770129Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Sport Wagon

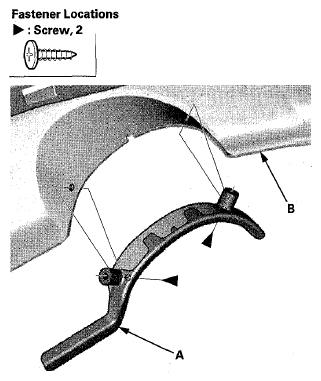

    Fig 2: Identifying Rear Bumper Exhaust Pipe Trim, Rear Bumper And Clips (Sport Wagon)
    G07770130Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the trim in the reverse order of removal.
