Front Bumper Fog Light Cover Replacement

NOTE: Take care not to scratch the front bumper.
  1. Remove the fog light (see FOG LIGHT ).
  2. Remove the screws, then remove the front bumper fog light cover (A).

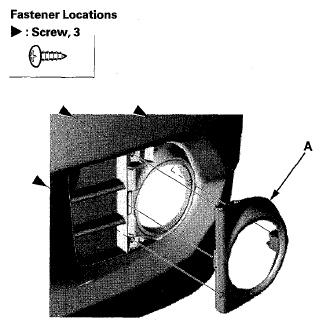

    Fig 1: Identifying Front Bumper Fog Light Cover
    G07770111Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the cover in the reverse order of removal.
