Fog Light

  1. For right side, remove the splash shield (see FRONT SPLASH SHIELD REPLACEMENT ), for left side, remove the left inner fender (see FRONT INNER FENDER REPLACEMENT ).
  2. Disconnect the 2P connector (A) from the fog light (B).

    Fog Light: 55 W

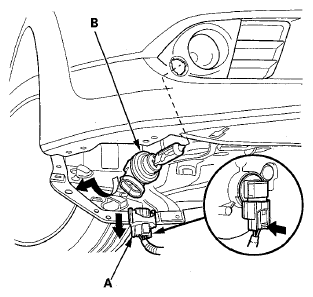

    Fig 1: Identifying 2P Connector (A) Fog Light (B)
    G07770511Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Turn the bulb socket counterclockwise to remove it from the housing.
  4. Install a new bulb in the reverse order of removal.
