Navigation Display Unit Removal/Installation

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

NOTE:

Take care not to scratch the dashboard and display visor.
When prying components, use the applicable KTC trim tool or equivalent.
Put on gloves to protect your hands.

Remove the speaker cover (see SPEAKER COVER REMOVAL/INSTALLATION ).
Carefully push out the navigation display unit (A).

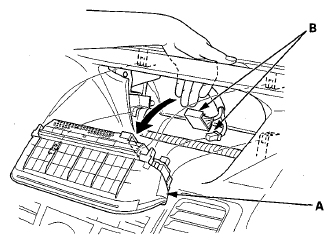

Fig 1: Pushing Out Navigation Display Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the connectors (B), and remove the navigation display unit.
Install the navigation display unit in the reverse order of removal.
