How to Check Error History (Navigation DTCs)

The Error History feature is to record intermittent navigation issues that occur while the client is using the system. Sometimes the client complaint cannot be duplicated. The error history may record the information needed to diagnose the problem. To check the error history.

1. Start the engine.
2. Press and hold the MAP/GUIDE, MENU, and CANCEL buttons for 3 seconds, or connect the SCS service connector to the navigation service check connector located by the front passenger's kick panel (see FORCED STARTING OF THE AUDIO-NAVIGATION UNIT  ).
3. When the Select Diagnosis Items menu is displayed, select Detail Information & Setting.

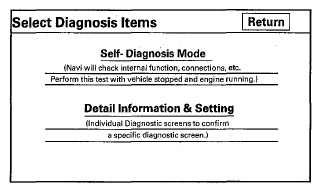

   Fig 1: Screen Display - Select Diagnosis Items

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. When the audio-navigation unit has hard error codes, the Error History icon appears yellow when the Self-Diagnosis mode (System Links) screen is displayed. When no hard error codes are stored, the icon appears gray. To view the errors with their navigation DTC, select the error history icon.

   With AcuraLink

   Fig 2: Screen Display - System Links (With AcuraLink™)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

   Without AcuraLink

   Fig 3: Screen Display - System Links (Without AcuraLink™)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Select Hard Error.
   NOTE: Soft errors are for factory use only.

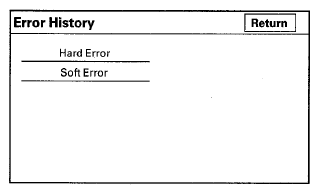

   Fig 4: Screen Display - Error History

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

   Hardware Error History

6. The Hard Error screen displays the following information for each error:
   • The navigation DTC for the error.
   • A brief description of the navigation DTC.
   • The date and time when the error occurred.
     NOTE:

     • To see additional errors/use the interface dial to select UP or DOWN.
     • Select Clear to delete the error history. The Save feature is for factory use only.
     • Write down the navigation DTCs and error history before deleting.
7. Use the navigation DTC troubleshooting to troubleshoot the error.

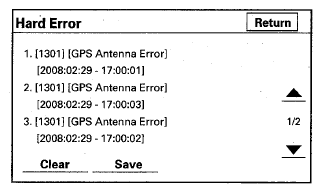

   Fig 5: Screen Display - Hard Error

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. Clear the navigation DTCs.
9. Select Return to exit the Error History.

   Software Error (Soft error) History

   Software errors are not available. They are for factory use only.
