Forced Starting of the Audio-Navigation Unit

Special Tools Required

SCS Service Connector 07PAZ-001010A

1. Turn the ignition switch to LOCK (0).
2. Remove the right side kick panel (see TRIM REMOVAL/INSTALLATION - DOOR AREAS ).
3. Connect the SCS service connector (A) to the navigation service check connector (B) located by the passenger's kick panel.

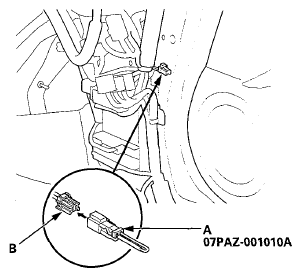

   Fig 1: Identifying SCS Service Connector And Navigation Service Check Connector

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Turn the ignition switch to ON (II).
5. Check that the diagnosis menu for the picture diagnosis starts up, and then changes to the System Links menu.
   NOTE: If the display fails to display the System Links screen, refer to no picture is displayed troubleshooting (see NO PICTURE IS DISPLAYED  ).
