Select/Reset/Information Switch Test/Replacement

NOTE: SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.

Remove the driver's airbag assembly (see REMOVAL ).

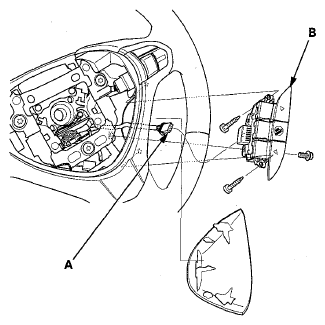

Disconnect the 7P connector (A) from the select/reset/information switch (B).

Fig 1: Identifying 7P Connector And Select/Reset/Information Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the screws and the switch.

Measure the resistance between select/reset/information switch 7P connector terminals No. 2 and No. 6 in each switch position according to the table.

Fig 2: Identifying 7P Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

SWITCH POSITION AND RESISTANCE REFERENCE CHART

Position	Resistance
	About 33 Ω
SEL/RESET	About 1, 043 Ω
	About 363 Ω

If the resistance is not as specified, replace the switch.
If the switch is OK, but there is a problem with the switch function, check the steering switches harness and cable reel.
