Dashboard Center Lower Cover Removal/Installation

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Acura Tool and Equipment Program; call 888-424-6857

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

NOTE:

Take care not to scratch the dashboard or the related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Remove the center console panel (see CENTER CONSOLE PANEL REMOVAL/INSTALLATION ).

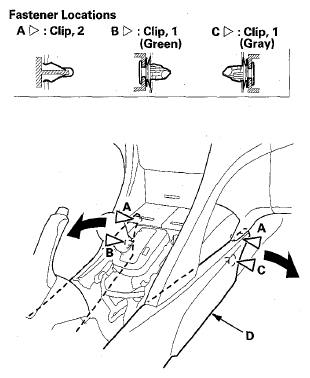

Detach the clips (A, B, C) by pulling out the front edges of the center console (D), then release both front areas of the console from the dashboard as needed.

Fig 1: Pulling Out Front Edges Of Center Console With Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the driver's dashboard center lower cover (A).
- 1. Gently pull the rear edge of the cover to detach the clips (B, C).
- 2. Pull up the rear area of the cover to release the hook (D) from the rear heater duct (E).
- 3. Pull the cover rearward to release the hook (F) from the heater unit (G).
Fig 2: Removing Driver'S Dashboard Center Lower Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the passenger's dashboard center lower cover (A).
- 1. Gently pull the edge of the cover to detach the clips (B, C).
- 2. Pull up the cover to release the hook (D) from the rear heater duct (E).
Fig 3: Identifying Passenger'S Dashboard Center Lower Cover, Clips, Hook And Rear Heater Duct
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the cover in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
