Sport Wagon

  1. Remove the tailgate lower trim panel (see REAR FLOOR LID HANDLE ).
  2. Remove the rear license trim (see REAR LICENSE TRIM REPLACEMENT - SEDAN ).
  3. Disconnect the 2P connectors (A) from the inner taillight (B).

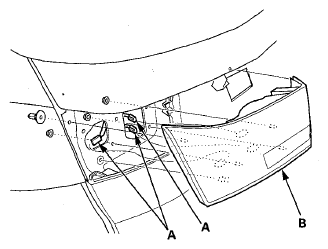

    Fig 1: Identifying 2P Connectors (A) And Inner Taillight (B)
    G07770518Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the four nuts, then remove the inner taillight.
  5. Install the light in the reverse order of removal.
