Inner Taillight (Sedan)

  1. Open the trunk lid, and remove the trunk lid trim panel (see TRUNK SIDE TRIM PANEL ).
  2. Disconnect the connector (A) from the light.

    Back-Up Light: 21 W

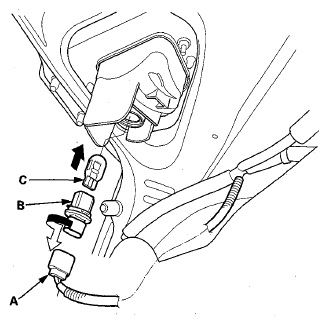

    Fig 1: Identifying Connector (A), Bulb Socket (B) And Bulb (C)
    G07770509Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Turn the bulb socket (B) 45° counterclockwise to remove the bulb (C).
  4. Install a new bulb in the reverse order of removal.
