Headlight (High Beam)

  1. Left headlight: Remove the intake air duct cover and duct (see REMOVAL ).
  2. Right headlight: Remove the coolant reservoir from its mounting bracket, and set it aside.
  3. Disconnect the 2P connector (A) from the headlight.

    Headlight (High Beam): 60 W

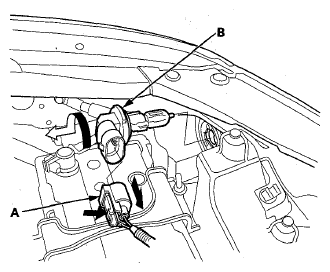

    Fig 1: Identifying 2P Connector (A) And Bulb Socket (B)
    G07770503Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Turn the bulb socket (B) 45° counterclockwise to remove the bulb.
  5. Install a new bulb in the reverse order of removal.
