Intake Manifold Removal and Installation: Removal

1. Remove the engine cover.
   Fig 1: Identifying Engine Cover And Bolts

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

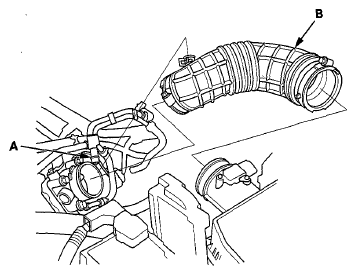

2. Disconnect the breather pipe (A), then remove the intake air duct (B).
   Fig 2: Identifying Breather Pipe And Intake Air Duct

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Disconnect the EVAP canister hose (A) and the brake booster vacuum hose (B).
   Fig 3: Identifying EVAP Canister Hose And Brake Booster Vacuum Hose

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Disconnect the water bypass hoses (C), then plug the water bypass hoses.
5. Disconnect the MAP sensor connector (A) and the throttle body connector (B), then remove the wire harness clamps (C).
   Fig 4: Identifying MAP Sensor Connector, Throttle Body Connector And Wire Harness Clamps

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Remove the intake manifold bracket.
   Fig 5: Identifying Intake Manifold Bracket Bolt And Nuts

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. Disconnect the vacuum hoses (A) from the intake manifold.
   Fig 6: Identifying Vacuum Hoses And Clamps

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. Remove the vacuum hoses from the clamps (B).
9. Remove the intake manifold mounting bolts/nuts, then remove the intake manifold from the cylinder head.
   Fig 7: Identifying Intake Manifold Mounting Bolts/Nuts

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

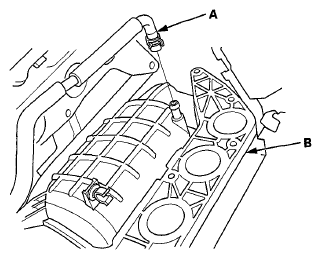

10. Disconnect the PCV hose (A) from the intake manifold (B).

Fig 8: Identifying PCV Hose And Intake Manifold

Courtesy of AMERICAN HONDA MOTOR CO., INC.
