Propeller Shaft Removal

Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
Remove exhaust pipe B and the muffler (see J37A4 ENGINE (WITH SH-AWD) ).
Place a transmission jack under the No. 2 propeller shaft.

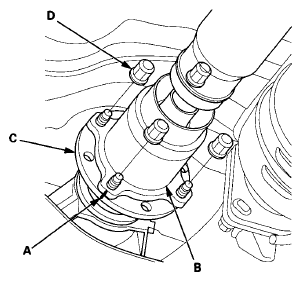

Make reference mark (A) across the No. 1 propeller shaft (B) and the transfer companion flange (C).

Fig 1: Identifying Transfer Companion Flange, Reference Mark, Propeller Shaft And Flange Nuts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the No. 1 propeller shaft flange nuts (D).
Make reference mark (A) across the No. 3 propeller shaft (B) and the rear differential companion flange (C).

Fig 2: Identifying Rear Differential Companion Flange, Reference Mark, Propeller Shaft And Flange Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the No. 3 propeller shaft flange bolts (D).
Remove the No. 1 and the No. 2 center support bearings mounting bolts.
No. 1 Support Bearing

Fig 3: Identifying No. 1 Support Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

No. 2 Support Bearing

Fig 4: Identifying No. 2 Support Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Move the propeller shaft (A) toward the rear differential, then lower the propeller shaft assembly on the jack.
NOTE: Secure the shaft to the transmission jack with a tie down to prevent it from rolling off.

Fig 5: Identifying Propeller Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.
