J37A4 engine (with SH-AWD)

NOTE: Use new gaskets and new self-locking nuts when reassembling.

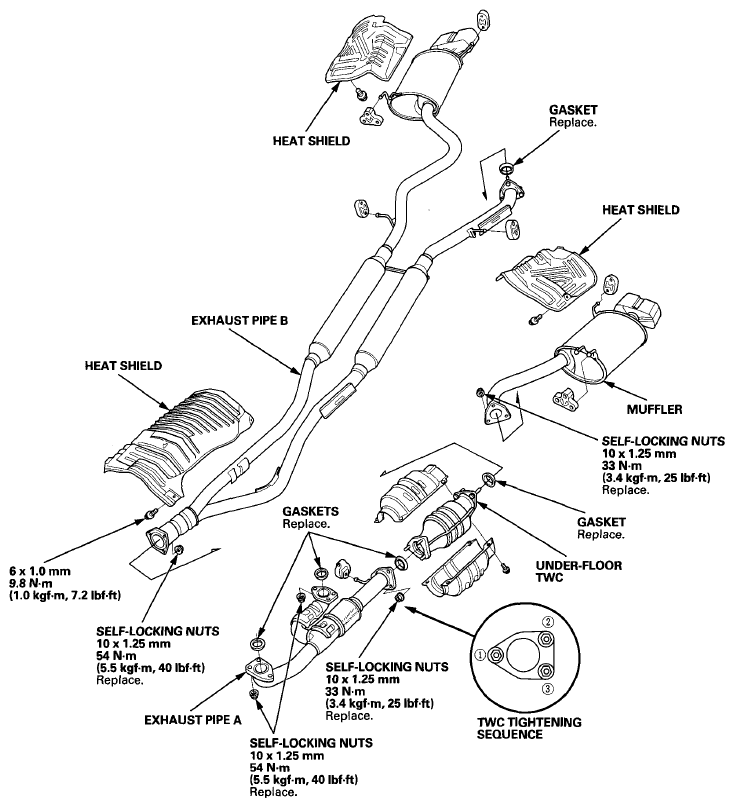

Fig 1: Exhaust Pipe And Muffler And Related Replacement Components With Torque Specifications (2 Of 2)
G08069217Courtesy of AMERICAN HONDA MOTOR CO., INC.
