Intermediate Shaft Removal

Drain the transmission fluid, then reinstall the drain plug with a new sealing washer:
- Manual transmission (see TRANSMISSION FLUID INSPECTION AND REPLACEMENT )
- Automatic transmission (see ATF REPLACEMENT )
Remove exhaust pipe A:
- Without SH-AWD (see EXHAUST PIPE AND MUFFLER REPLACEMENT )
- With SH-AWD (see J37A4 ENGINE (WITH SH-AWD) )
Remove the right front driveshaft (see FRONT DRIVESHAFT REMOVAL ).
Remove the rear warm up three way catalytic converter (rear WU-TWC) bracket (A).

Fig 1: Identifying Catalytic Converter (Rear WU-TWC) Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
M/T model: Remove the crankshaft position (CKP) sensor cover (A).

Fig 2: Identifying Crankshaft Position (CKP) Sensor Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

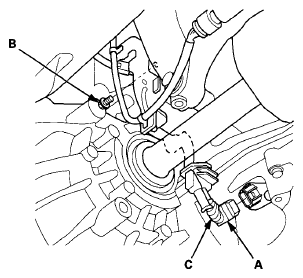

M/T model: Disconnect the CKP sensor connector (A), and remove the sensor harness clamp bracket bolt (B).

Fig 3: Identifying CKP Sensor Connector, Sensor Harness And Clamp Bracket Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.
M/T model: Swing the sensor harness (C) out of the way to prevent damaging it.
Remove the flange bolt (A) and the two dowel bolts (B).

Fig 4: Identifying Flange And Dowel Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

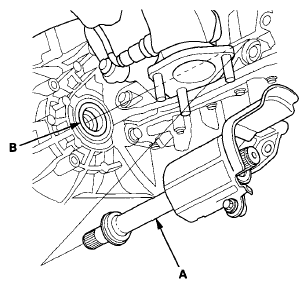

Remove the intermediate shaft (A) from the differential. Hold the intermediate shaft horizontal until it is clear of the differential to prevent damaging the oil seal (B).

Fig 5: Identifying Intermediate Shaft And Oil Seal
Courtesy of AMERICAN HONDA MOTOR CO., INC.
