VSA DTC 86-19 (With CAN Gateway (Without Auto Idle Stop System)) (2016)
DTC 86-19 : F-CAN Communication With Steering Angle Sensor Malfunction
NOTE:
- Troubleshoot any PGM-FI DTCs first.
- Before you troubleshoot, review the general troubleshooting information - Refer to:
- According to the detected DTC(s), check the voltage supply and ground circuit of the control unit which cannot communicate with the VSA modulator-control unit.
| DTC Description | DTC | Freeze Frame |
|---|---|---|
| 86-19 F-CAN Communication With Steering Angle Sensor Malfunction |
DTCs (VSA)
- DTC check (VSA modulator-control unit)
- 1. Turn the vehicle to the ON mode.
- 2. Clear the DTC with the HDS.
- 3. Turn the vehicle to the OFF (LOCK) mode.
- 4. Start the engine, and let it idle for at least 5 seconds.
- 5. Check for DTCs with the HDS.
DTC Description DTC Freeze Frame 86-11 F-CAN Bus-Off Malfunction 86-19 F-CAN Communication With Steering Angle Sensor Malfunction Is DTC 86-19 indicated?
YES
If only DTC 86-19 is indicated, go to step 2.
YES
If DTC 86-11 is also indicated, go to DTC 86-11 - Refer to:
NO
Intermittent failure, the system is OK at this time. Refer to intermittent failures troubleshooting - Refer to:
How to Troubleshoot the VSA System (2014 2015 2016) .
If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the Freeze data/on-board snapshot.
- DTC check (CAN gateway system)
- 1. Check for CAN gateway system DTCs with the HDS.
DTC Description DTC Is DTC indicated?
YES
Go to indicated DTC's troubleshooting.
NO
Go to step 3.
- F-CAN circuit communication check
- 1. Select the FUNCTION TEST in the CAN gateway with the HDS, then select the F-CAN Bus Connected Unit Check.
F-CAN Bus Connected Unit Check
Which result is indicated?
VSA modulator-control unit (Bus A) is Not Available
Go to step 4.
VSA modulator-control unit (Bus B) is Not Available
Go to step 5.
Steering angle sensor (Bus A) is Not Available
Go to step 6.
VSA modulator-control unit and steering angle sensor are Detected
Intermittent failure, the system is OK at this time. Refer to intermittent failures troubleshooting - Refer to:
How to Troubleshoot the VSA System (2014 2015 2016)
If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the Freeze data/on-board snapshot.
- Open wire check (F-CAN A_H, F-CAN A_L lines) 1
- 1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Disconnect the following connectors.

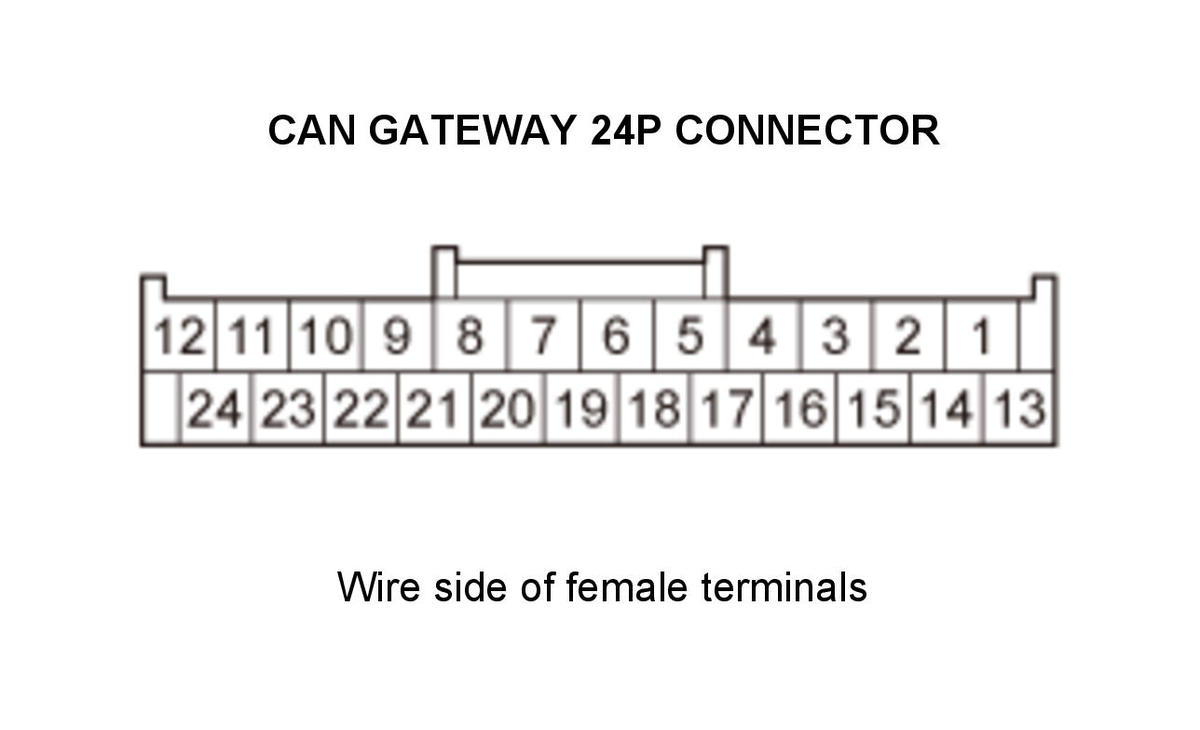

VSA modulator-control unit 38P connector CAN gateway 24P connector - 3. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode VSA modulator-control unit 38P connector: disconnected CAN gateway 24P connector: disconnected Test circuit 1 Test point 1 VSA modulator-control unit 38P connector No. 38 - Refer to:
VSA Modulator-Control Unit Connector for Inputs and Outputs (2016)Test point 2 CAN gateway 24P connector No. 14 Test circuit 2 Test point 1 VSA modulator-control unit 38P connector No. 26 - Refer to:
VSA Modulator-Control Unit Connector for Inputs and Outputs (2016)Test point 2 CAN gateway 24P connector No. 15 Is there continuity?
YES
The F-CAN A_H and F-CAN A_L wires are OK. Go to step 9.
NO
Repair an open in the wire between the VSA modulator-control unit and the CAN gateway.
- Open wire check (F-CAN B_H, F-CAN B_L lines)
- 1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Disconnect the following connectors.
VSA modulator-control unit 38P connector CAN gateway 24P connector - 3. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode VSA modulator-control unit 38P connector: disconnected CAN gateway 24P connector: disconnected Test circuit 1 Test point 1 VSA modulator-control unit 38P connector No. 31 - Refer to:
VSA Modulator-Control Unit Connector for Inputs and Outputs (2016)Test point 2 CAN gateway 24P connector No. 11 Test circuit 2 Test point 1 VSA modulator-control unit 38P connector No. 20 - Refer to:
VSA Modulator-Control Unit Connector for Inputs and Outputs (2016),Test point 2 CAN gateway 24P connector No. 10 Is there continuity?
YES
The F-CAN B_H and F-CAN B_L wires are OK. Go to step 9.
NO
Repair an open in the wire between the VSA modulator-control unit and the CAN gateway.
- Open wire check (F-CAN A_H, F-CAN A_L lines) 2
- 1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Disconnect the following connectors.

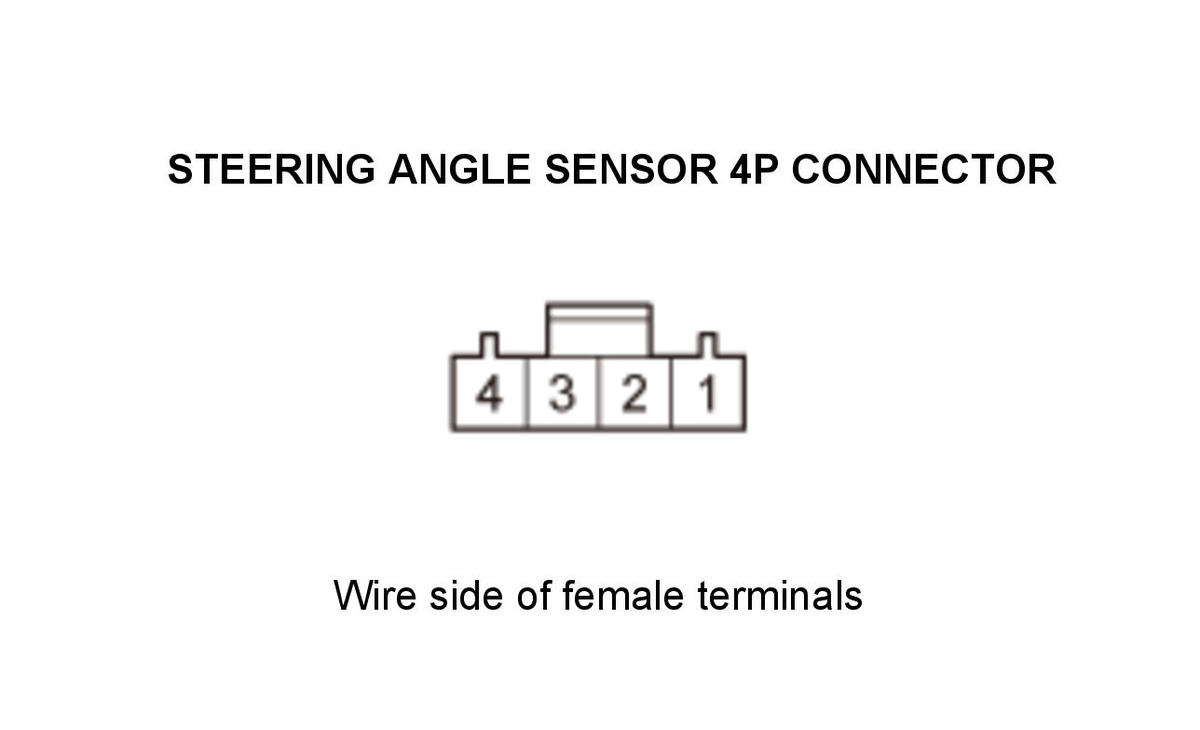

Steering angle sensor 4P connector CAN gateway 24P connector - 3. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode Steering angle sensor 4P connector: disconnected CAN gateway 24P connector: disconnected Test circuit 1 Test point 1 Steering angle sensor 4P connector No. 2 Test point 2 CAN gateway 24P connector No. 14 Test circuit 2 Test point 1 Steering angle sensor 4P connector No. 3 Test point 2 CAN gateway 24P connector No. 15 Is there continuity?
YES
The F-CAN A_H and F-CAN A_L wires are OK. Go to step 7.
NO
Repair an open in the wire between the steering angle sensor and the CAN gateway.
- Open wire check (IG1 SAFETY line)
- 1. Turn the vehicle to the ON mode.
- 2. Measure the voltage between test points 1 and 2.
Test condition Vehicle ON mode Steering angle sensor 4P connector: disconnected CAN gateway 24P connector: disconnected Test point 1 Steering angle sensor 4P connector No. 1 Test point 2 Body ground Is there battery voltage?
YES
The IG1 SAFETY wire is OK. Go to step 8.
NO
Repair an open in the wire between the No. D23 (7. 5 A) fuse in the driver's under-dash fuse/relay box and the steering angle sensor.
- Open wire check (SGND line)
- 1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Reconnect the following connectors.

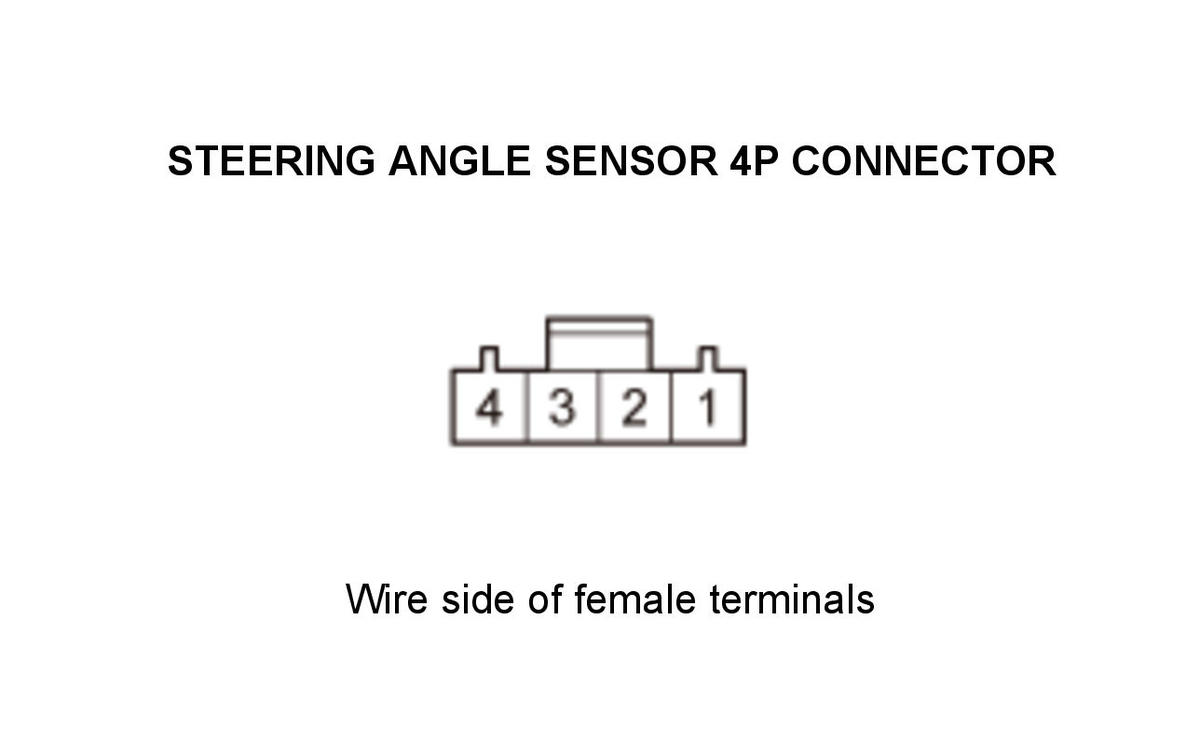

Steering angle sensor 4P connector CAN gateway 24P connector - 3. Turn the vehicle to the ON mode.
- 4. Measure the voltage between test points 1 and 2.
Test condition Vehicle ON mode Test point 1 Steering angle sensor 4P connector No. 4 Test point 2 Body ground Is there 0. 1 V or less?
YES
The SGND wire is OK. Check for loose terminals in the steering angle sensor 4P connector and the CAN gateway 24P connector. If they are OK, substitute a known-good steering angle sensor , then recheck. If DTC 86-19 is not indicated after substitution, replace the original steering angle sensor .
NO
Repair an open in the wire between the steering angle sensor and body ground (G507).
- VSA modulator-control unit check (update)
- 1. Reconnect the following connectors.
VSA modulator-control unit 38P connector CAN gateway 24P connector - 2. Update the VSA modulator-control unit if it does not have the latest software.
- 3. Turn the vehicle to the OFF (LOCK) mode.
- 4. Start the engine, and let it idle for at least 5 seconds.
- 5. Check for DTCs with the HDS.
DTC Description DTC Freeze Frame Is DTC 86-19 indicated?
YES
Check for loose terminals and poor connections in the VSA modulator-control unit 38P connector. If the VSA modulator-control unit was updated and the symptom/indication is still present, replace the VSA modulator-control unit .
NO
Troubleshooting is complete.
