BSI Radar Unit Removal/Installation

Remove the rear bumper (see REAR BUMPER REMOVAL/INSTALLATION ).
Disconnect the 6P connector (A), and detach the harness clips (B).

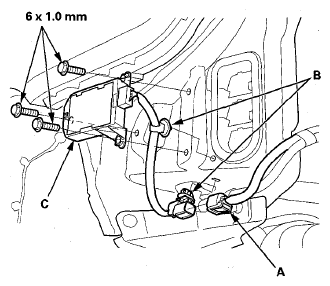

Fig 1: Identifying 6P Connector, Harness Clips And BSI Radar Unit With Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts and the BSI radar unit (C).
Clean the surface of the BSI radar unit.
Install the BSI radar unit (A) with the bolts.

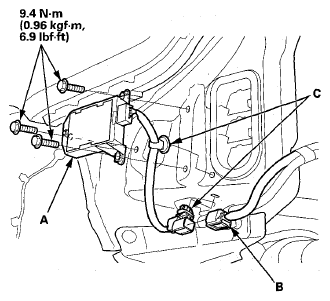

Fig 2: Identifying BSI Radar Unit, 6P Connector And Harness Clips With Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the 6P connector (B) and attach the harness clips (C).
Do the BSI radar unit aiming inspection (see BSI RADAR UNIT AIMING INSPECTION ).
