Rear Bumper Removal/Installation

NOTE:

Have an assistant help you when removing and installing the rear bumper.
Put on gloves to protect your hands.
Take care not to scratch the rear bumper or the body.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Remove the taillight (see TAILLIGHT REPLACEMENT ).
From the rear wheel arches on both sides, remove the screws securing the rear bumper (A).

Fig 1: Identifying Screws Securing Rear Bumper
Courtesy of AMERICAN HONDA MOTOR CO., INC.

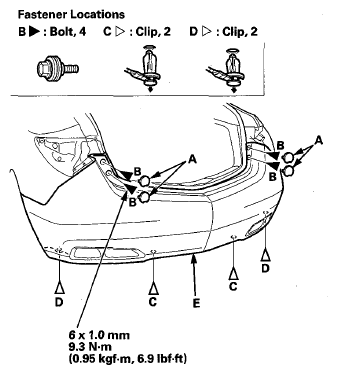

Remove the caps (A). Remove the bolts (B) and clips (C, D) securing the rear bumper (E).

Fig 2: Rear Bumper Caps, Bolts And Clips With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull on the rear bumper (A) at both wheel arch areas to release it from the hooks (B) on both side spacers (C).

Fig 3: Identifying Rear Bumper, Hooks And Side Spacers
Courtesy of AMERICAN HONDA MOTOR CO., INC.
With the help of an assistant, pull out the rear bumper (A) to release the bumper from the hooks (B) on the upper brackets (C).

Fig 4: Identifying Rear Bumper, Hooks And Upper Brackets
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If necessary, release the hooks (A), then remove the rear bumper spacer (B) from the rear bumper (C).

Fig 5: Identifying Hooks, Rear Bumper Spacer And Rear Bumper
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the bumper in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Make sure the rear bumper engages the hooks (of both the side spacers) on each side securely.
- Push the clips and the hooks into place securely.
