Moonroof Drain Channel Replacement

Moonroof Drain Channel Replacement

1. Remove the moonroof glass Service and Repair.

2. With the moonroof wrench, move both glass brackets (A) to the position where the moonroof normally tilts up, and disconnect the drain channel rods (B) on both sides.

NOTE: It the bushings are damaged or stress-whitened, replace them with new ones.






3. Slide the drain channel (A) forward.

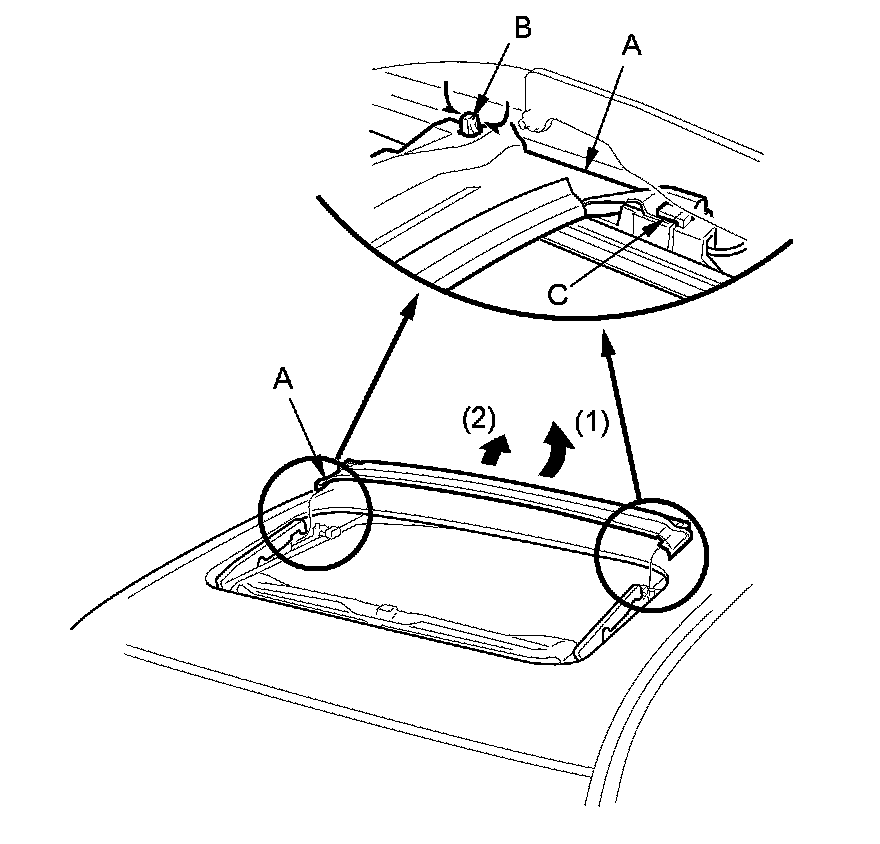

4. Pull up the rear edge of the drain channel (A) while pushing both clips (B), and release the channel from both hooks (C) of the drain channel slider by pulling it rearward.





5. Remove the drain channel.

6. Install the drain channel in the reverse order of removal, and note these items:

- Push the clip into place securely.
- Do the glass position adjustment procedure Adjustments.
- Resetting the moonroof control unit Programming and Relearning.

7. Check for water leaks. Let the water run freely from a hose without a nozzle. Do not use a high-pressure spray.
