Panoramic Glass Roof Sunshade Drive Assembly Replacement

Panoramic Glass Roof Sunshade Drive Assembly Replacement

SRS components are located in this area. Review the SRS component locations Locations, and the precautions and procedures Service and Repair before doing repairs or service.

- Put on gloves to protect your hands.
- Take care not to scratch the interior trim or the body, or tear the seat covers.

1. Remove the headliner Service and Repair.

2. Remove these items:

- Power sunshade control unit/motor Panoramic Glass Roof Motor Replacement
- Lower crossmember Panoramic Glass Roof Sunshade Frame Lower Crossmember Replacement

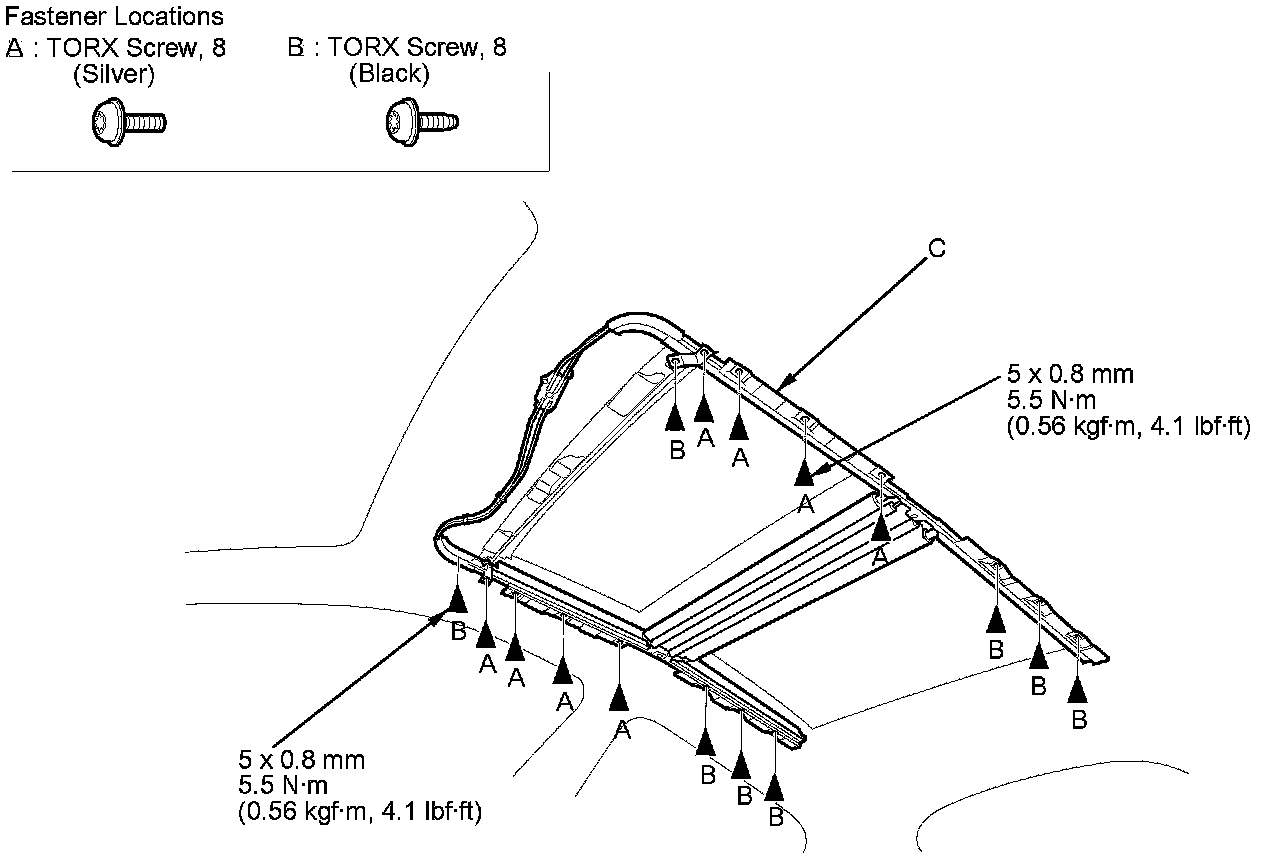

3. Remove the TORX screws (A, B) with a T25 TORX bit, then remove the sunshade track (C).






4. Install the sunshade drive assembly in the reverse order of removal.

NOTE: Confirm the sunshade track (A) location, as shown.






5. Reset the panoramic glass roof control unit Programming and Relearning.
