Transmission Range Switch Subharness (A/T)

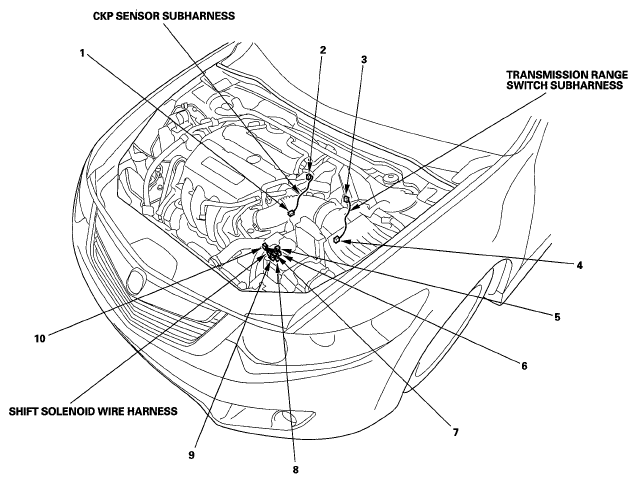

TRANSMISSION RANGE SWITCH SUBHARNESS (A/T) - CONNECTOR TO HARNESS INDEX
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Transmission range switch | 4 | 10 | Left side of transmission | ||
| C107 | 3 | 10 | Transmission housing | Engine wire harness (see ENGINE WIRE HARNESS (A/T) ) |
