Engine Wire Harness (A/T)

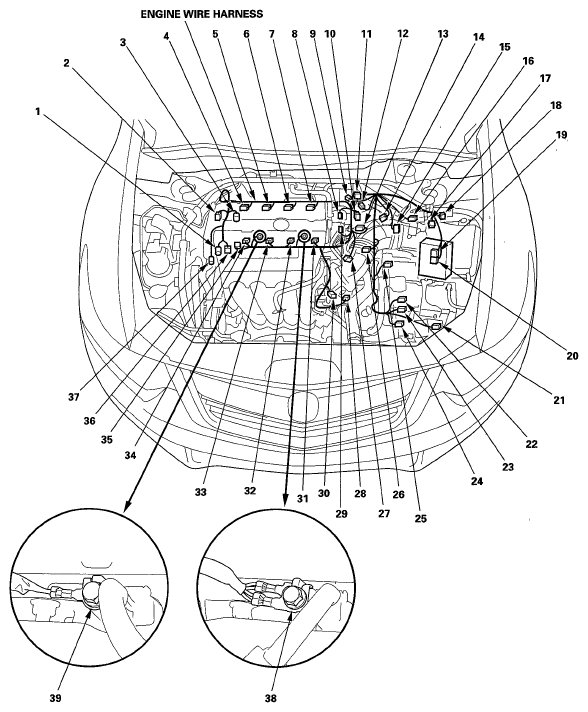

ENGINE WIRE HARNESS (A/T) - CONNECTOR TO HARNESS INDEX
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| A/T clutch pressure control solenoid valve A | 25 | 2 | Transmission housing | ||
| A/T clutch pressure control solenoid valve B | 23 | 2 | Transmission housing | ||
| A/T clutch pressure control solenoid valve C | 22 | 1 | Transmission housing | ||
| Air fuel ratio (A/F) sensor | 9 | 4 | Exhaust manifold | ||
| Camshaft position (CMP) sensor A | 29 | 3 | Middle of engine compartment | ||
| Camshaft position (CMP) sensor B | 8 | 3 | Middle of engine compartment | ||
| Engine coolant temperature (ECT) sensor 1 | 13 | 2 | Middle of engine compartment | ||
| Engine mount control/solenoid | 35 | 2 | Middle of engine compartment | ||
| EVAP canister purge valve | 10 | 2 | Middle of engine compartment | ||
| Ignition coil No 1 | 4 | 3 | Middle of engine compartment | ||
| Ignition coil No 2 | 5 | 3 | Middle of engine compartment | ||
| Ignition coil No 3 | 6 | 3 | Middle of engine compartment | ||
| Ignition coil No 4 | 7 | 3 | Middle of engine compartment | ||
| Injector No 1 | 34 | 2 | Middle of engine compartment | ||
| Injector No 2 | 33 | 2 | Middle of engine compartment | ||
| Injector No 3 | 32 | 2 | Middle of engine compartment | ||
| Injector No 4 | 31 | 2 | Middle of engine Compartment | ||
| Input shaft (mainshaft) speed sensor | 16 | 3 | Transmission housing | ||
| Manifold absolute pressure (MAP) sensor | 30 | 3 | Middle of engine compartment | ||
| Mass air flow (MAF) sensor/Intake air temperature (IAT) sensor | 17 | 5 | Middle of engine compartment | ||
| Oil pressure switch | 1 | 1 | Middle of engine compartment | ||
| Output shaft (countershaft) speed sensor | 14 | 3 | Transmission housing | ||
| PCM connector B | 20 | 49 | Left side of engine compartment | ||
| PCM connector C | 19 | 49 | Left side of engine compartment | ||
| Rocker arm oil control solenoid | 2 | 2 | Middle of engine compartment | ||
| Rocker arm oil pressure switch | 3 | 2 | Middle of engine compartment | ||
| Secondary HO2S | 36 | 4 | Exhaust manifold | ||
| Throttle position sensor/Throttle actuator | 27 | 6 | Middle of engine compartment | ||
| VTC oil control solenoid valve | 37 | 2 | Middle of engine compartment | ||
| 2nd clutch transmission fluid pressure switch | 26 | 1 | Transmission housing | ||
| 3rd clutch transmission fluid pressure switch | 21 | 1 | Transmission housing | ||
| C101 | 18 | 23 | Left side of engine compartment | Left engine compartment wire harness (Engine compartment branch) (see LEFT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) ) | |
| C102 | 28 | 10 | Left side of engine compartment | Starter subharness (see STARTER SUBHARNESS ) | |
| C103 (junction connector) | 11 | 24 | Middle of engine compartment | ||
| C104 | 12 | 3 | Middle of engine compartment | CKP sensor subharness (see CKP SENSOR SUBHARNESS ) | |
| C106 | 24 | 8 | Transmission housing | Shift solenoid wire harness (see CKP SENSOR SUBHARNESS ) | |
| C107 | 15 | 10 | Transmission housing | Transmission range switch subharness (see CKP SENSOR SUBHARNESS ) | |
| G101 | 38 | Middle of engine compartment | Body ground, via engine wire harness | ||
| G102 | 39 | Middle of engine compartment | Body ground, via engine wire harness |
