Right Wire Harness

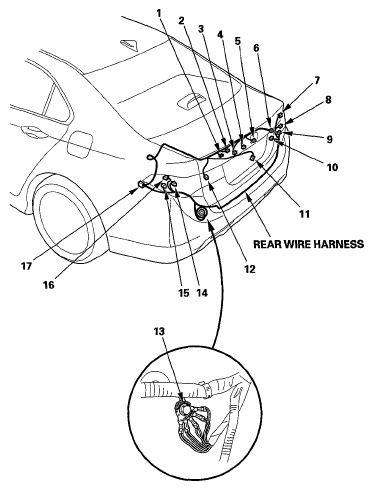

RIGHT WIRE HARNESS - CONNECTOR TO HARNESS INDEX
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
Notes |
| Diode (for trunk lid release actuator) |
2 |
2 |
Left side of trunk |
|
|
| Left back-up light |
12 |
3 |
Left side of trunk |
|
|
| Left rear license light |
3 |
2 |
Middle of trunk |
|
|
| Left rear side marker light |
16 |
2 |
Left side of trunk |
|
|
| Left rear taillight/brake light |
14 |
4 |
Left side of trunk |
|
|
| Left rear turn signal light |
15 |
3 |
Left side of trunk |
|
|
| Rearview camera |
1 |
6 |
Middle of trunk |
|
|
| Right back-up light |
6 |
3 |
Right side of trunk |
|
|
| Right rear license light |
5 |
2 |
Middle of trunk |
|
|
| Right rear side marker light |
7 |
2 |
Right side of trunk |
|
|
| Right rear taillight/brake light |
9 |
4 |
Right side of trunk |
|
|
| Right rear turn signal light |
8 |
3 |
Right side of trunk |
|
|
| Trunk lid outer handle switch |
4 |
3 |
Middle of trunk |
|
|
| Trunk lid release actuator/Trunk lid latch switch |
11 |
3 |
Middle of trunk |
|
|
| C604 |
17 |
20 |
Left side of rear |
Left side wire harness (see
LEFT SIDE WIRE HARNESS ) |
|
| C655 |
10 |
6 |
Right side of rear |
Right side wire harness (see
RIGHT SIDE WIRE HARNESS ) |
|
| G901 |
13 |
|
Left side of rear |
Body ground, via rear wire harness |
|
