Parking Brake Lever Replacement

  1. Release the parking brake lever fully
  2. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION )
  3. Disconnect the parking brake switch connector (A) from the parking brake switch (B), then remove the harness clip (C)

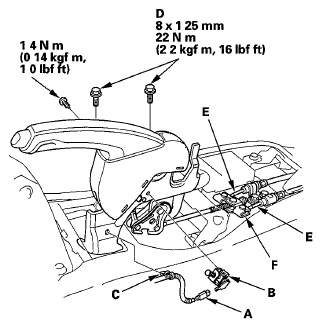

    Fig 1: Parking Brake Switch Connector, Parking Brake Switch With Mounting Bolts Torque Specifications
    G05993958Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the parking brake lever mount bolts (D)
  5. Disconnect the parking brake cables (E) from the equalizer (F)
  6. Remove the parking brake switch
  7. Install the parking brake lever in the reverse order of removal
    NOTE: Do not scratch the coating on the link cable while handling and assembling the parking brake lever
  8. Adjust the parking brake (see ADJUSTMENT )
