Emblem/Sticker Replacement

NOTE: When removing the emblems/sticker, take care not to scratch the body
  1. To remove the front "A" emblem, remove these items
  2. Clean the body surface with a shop towel dampened in isopropyl alcohol After cleaning, keep oil, grease, and water from getting on the surface
  3. Apply the emblems/sticker where shown
    • ACURA and TSX emblems Remove the adhesive backing Put the emblem with the application guide foam on the trunk lid as shown, then press the emblem into place, then remove the film and the application guide foam
    • When installing the ULEV sticker on the inside surface of the left rear door quarter glass, align the sticker with the edge of the glass mark and the edge of the black ceramic as shown, then press the sticker into place, and remove the application tape
  4. After installing the front "A" emblem, reinstall the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ), and reinstall the front grille cover (see FRONT GRILLE COVER REPLACEMENT )

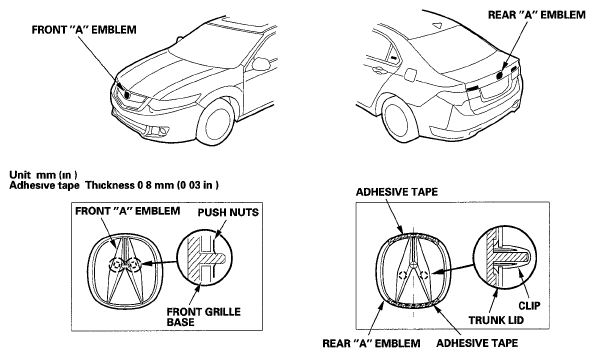

Fig 1: Identifying A Emblem Location
G05994540Courtesy of AMERICAN HONDA MOTOR CO., INC.

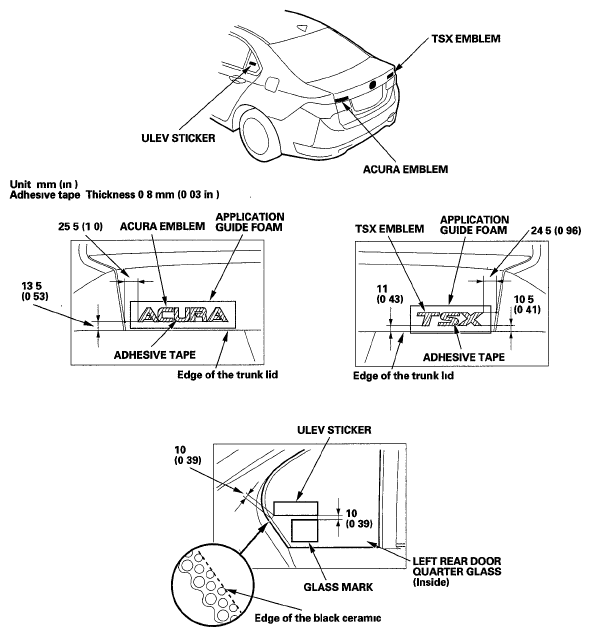

Fig 2: Identifying Adhesive Tape Location On A Emblem
G05994541Courtesy of AMERICAN HONDA MOTOR CO., INC.
