Front Grille Cover Replacement

NOTE: Take care not to scratch the front grille and the body
  1. Remove the front grille cover (A)
    1. Remove the clips
    2. Pass both hood edge cushions (B) through the holes in the cover by pulling the rear edge of the cover up, and slide the entire cover rearward to release it from the groove (C) of the front grille (D)
    3. Pass the hood latch handle (E) through the hole in the cover

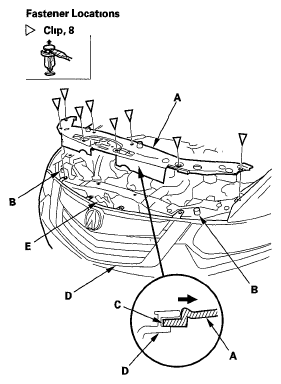

    Fig 1: Identifying Front Grille Cover
    G05994520Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the cover in the reverse order of removal, and note these items
