Cowl Cover Replacement

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the Acura Tool and Equipment Program, call 888-424-6857

1. Remove these items
   • Windshield wiper arms (see WIPER MOTOR REPLACEMENT )
   • Front grille cover (see FRONT GRILLE COVER REPLACEMENT )
   • Front fender trim, both sides (see FRONT FENDER TRIM REPLACEMENT )
2. Remove the cowl cover (A)
   1. Remove the clips (B)
   2. Disconnect the washer tube (C)
   3. Detach the clips (D, E, F) by carefully pulling the cover up
   4. Release two front hooks (G) from the body
   5. Release the hood hinge covers (H) from both hood hinges (I)

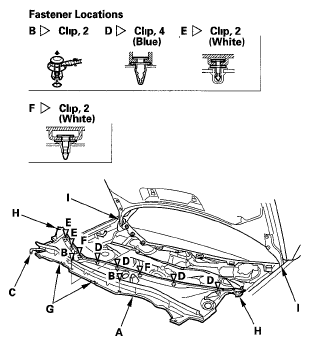

   Fig 1: Identifying Clips On Cowl Cover

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install the covers in the reverse order of removal, and note these items

• If the clips are damaged or stress-whitened, replace them with new ones
• Push the clips into place securely
• Make sure the hood hinge covers are seated on the cowl cover securely
• Make sure the washer tube is connected properly
