Fuel Filler Hose: Service and Repair

Fuel Fill Pipe Removal/Installation

1. Relieve the fuel pressure. Service and Repair

2. Drain the fuel tank. Service and Repair

3. Remove the fuel fill cap.

4. Remove the rear fender cover. Service and Repair

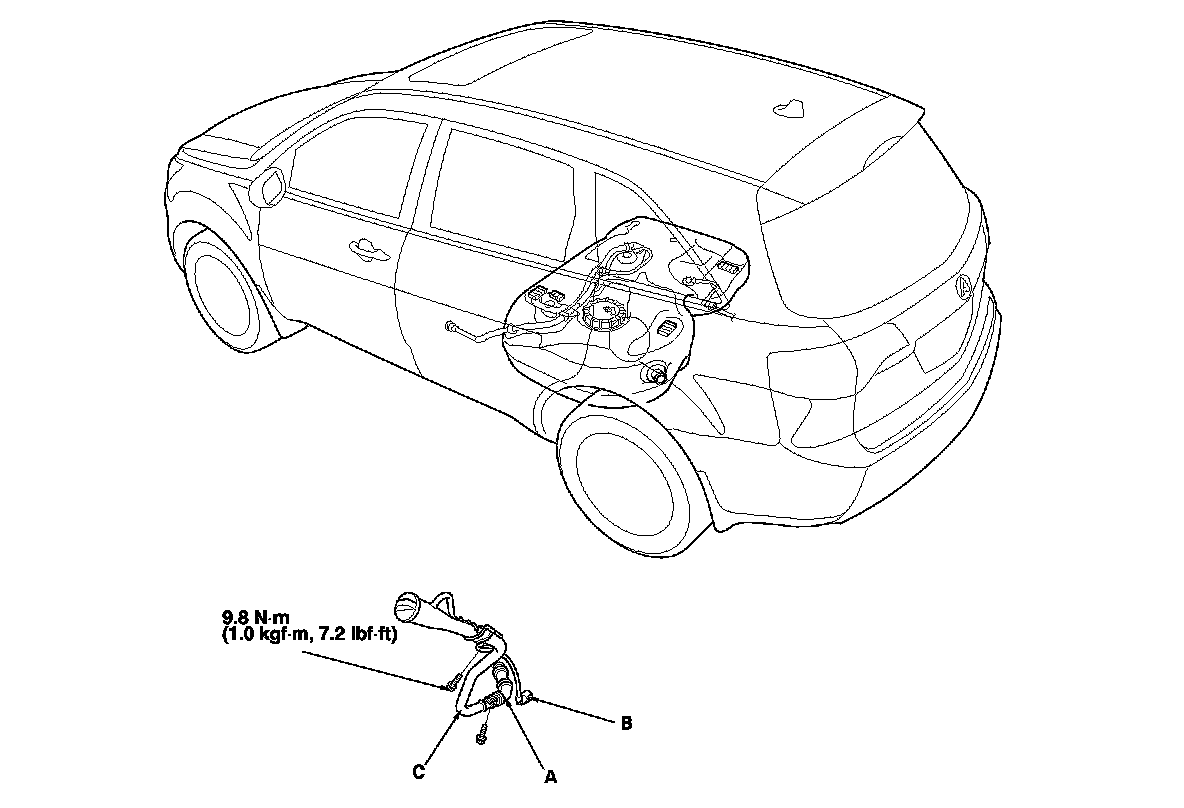

5. Disconnect the fuel fill tube (A) and the quick-connector fittings (B).

6. Remove the fuel fill pipe (C).

7. Install the parts in the reverse order of removal.
